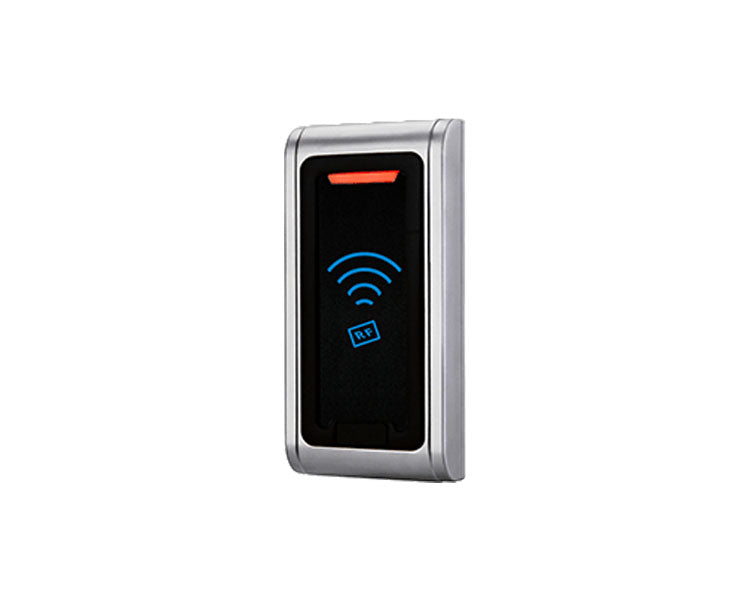

2N External Card Reader (9159030)
2N External Card Reader (9159030)
2N External Card Reader (9159030) Key Features
- Proximity reader in elegant ABS housing
- Multi-protocol (26 through 40 bits WIEGAND, CLOCK & DATA or CODIX) reader
- Protocol and features selectable via “MULTIPRO” to comply with the Host
- Compatible with all standard access control systems
- Reader electronics completely enclosed in epoxy potting material
- Configure LEDs and Buzzer to the specifications of the Host
- Industry standard 125 kHz operation
- Reads EM4002 compatible tags (cards/key fobs) with 6 to 12 cm read range
- Powered from the Host
Electrical Characteristics
- Operating voltage range of 8 to 20V DC
- Standby 10 mA current consumption
- Maximum 35 mA current consumption
- 125 kHz operating frequency
- 6 to 12 cm read range
- Visual Cues: 1 Red LED (voltage free), 1 Green LED (voltage free), 1 Yellow LED
- 1 internal buzzer
Environmental Characteristics
- Operating Temperatures -15ºC to +75ºC
- Operating Humidity 0 to 95% (non-condensing)
- Protection standard IP67
Mechanical Characteristics
- Dimensions: (mm) 90 L x 51 W x 17 H
- Cable: 2 m, 8-core (AWG24)

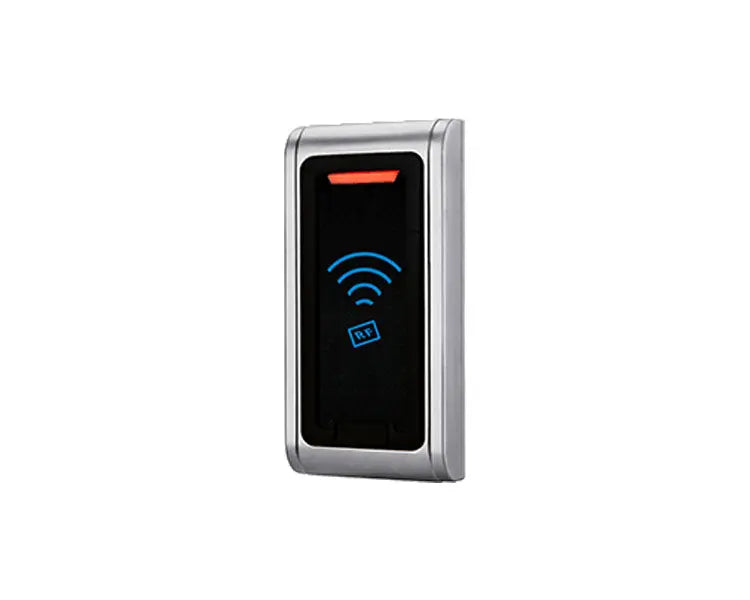

2N External Card Reader (9159030)
The 2N External Card Reader is compatible with 2N Force and Vario intercoms that feature card readers.2N External Card Reader (9159030) Key Features
- Proximity reader in elegant ABS housing
- Multi-protocol (26 through 40 bits WIEGAND, CLOCK & DATA or CODIX) reader
- Protocol and features selectable via “MULTIPRO” to comply with the Host
- Compatible with all standard access control systems
- Reader electronics completely enclosed in epoxy potting material
- Configure LEDs and Buzzer to the specifications of the Host
- Industry standard 125 kHz operation
- Reads EM4002 compatible tags (cards/key fobs) with 6 to 12 cm read range
- Powered from the Host
Electrical Characteristics
- Operating voltage range of 8 to 20V DC
- Standby 10 mA current consumption
- Maximum 35 mA current consumption
- 125 kHz operating frequency
- 6 to 12 cm read range
- Visual Cues: 1 Red LED (voltage free), 1 Green LED (voltage free), 1 Yellow LED
- 1 internal buzzer
Environmental Characteristics
- Operating Temperatures -15ºC to +75ºC
- Operating Humidity 0 to 95% (non-condensing)
- Protection standard IP67
Mechanical Characteristics
- Dimensions: (mm) 90 L x 51 W x 17 H
- Cable: 2 m, 8-core (AWG24)
