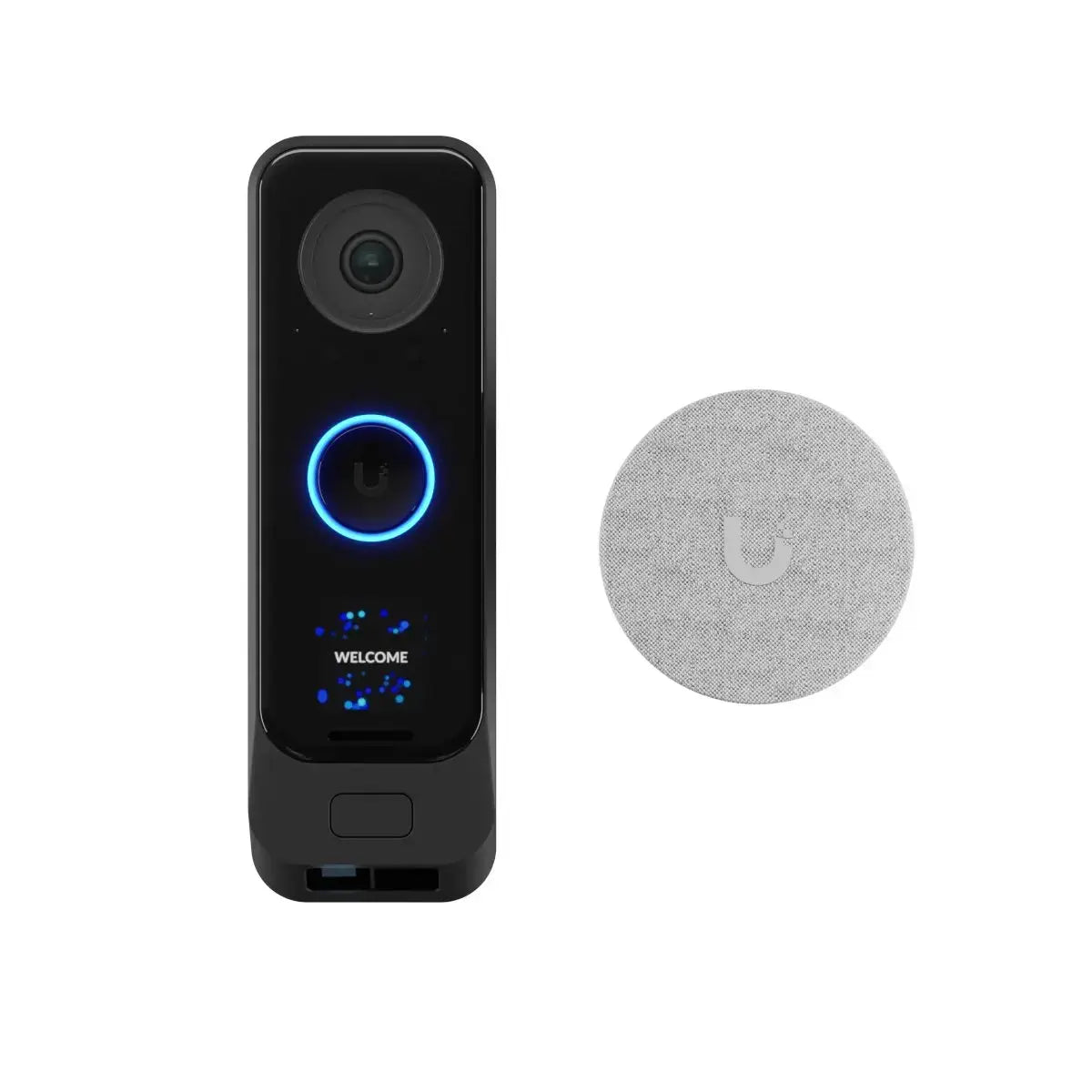

Ubiquiti UniFi G4 Doorbell Pro PoE Kit - Black
Ubiquiti UniFi G4 Doorbell Pro PoE Kit - Black
The Ubiquiti UniFi G4 Doorbell Pro PoE Kit - Black is a premium UniFi doorbell with integrated PoE and included PoE chime for plug-and-play installation.
Ubiquiti UniFi G4 Doorbell Pro PoE Kit - Black
- Improved HDR and low-light performance
- Programmable welcome display and secondary package-detection camera
- AI event detections
- Connect and power using PoE (Power over Ethernet)
- Integrated 2-way audio
- Includes PoE Chime
- Weather-resistant (outdoor covered)
Ubiquiti UniFi G4 Doorbell Pro PoE Kit - Black - Technical Specifications
Dimensions
- Device: 160.6 x 51.7 x 35.1 mm (6.3 x 2 x 1.4")
- Wall mount: 159.3 x 50.3 x 17.5 mm (6.3 x 1.9 x 0.7")
- Wedge: 161.1 x 52.1 x 25.7 mm (6.3 x 2.1 x 1")
- On-wall mount: 161.1 x 52.1 x 25.75 mm (6.3 x 2.1 x 1")
UP-Chime PoE
- Device: Ø62 x 54 mm (Ø2.5 x 2.1")
- In-wall mount: Ø89 x 63.1 mm (Ø3.5 x 2.5")
- On-wall mount: Ø62 x 20.2 mm (Ø2.5 x 0.8")
Weight
- UVC-G4 Doorbell Pro
- Device: 264 g (9.3 oz)
- Wall mount: 56 g (2 oz)
- Wedge: 33 g (1.2 oz)
- On-wall mount: 53 g (1.9 oz)
- UP-Chime PoE
- Device: 158 g (5.6 oz)
- In-wall mount: 91 g (3.2 oz)
- On-wall mount: 28 g (1 oz)
Enclosure material
- Aluminum alloy, polycarbonate
Mount material
- Wall mount: aluminum alloy
- Wedge: polycarbonate
- On-wall mount: polycarbonate
- Chime mount: polycarbonate, zinc alloy
Weatherproofing
- IPX4 (UVC-G4 Doorbell Pro)
Color
- Black
- White
Optics
- Sensor
- Main camera: 5MP CMOS
- Package camera: 8MP CMOS
- Lens
- Fixed focal length
- View angle
- Main camera: H: 138°, V: 114°, D: 155° (LDC On)
- Main camera: H: 160°, V: 117°, D: 160° (LDC Off)
- Package camera: H: 97.5°, V: 79.4°, D: 118.2°
- Night mode
- Built-in IR LED illumination and IR cut filter
Video
- Video compression
- H.264
- Resolution
- Main camera: 2MP 1600 x 1200 (4:3)
- Package camera: 2MP 1600 x 1200 (4:3)
- Max. frame rate
- 30 FPS
System
- Processor
- Quad-core Arm® Cortex®-A53 based chip
- Networking interface
- UVC-G4 Doorbell Pro: GbE RJ45 port
- UP-Chime PoE: 10/100 MbE port
- Power method
- PoE
- Supported voltage range
- UVC-G4 Doorbell Pro: 37—57V DC
- UP-Chime PoE: 44–57V DC
- Max. power consumption
- UVC-G4 Doorbell Pro: 7W
- UP-Chime PoE: 3.5W
- LED
- Link/activity
- Buttons
- (1) Ring button
- (1) Factory reset
- Operating temperature
- UVC-G4 Doorbell Pro: -30 to 40º C (-22 to 104º F)
- UP-Chime PoE: 0 to 40° C (32 to 104° F)
- Operating humidity
- UVC-G4 Doorbell Pro: 0 to 90% non-condensing
- UP-Chime PoE: 10 to 90% non-condensing
- Certifications
- CE, FCC, IC
Audio
- Microphone
- Yes (Can be disabled for the Doorbell)
- Speaker
- Yes
- Buzzer
- Yes (UP-Chime PoE)
Software
- UniFi OS application
- UniFi Protect
- Mobile app
- UniFi Protect iOS™ and Android™
Ubiquiti UniFi G4 Doorbell Pro PoE Kit - Black
