PLX Series Power Amplifiers

Available:In Stock
£842.80

PLX Series Power Amplifiers

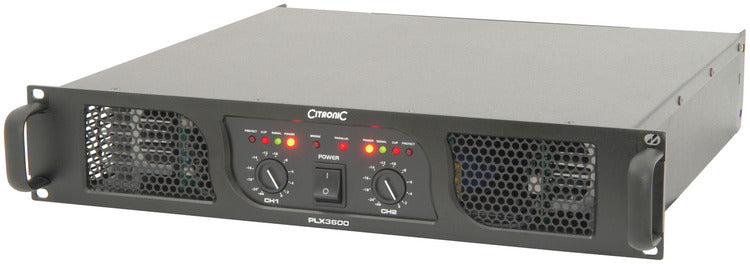

19" rackmount 2U power amplifiers with dual fan cooling and class H architecture for safe, reliable power delivery. Balanced inputs via XLR sockets, speaker outputs on 2 SPK connectors or 4mm binding posts. High power output stable down to 2 Ohms load per side can also be bridged mono to 4 Ohms. Switchable ground lift, bridge mode and clip limiter.

  • Bridge mode for high power mono operation
  • Output stable down to 2 Ohms
  • Switchable clip limiter
  • Weight26kg
  • Power rms bridge @ 8 Ohms2300W
  • Power rms bridge @ 4 Ohms2900W
  • Power rms @ 8 Ohms2 x 800W
  • Power rms @ 4 Ohms2 x 1350W
  • Power rms @ 2 Ohms2 x 1800W
  • Amplifier : constructionClass-H
  • FuseF15A (6 x 32mm)
  • Power supply230Vac, 50Hz (IEC)
  • ControlsLevel channel 1, level channel 2, ground, mode, clip limiter
  • Input impedance20k ohms
  • Frequency response5Hz - 50kHz
  • Total harmonic distortion0.05%
  • Slew rate40V/us
  • Damping factor>400
  • ProtectionShort-circuit, overload, D.C. and thermal protect
  • Dimensions482 x 453 x 88mm (2U)

Trade Information

  • SKU172.218UK
  • Barcode EAN5015972100950
  • Tariff code8518500090
  • Country of originChina (CN)
  • Packaging typeBox Label
  • Package dims125 x 525 x 560mm
  • Package quantity1 unit
  • Nett weight25.5000kg
  • Gross weight26.0000kg
  • Carton dims125 x 525 x 560mm
  • Carton quantity1 unit
  • Carton weight26.00kg
