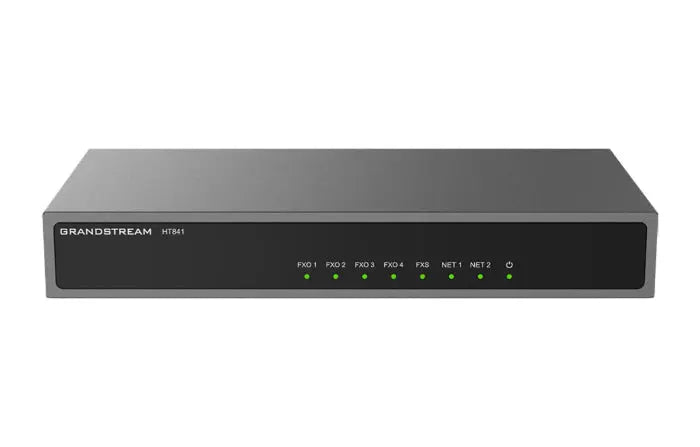

Grandstream HT841 Analog FXO Gateway
- Category:ALL PRODUCTS,Analog Adapters,Best selling products,Intel: Revolutionizing Computing Technology,New products
Grandstream HT841 Analog FXO Gateway
Introducing the Grandstream HT841 a game-changing FXO gateway that is set to redefine VoIP solutions for businesses of all sizes. This remarkable device is part of the HT841/881 FXO gateway series, designed to simplify and streamline your VoIP deployment like never before.
Grandstream HT841 Analog FXO Gateway Key Features:
- Supports 3 SIP profiles through 1 FXS port and 4 FXO ports
- Built-in performance NAT router
- Lifeline support to protect against power outages
- 3-way voice conferencing per port
The HT841 is a versatile solution for seamless connectivity, effortlessly linking multiple locations and connecting all your office devices to hosted or on-premise IP PBX networks. With both FXO and FXS ports, it enables remote calling to and from the PSTN line, while offering advanced telephony features tailored to your business needs. Its easy automated provisioning eliminates complex configurations, and it ensures superb voice quality for crystal-clear conversations. The HT841 is the ideal VoIP gateway, empowering businesses of all sizes to connect, communicate, and collaborate effectively, making VoIP deployment a breeze and heralding the future of business communication.
Grandstream HT841 Technical Specifications
Telephony Interface
- HT841: 4 RJ11 FXO ports/1 RJ11 FXS
Network Interface
- Two 10/100/1000Mbps RJ45 ports, one with 802.3af PoE-PD support
- Note: Up to 1000Mbps in Bridge mode, up to 100Mbps in NAT mode
LED Indicators
- POWER, NET1, NET2, FXS, FXO
Factory Reset Button
- Yes
Telephony Features
- Caller ID display or block, call waiting, flash, blind or attended transfer, forward, hold, do not disturb, 3-way conference
Voice Codecs
- G.711 with Annex I (PLC) and Annex II (VAD/CNG), G.723.1, G.729, G.726, iLBC, OPUS, dynamic jitter buffer, advanced line echo cancellation
Fax over IP
- T.38 compliant Group 3 Fax Relay up to 14.4kpbs and auto-switch to G.711 for Fax Pass-through
Short/Long Haul Ring Load
- 3 REN: Up to 1km on 24 AWG
Caller ID
- Bellcore Type 1 & 2, ETSI, BT, NTT, and DTMF-based CID
Disconnect Methods
- Busy Tone, Polarity Reversal/Wink, Loop Current Signaling
Network Protocols
- TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP/RARP, ICMP, DNS, DHCP, NTP, TFTP, TELNET, STUN, SIP (RFC3261), SIP over TCP/TLS, SRTP, TR-069
QoS
- Layer 2 (802.1Q VLAN, SIP/RTP 802.1p) and Layer 3 (ToS, Diffserv, MPLS)
DTMF Method
- In-audio, RFC2833 and/or SIP INFO
Provisioning and Control
- HTTP, HTTPS, TFTP, SSH, TR-069, secure and automated provisioning using AES encryption, syslog
Security
- Media SRTP
- Control TLS/SIPS/HTTPS
Management
- Syslog support, Telnet, SSH, Remote management using web browser
Physical
- Universal Power Supply
- POE Input: 4-8V / 0.5A
- DC Input: 12V/1A
Environmental
- Operational: 32°F - 104°F
- Storage: 14°F - 140°F
- Humidity: 10% - 90% Non-condensing
Dimension and Weight
- 190mm x 100mm x 28mm (L x W x D)
- Weight: 0.46KG
Compliance
- FCC/CE/RCM/IC/UKCA
Grandstream HT841 Analog FXO Gateway
Introducing the Grandstream HT841 a game-changing FXO gateway that is set to redefine VoIP solutions for businesses of all sizes. This remarkable device is part of the HT841/881 FXO gateway series, designed to simplify and streamline your VoIP deployment like never before.
Grandstream HT841 Analog FXO Gateway Key Features:
- Supports 3 SIP profiles through 1 FXS port and 4 FXO ports
- Built-in performance NAT router
- Lifeline support to protect against power outages
- 3-way voice conferencing per port
The HT841 is a versatile solution for seamless connectivity, effortlessly linking multiple locations and connecting all your office devices to hosted or on-premise IP PBX networks. With both FXO and FXS ports, it enables remote calling to and from the PSTN line, while offering advanced telephony features tailored to your business needs. Its easy automated provisioning eliminates complex configurations, and it ensures superb voice quality for crystal-clear conversations. The HT841 is the ideal VoIP gateway, empowering businesses of all sizes to connect, communicate, and collaborate effectively, making VoIP deployment a breeze and heralding the future of business communication.
Grandstream HT841 Technical Specifications
Telephony Interface
- HT841: 4 RJ11 FXO ports/1 RJ11 FXS
Network Interface
- Two 10/100/1000Mbps RJ45 ports, one with 802.3af PoE-PD support
- Note: Up to 1000Mbps in Bridge mode, up to 100Mbps in NAT mode
LED Indicators
- POWER, NET1, NET2, FXS, FXO
Factory Reset Button
- Yes
Telephony Features
- Caller ID display or block, call waiting, flash, blind or attended transfer, forward, hold, do not disturb, 3-way conference
Voice Codecs
- G.711 with Annex I (PLC) and Annex II (VAD/CNG), G.723.1, G.729, G.726, iLBC, OPUS, dynamic jitter buffer, advanced line echo cancellation
Fax over IP
- T.38 compliant Group 3 Fax Relay up to 14.4kpbs and auto-switch to G.711 for Fax Pass-through
Short/Long Haul Ring Load
- 3 REN: Up to 1km on 24 AWG
Caller ID
- Bellcore Type 1 & 2, ETSI, BT, NTT, and DTMF-based CID
Disconnect Methods
- Busy Tone, Polarity Reversal/Wink, Loop Current Signaling
Network Protocols
- TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP/RARP, ICMP, DNS, DHCP, NTP, TFTP, TELNET, STUN, SIP (RFC3261), SIP over TCP/TLS, SRTP, TR-069
QoS
- Layer 2 (802.1Q VLAN, SIP/RTP 802.1p) and Layer 3 (ToS, Diffserv, MPLS)
DTMF Method
- In-audio, RFC2833 and/or SIP INFO
Provisioning and Control
- HTTP, HTTPS, TFTP, SSH, TR-069, secure and automated provisioning using AES encryption, syslog
Security
- Media SRTP
- Control TLS/SIPS/HTTPS
Management
- Syslog support, Telnet, SSH, Remote management using web browser
Physical
- Universal Power Supply
- POE Input: 4-8V / 0.5A
- DC Input: 12V/1A
Environmental
- Operational: 32°F - 104°F
- Storage: 14°F - 140°F
- Humidity: 10% - 90% Non-condensing
Dimension and Weight
- 190mm x 100mm x 28mm (L x W x D)
- Weight: 0.46KG
Compliance
- FCC/CE/RCM/IC/UKCA
