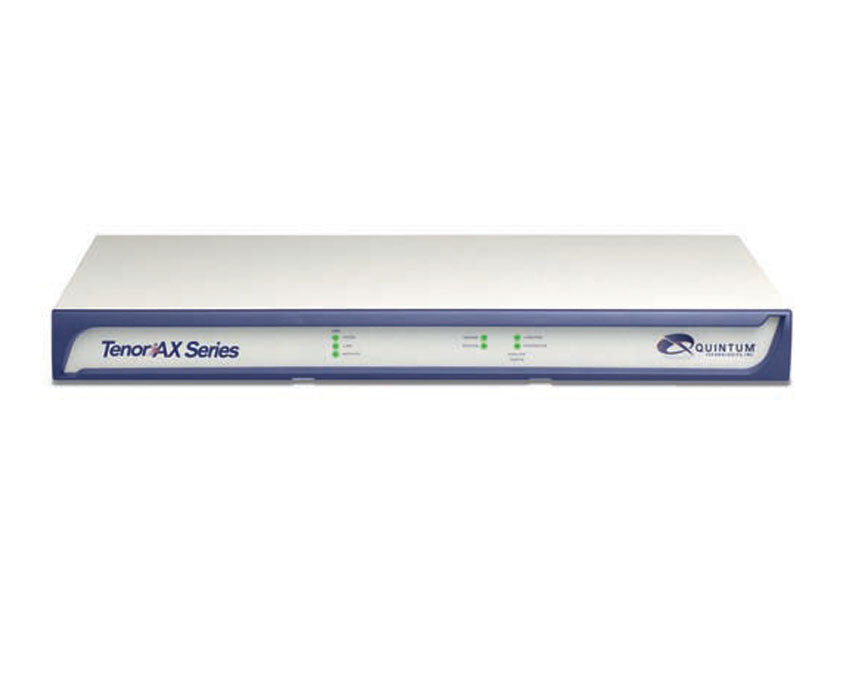

Ribbon Communications Tenor AXM2400 24 FXS / 24 FXO Gateway
Ribbon Communications (Formally Sonus Quintum) Tenor AXM2400 24 FXS / 24 FXO Gateway
The Ribbon Communications Tenor AXM2400 24 FXS / 24 FXO Gateway is designed for communications between the PBX and the VoIP network, and supports 16FXS connections to be able to provide dial tone and VoIP-enable station side devices into an IP network. The AXM2400 gives small businesses and branch offices with analog voice infrastructures an easy, cost-effective way to capitalize on the power of Voice over IP (VoIP).
Key Features
- Ports: 24 FXS / 24 FXO
- Up to 24 simultaneous voice calls
- Automatic call type detection: Voice/Modem/Fax
- LAN Interface: 1 Fast Ethernet port (10/100Base-T)
- Supports up to 60 endpoints and 1,800 calls per hour
- A complete survivable branch office solution
- Supports any-to-any connectivity between TDM (analog), H.323 and SIP devices
The Ribbon Communications AXM2400 24 FXS / 24 FXO Gateway puts enterprises and regional service providers on a smarter path to better communications: superior voice over IP sound quality, reliable security, cost-saving features and seamless integration with your existing phones, PBXs and network equipment.
The Sonus Quintum Tenor AXM2400 supports any-to-any connectivity between TDM (analog), H.323 and SIP devices, enabling enterprises and service providers to rapidly migrate analog phones onto SIP-based networks and connect with Sonus session border controllers (SBCs) for richer, SIP-based services. The AXM2400 supports up to 60 endpoints and 1,800 calls per hour, making it an ideal choice for multi-protocol communications in small enterprises, large branch offices and regional POPs (points of presence).
System Capabilities (per Switch)
- Sessions
- Up to 24 simultaneous VoIP calls
- Maximum call rate: 1,800 calls per hr.
- Up to 30 simultaneous IP to IP calls
- Business Continuity/Survivability (for AXM and AXT Series only)
- SIP outbound proxy
- Supports up to 60 SIP endpoints
- 24 FXS / FXO Ports
Management Capabilities
- Operations, Administration & Management
- Auto-provisionable
- GUI-based Configuration Manager for multiple, remote switches
- SNMPv2 Agent
- Command Line Interface (CLI) configuration via Telnet or RS-232 connection
- Call Detail Record (CDR) generation
- Authentication
- IVR/RADIUS server support for AAA with integrated multilingual IVR+
- ANI authentication (Types 1 and 2)
Media Services
- Auto codec negotiation: G.711, G.723.1, G.726, G.729a/b
- Modem support with G.711
- G.168 Echo Cancellation with standard 128 ms tail length
- Adaptive Voice Activity Detection (VAD)
- Comfort Noise Generation (CNG)
- Fax support: Group III at 2.4, 4.8, 7.2, 9.6 and 14.4 Kbps using industry standard T.38 (Super G3 compatible up to 33.6 Kbps)
- Automatic call type detection – voice, fax or modem
Signaling
- Any-to-any connectivity: SIP<->SIP,
SIP<->H.323, H.323<->H.323, TDM<->TDM,
SIP<->TDM, H.323<->TDM - Tandem/TDM switching
- Support for multiple SIP User Agents (RFC 3261)
- SIP supplementary services
- DTMF signaling via RFC 2833 or SIP Info
- SIP header manipulation: automatic appending and stripping of digits to dialed numbers
- Loop Start, Reverse Battery and Battery Disconnect
- Coding: A law, I law
Protocol Support
- DHCP
- DNS
- H.323
- SIP
- SNMP
- TCP
- UDP
Routing/Policy
- Transparent MultiPath Call Routing
- Least Cost Routing (via Sonus PSX™ Centralized Routing and Policy Server)
- Forced IP routing and IP port mapping
- Four types of configurable routing databases: Bypass Directory Numbers, Hunt Local Directory Numbers, Hop-Off Directory Numbers and Static Routes
- Multiple dial plan options: public/private dial plan, user-programmable dial plan
- Answer and disconnect supervision
- Pass-through support for calls to tollfree, local and special service numbers (e.g., emergency services)
- Type 1 Caller ID/Name Support (Telcordia, ETSI, NTT and DTMF)
- SIP REFER method
Security
- NATAccess™ network address translation firewall protection
- IP packet filtering
Quality of Service
- Adaptive jitter buffer
- Packet loss concealment
- IP Type of Service (TOS) and DiffServ support
- PacketSaver™ multiplexing technology:
Reduces bandwidth consumption up to
57% by combining voice packets from
multiple calls into a single packet
Hardware Specifications
Front Panel
- Status Indicators Front Panel LEDs
- Power
- Operational Status
- LAN Link Status
- LAN Link Rate
- LAN Activity
- Analog FXO/FXS Port Activity
Rear Panel
- One Fast Ethernet port (10/100 BASE-T)
- Standard RJ-45 LAN Interface (IEEE 802.3) for 10 BASE-T or 100 BASE-TX connections
- RS-232 connector for PC console
- DIAG for software diagnostics
- RESET for system reset
- AC power receptacle
- Analog output via Male 50-pin RJ-21 telco connectors
Chassis
- 1U, rack mount
- Inches: 17.375 Wide x 1.75 High x 10.75 Deep
- Centimeters: 44.5 Wide x 4.5 High x 27.6 Deep
AC Power Option
- 100-240 VAC, 50-60 Hz
- Max power consumption: 60W
Operating Altitude
- 10,000 ft. (3,000 m.)
Weight Maximum Fully Populated
- 10.0 lbs. (4.55 kg)
Environmental
- 5˚ to 40˚ C operating
- -10˚ to 60˚ storage
- 20 to 80% non-condensing operating humidity
Industry Standards Support
- Telco: FCC Part 68, TS-016, TBR4, TS- 038, CS03
- EMC: FCC Part 15 EN55022, EN55024, EN61000-2-3, EN61000-3-3, AS/ NZS3260
- Safety: UL60950, EN60950, AS/ NZS6095
