Robustel R2011-A-4L Cellular LTE router (B070704)
Robustel R2011-A-4L is a high-performance industrial LTE Cat.4 router with five Ethernet ports. It also offers dual standby with dual SIM cards and a range of advanced features for IoT or M2M applications. Provides reliable connectivity in IoT, automation and other wireless applications.
Robustel R2011-A-4L Key Features
- Dual-SIM redundancy for continuous cellular network connections
- 4G: LTE FDD: B1/B3/B7/B8/B20/B28 LTE TDD: B38/B40/B41
- 3G: WCDMA: B1/B8
- 2G: GSM: B3/B8
- Link Manager supports Cellular WAN, Ethernet WAN, WLAN WAN link backup and ICMP detection
- WAN – Static/DHCP Client
- RobustOS + SDK + Apps
- IPsec/OpenVPN/GRE/Wireguard VPN capabilities
- Management and maintenance via Web/RCMS Cloud
- Auto reboot via SMS/time schedule
- Dimensions: 127 x 82 x 30 mm
- Robust industrial design (9 to 36 V DC, desktop or wall mounting or DIN rail mounting)
Operating System
The R2011 runs on Robustel’s own Linux based Operating System, RobustOS. Developed entirely in-house, this gives way to a very high standard of technical support and high reliability. Robustel offers a Software Development Kit (SDK) to allow additional customization by using C, C++. It also provides rich Apps to meet fragmented IoT market demands such as:
RobustVPN - Highly flexible hosted VPN service so customers can easily enjoy a “fixed IP router”
Data-Guard - Invaluable failsafe in case of a system failure and runaway data usage
Smart Reboot - SMS tool to push roaming SIMs from a non-working to working state
Smart Roaming - Provides you with device-assisted intelligent network selection for roaming SIMs to improve performance and reduce risk.

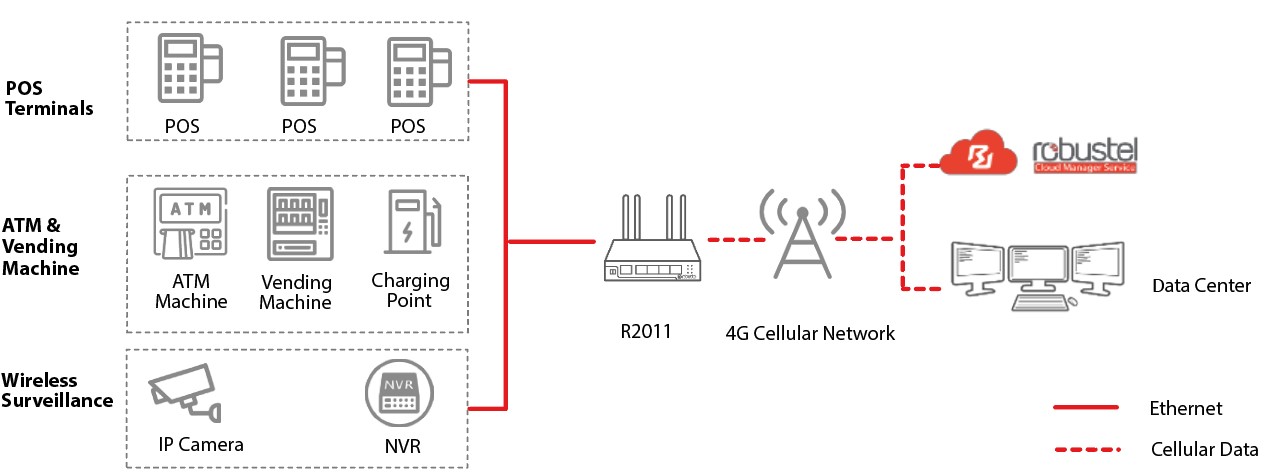

Application Scenario
Recommended Applications
- ATM, vending machines
- Oil and gas industry, WiFi at gas stations
- Branches of companies
- Wi-Fi in public transport
- Fast food restaurant
- Digital scoreboards
Package Contains
- Power supply
- 2x WiFi antenna
- 2x LTE antenna
- 3x terminal blocks
Cellular Interface
- Number of antennas 2 (MAIN + AUX) or 1 (MAIN)
- Connector SMA-K
- SIM 2 Mini SIMs (2FF)
Ethernet Interface
- Number of ports 5 x 10/100 Mbps, 5 x LAN or 4 x LAN + 1 x WAN
- WAN port Supports 802.3at PD feature (optional)
- Magnet isolation protection 1.5 KV
WiFi Interface
- Number of antennas 2 (Wi-Fi1 + Wi-Fi2)
- Connector RP-SMA-K
- Standards 802.11 b/g/n, supporting AP and Client modes
- Frequency bands 2.4 GHz
- Security WEP, WPA, WPA2
- Encryption 64/128 AES, TKIP
- Data speed 2 x 2 MIMO, 300 Mbps
Others
- Reset button 1 x RST
- LED indicators 1 x RUN, 1 x MDM, 1 x Wi-Fi, 3 x RSSI
- Built-in Watchdog, Timer
DI/DO
- Type: 1x DI + 1 x DO, wet contact
- Connector: 2 x 2-pin 3.5 mm female socket
- Isolation: 3.75KV DC (opto-isolator)
- Absolute maximum: VDC: “V+” +30V DC (DI), +30V DC (DO)
- Absolute maximum: ADC: 100 mA
- Signal definition: IN, OUT, IGND, OGND
Others
- Reset button: 1 x Tact Switch
- Expansion: 1 x USB2.0 Host; 5V/500mA
- LED indicators: 1 x RUN, 1 x Modem, 1 x USR, 1 x RSSI, 1 x NET, 1 x WIFI
- Built-in: Watchdog
Software (Basic features of RobustOS)
- Network protocols PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, ARP, BGP, RIP, OSPF, NTP, SMTP, Telnet, VLAN, SSH2, DDNS, etc
- VPN tunnel IPsec, OpenVPN, GRE, WireGuard
- Firewall DMZ, anti-DoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control
- Remote management Web, CLI, SMS
- Serial port Transparent, TCP Client/Server, UDP, Modbus RTU Gateway
SDK
- Supported programming language C, C++
- Flash available for SDK 16 MB
- RAM available for SDK 64 MB
Power Supply and Consumption
- Connector 2-pin 3.5 mm female socket
- Input voltage 9 ~ 36 V DC
- Power consumption Idle: 200 mA@12 V, Data link: 580mA (peak)@12 V
Physical Characteristics
- Ingress protection IP30
- Housing & Weight Metal, 350g
- Dimensions 127 x 82 x 30 mm
- Installations Desktop, wall mounting and 35 mm DIN rail mounting
- Operating temperature -35 ~ +75℃
- Storage temperature -40 ~ +85℃
- Relative humidity 5% ~ 95%
Approvals
- Environmental ROHS 2.0*
- EMI EN 55032 Conducted Emission class B, EN 55032 Radiated Emission class B
- EMS IEC 61000-4-2 (ESD) Level 4, IEC 61000-4-3 (RS) Level 2, IEC 61000-4-4 (EFT) Level 2, IEC 61000-4-5 (Surge) Level 2, IEC 61000-4-6 (CS) Level 2, IEC 61000-4-11 (DIP)
