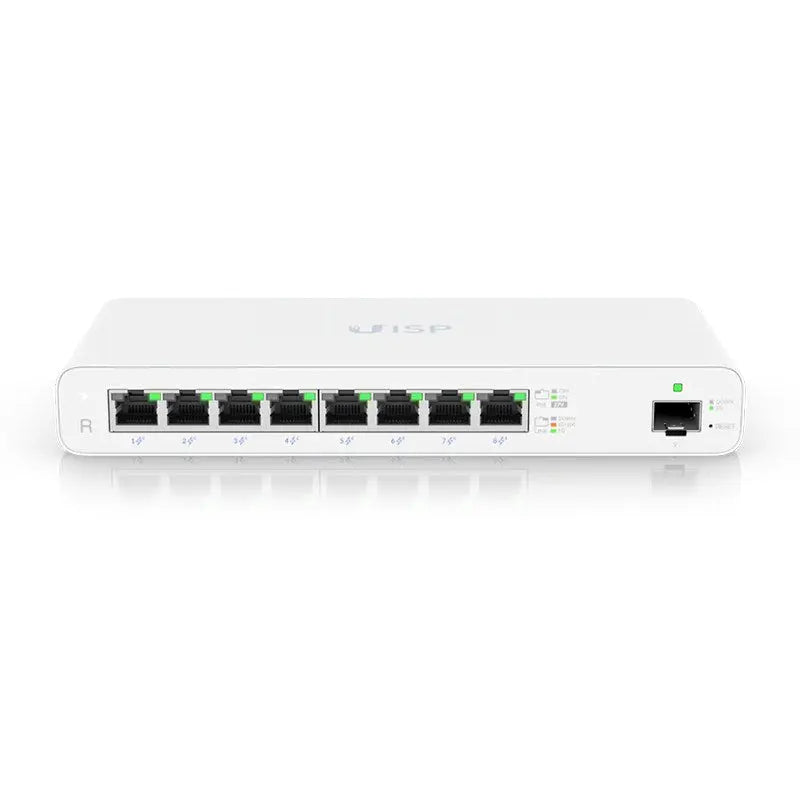

Ubiquiti UISP Gigabit PoE Router for MicroPoP Applications (UISP-R)
Ubiquiti UISP Gigabit PoE Router for MicroPoP Applications (UISP-R)
The UISP Router is a fanless PoE router with (8) GbE RJ45 ports and (1) 1G SFP port for an additional fibre uplink option, making it ideal for wireless ISP (WISP) deployments. The Router is a cost-effective routing solution for WISPs looking to deliver Gigabit wireless speeds to their clients rapidly and affordably. The UISP Router provides significant power to every radio in your service network thanks to its large 110W total PoE supply and is controlled by the UISP application, which is a centralised platform for monitoring and managing all of your UISP devices.
Ubiquiti UISP Router Key Features
- (8) GbE RJ45 ports with 27V passive PoE that support 2-pair and 4-pair modes
- (1) 1G SFP port
- 110W PoE supply when powered with the included AC/DC adapter
- Fanless, thermal cooling for silent operation
- Wall-mountable (kit included)
- Easy, Bluetooth-powered setup via the UISP Mobile app
Mechanical
- Dimensions: 210.4 x 95 x 29 mm (8.28 x 3.74 x 1.14")
- Weight: 600 g (1.32 lb)
- Enclosure material: Polycarbonate
Hardware
- Networking interface: (8) 10/1001000 MbE RJ45 ports, (1) 1G SFP port
- Management interface: Ethernet in-band
- Bluetooth: BLE
- Processor: Dual-core 880 MHz, MIPS1004Kc
- Memory: 512 MB DDR3
- Onboard flash storage: 512 MB NAND
- Power method: External AC/DC adapter
- Power supply: 27VDC, 4.4A power adapter (included)
- Supported voltage range: 24 - 28VDC
- Max. power consumption: 10W (excludes PoE output)
- ESD/EMP protection: Air: ± 15 kV, contact: ± 8 kV
- Operating temperature: -10 to 50° C (14 to 122° F)
- Operating humidity: 5 to 95% non-condensing
- Certifications: CE, FCC, IC
PoE
- PoE interface: (8) 27V passive PoE: 2-pair (pins 4, 5+/7, 8-) or 4-pair (pins 1, 2, 4, 5+/3, 6, 7, 8-)
- Max. Passive PoE wattage per port: 30W/27VDC
- Passive PoE voltage range: 27VDC
LEDs
- System Status
- RJ45 data ports: PoE Speed/link/activity
- SFP data port: Link/activity
Ubiquiti UISP Gigabit PoE Router for MicroPoP Applications (UISP-R)
The UISP Router is a fanless PoE router with (8) GbE RJ45 ports and (1) 1G SFP port for an additional fibre uplink option, making it ideal for wireless ISP (WISP) deployments. The Router is a cost-effective routing solution for WISPs looking to deliver Gigabit wireless speeds to their clients rapidly and affordably. The UISP Router provides significant power to every radio in your service network thanks to its large 110W total PoE supply and is controlled by the UISP application, which is a centralised platform for monitoring and managing all of your UISP devices.
Ubiquiti UISP Router Key Features
- (8) GbE RJ45 ports with 27V passive PoE that support 2-pair and 4-pair modes
- (1) 1G SFP port
- 110W PoE supply when powered with the included AC/DC adapter
- Fanless, thermal cooling for silent operation
- Wall-mountable (kit included)
- Easy, Bluetooth-powered setup via the UISP Mobile app
Mechanical
- Dimensions: 210.4 x 95 x 29 mm (8.28 x 3.74 x 1.14")
- Weight: 600 g (1.32 lb)
- Enclosure material: Polycarbonate
Hardware
- Networking interface: (8) 10/1001000 MbE RJ45 ports, (1) 1G SFP port
- Management interface: Ethernet in-band
- Bluetooth: BLE
- Processor: Dual-core 880 MHz, MIPS1004Kc
- Memory: 512 MB DDR3
- Onboard flash storage: 512 MB NAND
- Power method: External AC/DC adapter
- Power supply: 27VDC, 4.4A power adapter (included)
- Supported voltage range: 24 - 28VDC
- Max. power consumption: 10W (excludes PoE output)
- ESD/EMP protection: Air: ± 15 kV, contact: ± 8 kV
- Operating temperature: -10 to 50° C (14 to 122° F)
- Operating humidity: 5 to 95% non-condensing
- Certifications: CE, FCC, IC
PoE
- PoE interface: (8) 27V passive PoE: 2-pair (pins 4, 5+/7, 8-) or 4-pair (pins 1, 2, 4, 5+/3, 6, 7, 8-)
- Max. Passive PoE wattage per port: 30W/27VDC
- Passive PoE voltage range: 27VDC
LEDs
- System Status
- RJ45 data ports: PoE Speed/link/activity
- SFP data port: Link/activity
