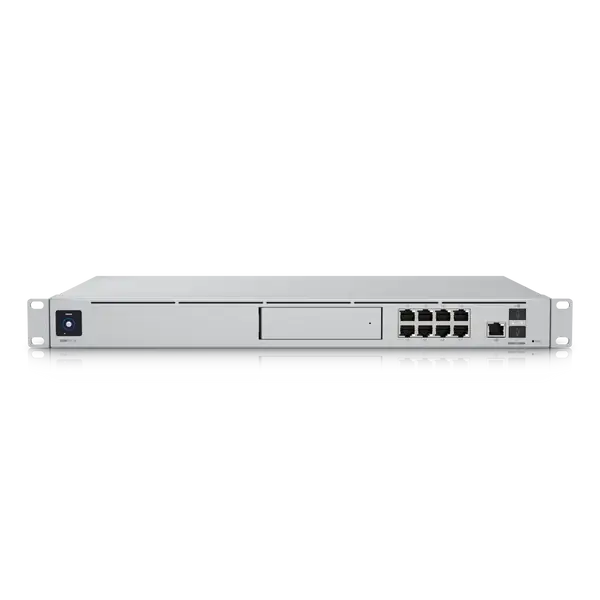

Ubiquiti UniFi Dream Machine Special Edition (UDM-SE)
- Category:ALL PRODUCTS,Best selling products,Intel: Revolutionizing Computing Technology,Network Switches,New products,Ubiquiti,Ubiquiti Switches
Ubiquiti UniFi Dream Machine Special Edition (UDM-SE)
The Ubiquiti UniFi Dream Machine Special Edition is an enterprise-grade UniFi OS Console capable of helping home and business owners alike seamlessly scale and manage their networks with high-speed, dual-WAN connectivity (10G SFP+ and 2.5GbE RJ45 ports), a Gigabit, PoE switch, and a network video recorder (NVR) with 128 GB of internal storage.
UDM-SE Key Features:
- Dual-WAN connectivity
- 10G SFP+ and 2.5GbE RJ45 ports
- Gigabit, PoE switch
- Network video recorder (NVR)
- Powered by UniFi OS
- Integrated Bluetooth radio
Powered by UniFi OS, the UDM SE gives you full control of all your UniFi devices, including access points, Protect cameras, Talk phones, and Access readers. It's also a future-proof console since it will be able to run all upcoming UniFi OS applications. Engineered for end-to-end simplicity, the UDM SE features an integrated Bluetooth radio that streamlines the initial setup and configuration process, which can be completed in minutes with the UniFi Network application (web or mobile).
Mechanical
- Dimensions 442.4 x 43.7 x 285.6 mm (17.42 x 1.72 x 11.24")
- Weight 4.95 kg (10.91 lb)
- Enclosure materials Aluminium CNC, SGCC steel
- Mount material SGCC steel rack mount
Hardware
- Processor Quad-Core ARM® Cortex®-A57 at 1.7 GHz
- System memory 4 GB DDR4
- On-board storage 16 GB eMMCIntegrated 128 GB SSD
- IDS/IPS throughput 3.5 Gbps**Measured with iPerf3
- Max. power consumption (excluding PoE output) 50W
- Power method (1) Universal AC input, 100-240VAC, 4.4A Max, 50/60 Hz(1) USP-RPS DC input, 52VDC, 3.94A
- Power supply AC/DC, Internal, 240W
- Supported voltage range 100 to 240VAC
- Management interfaces EthernetBluetooth
- Networking interfaces (1) WAN: 2.5 GbE RJ45 port(8) LAN: 1 GbE RJ45 ports
- SFP+ interfaces (1) WAN: 10G SFP+(1) LAN: 10G SFP+
- PoE interfaces (2) PoE+ IEEE 802.3at (pair A 1, 2+; 3, 6-)(6) PoE IEEE 802.3af (pair A 1, 2+; 3, 6-)
- Max. PoE wattage per port by PSE 802.3af 15.4W
- Max. PoE wattage per port by PSE 802.3at 30W
- Voltage range 802.3af mode 44 to 57V
- Voltage range 802.3at mode 50 to 57V
- ESD/EMP protection Air: ± 15 kV, contact: ± 8 kV
- LCM display (1) 1.3" touchscreen Bootup animation: bootup in progress Firmware upgrade icon: firmware upgrading
- Button Factory reset
- Operating temperature -10 to 40° C (14 to 104° F)
- Operating humidity 5 - 95% noncondensing
- Certifications CE, FCC, IC
LEDs
- Ethernet White: link/activity
- SFP+ White: link/activity
- HDD White: disk activity, Amber: disk error
- RPS Blue: ready
Ubiquiti UniFi Dream Machine Special Edition (UDM-SE)
The Ubiquiti UniFi Dream Machine Special Edition is an enterprise-grade UniFi OS Console capable of helping home and business owners alike seamlessly scale and manage their networks with high-speed, dual-WAN connectivity (10G SFP+ and 2.5GbE RJ45 ports), a Gigabit, PoE switch, and a network video recorder (NVR) with 128 GB of internal storage.
UDM-SE Key Features:
- Dual-WAN connectivity
- 10G SFP+ and 2.5GbE RJ45 ports
- Gigabit, PoE switch
- Network video recorder (NVR)
- Powered by UniFi OS
- Integrated Bluetooth radio
Powered by UniFi OS, the UDM SE gives you full control of all your UniFi devices, including access points, Protect cameras, Talk phones, and Access readers. It's also a future-proof console since it will be able to run all upcoming UniFi OS applications. Engineered for end-to-end simplicity, the UDM SE features an integrated Bluetooth radio that streamlines the initial setup and configuration process, which can be completed in minutes with the UniFi Network application (web or mobile).
Ubiquiti UniFi Dream Machine Special Edition (UDM-SE) Technical SpecificationsMechanical
- Dimensions 442.4 x 43.7 x 285.6 mm (17.42 x 1.72 x 11.24")
- Weight 4.95 kg (10.91 lb)
- Enclosure materials Aluminium CNC, SGCC steel
- Mount material SGCC steel rack mount
Hardware
- Processor Quad-Core ARM® Cortex®-A57 at 1.7 GHz
- System memory 4 GB DDR4
- On-board storage 16 GB eMMCIntegrated 128 GB SSD
- IDS/IPS throughput 3.5 Gbps**Measured with iPerf3
- Max. power consumption (excluding PoE output) 50W
- Power method (1) Universal AC input, 100-240VAC, 4.4A Max, 50/60 Hz(1) USP-RPS DC input, 52VDC, 3.94A
- Power supply AC/DC, Internal, 240W
- Supported voltage range 100 to 240VAC
- Management interfaces EthernetBluetooth
- Networking interfaces (1) WAN: 2.5 GbE RJ45 port(8) LAN: 1 GbE RJ45 ports
- SFP+ interfaces (1) WAN: 10G SFP+(1) LAN: 10G SFP+
- PoE interfaces (2) PoE+ IEEE 802.3at (pair A 1, 2+; 3, 6-)(6) PoE IEEE 802.3af (pair A 1, 2+; 3, 6-)
- Max. PoE wattage per port by PSE 802.3af 15.4W
- Max. PoE wattage per port by PSE 802.3at 30W
- Voltage range 802.3af mode 44 to 57V
- Voltage range 802.3at mode 50 to 57V
- ESD/EMP protection Air: ± 15 kV, contact: ± 8 kV
- LCM display (1) 1.3" touchscreen Bootup animation: bootup in progress Firmware upgrade icon: firmware upgrading
- Button Factory reset
- Operating temperature -10 to 40° C (14 to 104° F)
- Operating humidity 5 - 95% noncondensing
- Certifications CE, FCC, IC
LEDs
- Ethernet White: link/activity
- SFP+ White: link/activity
- HDD White: disk activity, Amber: disk error
- RPS Blue: ready
