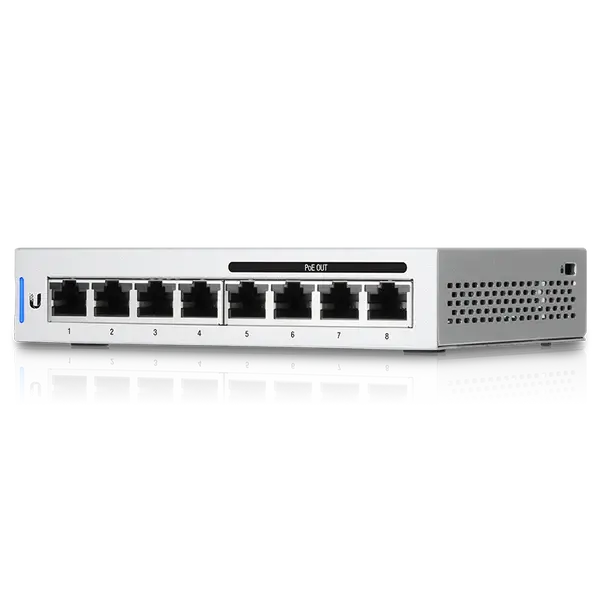

Ubiquiti UniFi Switch 8 Port - US-8-60W (PoE on ports 5-8 only)
- Category:ALL PRODUCTS,Best selling products,Intel: Revolutionizing Computing Technology,New products,Ubiquiti,Ubiquiti Switches
Please Note: This product provides 802.3af on ports 5-8 only. No PoE on ports 1-4.
Ubiquiti UniFi Switch 8 Port - US-8-60W (PoE)
The Ubiquiti UniFi US-8-60W is an 8 port PoE gigabit switch with four RJ45/802.3af PoE ports and four RJ45 ports. The US-8-60W auto-sensing PoE ports deliver up to 15.4W of power per port all in a compact form factor. Alike the other UniFi Switches, the US-8-60W is fully manageable, delivering robust performance for your network.
Ubiquiti UniFi US-8-60W (PoE) Key Features
- (8) Gigabit RJ45 Ports
- (4) Auto-Sensing IEEE 802.3af PoE Ports
- Non-Blocking Throughput: 8 Gbps
- Switching Capacity: 16 Gbps
- Forwarding Rate: 11.9 Mpps
- Maximum Power Consumption: 12W
Non-Blocking Throughput
The US-8-60W features Gigabit Ethernet ports in a compact form factor. For its total, non-blocking throughput, each UniFi US-8-60W supports up to 8 Gbps.
Switching Capacity
The UniFi US-8-60W switch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss, with a switching capacity of 16 Gbps.
Seamless Integration
A single instance of the UniFi Controller running in the cloud can manage multiple UniFi sites within a centralised interface. Each site is logically separated and has its own network monitoring, configuration, maps, statistics, and admin accounts.
Ubiquiti UniFi US-8-60W (PoE) - Technical Specifications
General
- Dimensions
148.0 x 99.5 x 30.7 mm (5.83 x 3.92 x 1.21") - Weight
432 g (15.24 oz) - Enclosure Characteristics
SGCC Steel - Total Non-Blocking Throughput
8 Gbps - Switching Capacity
16 Gbps - Forwarding Rate
11.9 Mpps - Max. Power Consumption
12W (Excluding PoE Output) - Max. PoE Wattage per Port
15.4W - Power Method
48VDC, Max. 2A - Supported Voltage Range
57VDC to 44VDC - Power Supply
External AC/DC Adapter, 48V, 1.25A - LEDs
PoE (Port 8), Speed/Link/Activity (All Ports) - Networking Interfaces
(8) 10/100/1000 Mbps RJ45 Ports - PoE Interfaces
(4) Ports 5, 6, 7, 8; IEEE802.3af - ESD/EMP Protection
Air: ± 24 kV, Contact: ± 24 kV - Operating Temperature
-5 to 45° C (23 to 113° F) - Operating Humidity
5 to 95% Noncondensing - Shock and Vibration
ETSI300-019-1.4 Standard - Certifications
CE, FCC, ICDatasheet
Please Note: This product provides 802.3af on ports 5-8 only. No PoE on ports 1-4.
Ubiquiti UniFi Switch 8 Port - US-8-60W (PoE)
The Ubiquiti UniFi US-8-60W is an 8 port PoE gigabit switch with four RJ45/802.3af PoE ports and four RJ45 ports. The US-8-60W auto-sensing PoE ports deliver up to 15.4W of power per port all in a compact form factor. Alike the other UniFi Switches, the US-8-60W is fully manageable, delivering robust performance for your network.
Ubiquiti UniFi US-8-60W (PoE) Key Features
- (8) Gigabit RJ45 Ports
- (4) Auto-Sensing IEEE 802.3af PoE Ports
- Non-Blocking Throughput: 8 Gbps
- Switching Capacity: 16 Gbps
- Forwarding Rate: 11.9 Mpps
- Maximum Power Consumption: 12W
Non-Blocking Throughput
The US-8-60W features Gigabit Ethernet ports in a compact form factor. For its total, non-blocking throughput, each UniFi US-8-60W supports up to 8 Gbps.
Switching Capacity
The UniFi US-8-60W switch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss, with a switching capacity of 16 Gbps.
Seamless Integration
A single instance of the UniFi Controller running in the cloud can manage multiple UniFi sites within a centralised interface. Each site is logically separated and has its own network monitoring, configuration, maps, statistics, and admin accounts.
Ubiquiti UniFi US-8-60W (PoE) - Technical Specifications
General
- Dimensions
148.0 x 99.5 x 30.7 mm (5.83 x 3.92 x 1.21") - Weight
432 g (15.24 oz) - Enclosure Characteristics
SGCC Steel - Total Non-Blocking Throughput
8 Gbps - Switching Capacity
16 Gbps - Forwarding Rate
11.9 Mpps - Max. Power Consumption
12W (Excluding PoE Output) - Max. PoE Wattage per Port
15.4W - Power Method
48VDC, Max. 2A - Supported Voltage Range
57VDC to 44VDC - Power Supply
External AC/DC Adapter, 48V, 1.25A - LEDs
PoE (Port 8), Speed/Link/Activity (All Ports) - Networking Interfaces
(8) 10/100/1000 Mbps RJ45 Ports - PoE Interfaces
(4) Ports 5, 6, 7, 8; IEEE802.3af - ESD/EMP Protection
Air: ± 24 kV, Contact: ± 24 kV - Operating Temperature
-5 to 45° C (23 to 113° F) - Operating Humidity
5 to 95% Noncondensing - Shock and Vibration
ETSI300-019-1.4 Standard - Certifications
CE, FCC, ICDatasheet
