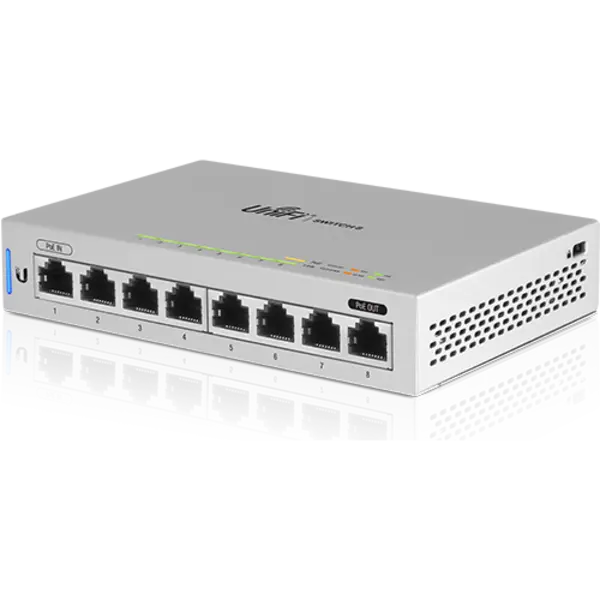

Ubiquiti UniFi Switch 8 Port - US-8 (Non-PoE)
- Category:ALL PRODUCTS,Best selling products,Intel: Revolutionizing Computing Technology,New products,Ubiquiti,Ubiquiti Switches
Ubiquiti UniFi Switch 8 Port - US-8 (Non-PoE)
The Ubiquiti UniFi US-8 is a non-PoE 8 port gigabit switch, which supports PoE passthrough. It is perfect for cleanly adding Ethernet ports where needed, all in a compact form factor. Alike the other UniFi Switches, the US-8 is fully manageable, delivering robust performance for your network.
Ubiquiti UniFi US-8 Key Features
- 5x US-8
- (8) Gigabit RJ45 Ports
- (1) PoE Passthrough Port
- Non-Blocking Throughput: 8 Gbps
- Switching Capacity: 16 Gbps
- Forwarding Rate: 11.9 Mpps
- Maximum Power Consumption: 12W
- PoE or DC Input Option
8-Port Managed Gigabit Switches
The US-8-60W is an 8-port gigabit switch with four 802.3af PoE ports. Its auto-sensing PoE ports deliver up to 15.4W of power per port.
The US-8 is a PoE Powered 8-port gigabit switch with PoE Passthrough. Perfect for cleanly adding Ethernet ports where needed, with passthrough to keep your PoE device powered.
Non-Blocking Throughput
The new 8-port models feature Gigabit Ethernet ports in a compact form factor. For its total, non-blocking throughput, each UniFi Switch supports up to 8 Gbps.
Switching Capacity
The UniFi Switch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss, with a switching capacity of 16 Gbps.
Seamless Integration
A single instance of the UniFi Controller running in the cloud can manage multiple UniFi sites within a centralised interface. Each site is logically separated and has its own network monitoring, configuration, maps, statistics, and admin accounts.
Ubiquiti UniFi US-8 - Technical Specifications
General
- Dimensions: 148.0 x 99.5 x 30.7 mm (5.83 x 3.92 x 1.21")
- Weight: 432 g (15.24 oz)
- Enclosure Characteristics: SGCC Steel
- Total Non-Blocking Throughput: 8 Gbps
- Switching Capacity: 16 Gbps
- Forwarding Rate: 11.9 Mpps
- Max. Power Consumption: 12W (Excluding PoE Output)
- Max. Passive PoE Wattage per Port:
- PoE Mode 1: 12W @ 802.3at
- PoE Mode 2: 12W @ 48V
- DC Input Mode: 12W @ 48V - Passive PoE Voltage Range: Depends on Power Source
- Power Method:
- (1) DC 48V, Max. 1.25A
- (1) PoE Input, 802.3 af/at (Pins +1, 2; -3, 6) - Supported Voltage Range: DC: 48V; 48V Mode: 56V to 40V
- Power Supply: External AC/DC Adapter, 48V, 0.5A
- LEDs: PoE (Port 8), Speed/Link/Activity (All Ports)
- Sound Level (Background noise level: 27.5 dBa): 0.7 dBr (Fanless)
- Networking Interfaces: (8) 10/100/1000 Mbps RJ45 Ports
- PoE In Interface (Port 1):
- PoE Mode 1: 802.3af/at (Pins +1, 2; -3, 6)
- PoE Mode 2: 48V (Pins +4, 5; -7, 8) - PoE Out Interface (Port 8):
- PoE Mode 1: 48V (Pins +1, 2; -3, 6)
- PoE Mode 2: Passive 48V (Pins +4, 5; -7, 8)
- DC Input Mode: DC Passthrough (Pins +1, 2; -3, 6) - Management Interface: Ethernet In-Band Management
- ESD/EMP Protection: Air: ± 24 kV, Contact: ± 24 kV
- Operating Temperature: -5 to 45° C (23 to 113° F)
- Operating Humidity: 5 to 95% Noncondensing
- Shock and Vibration: ETSI300-019-1.4 Standard
- Certifications: CE, FCC, IC
Ubiquiti UniFi Switch 8 Port - US-8 (Non-PoE)
The Ubiquiti UniFi US-8 is a non-PoE 8 port gigabit switch, which supports PoE passthrough. It is perfect for cleanly adding Ethernet ports where needed, all in a compact form factor. Alike the other UniFi Switches, the US-8 is fully manageable, delivering robust performance for your network.
Ubiquiti UniFi US-8 Key Features
- 5x US-8
- (8) Gigabit RJ45 Ports
- (1) PoE Passthrough Port
- Non-Blocking Throughput: 8 Gbps
- Switching Capacity: 16 Gbps
- Forwarding Rate: 11.9 Mpps
- Maximum Power Consumption: 12W
- PoE or DC Input Option
8-Port Managed Gigabit Switches
The US-8-60W is an 8-port gigabit switch with four 802.3af PoE ports. Its auto-sensing PoE ports deliver up to 15.4W of power per port.
The US-8 is a PoE Powered 8-port gigabit switch with PoE Passthrough. Perfect for cleanly adding Ethernet ports where needed, with passthrough to keep your PoE device powered.
Non-Blocking Throughput
The new 8-port models feature Gigabit Ethernet ports in a compact form factor. For its total, non-blocking throughput, each UniFi Switch supports up to 8 Gbps.
Switching Capacity
The UniFi Switch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss, with a switching capacity of 16 Gbps.
Seamless Integration
A single instance of the UniFi Controller running in the cloud can manage multiple UniFi sites within a centralised interface. Each site is logically separated and has its own network monitoring, configuration, maps, statistics, and admin accounts.
Ubiquiti UniFi US-8 - Technical Specifications
General
- Dimensions: 148.0 x 99.5 x 30.7 mm (5.83 x 3.92 x 1.21")
- Weight: 432 g (15.24 oz)
- Enclosure Characteristics: SGCC Steel
- Total Non-Blocking Throughput: 8 Gbps
- Switching Capacity: 16 Gbps
- Forwarding Rate: 11.9 Mpps
- Max. Power Consumption: 12W (Excluding PoE Output)
- Max. Passive PoE Wattage per Port:
- PoE Mode 1: 12W @ 802.3at
- PoE Mode 2: 12W @ 48V
- DC Input Mode: 12W @ 48V - Passive PoE Voltage Range: Depends on Power Source
- Power Method:
- (1) DC 48V, Max. 1.25A
- (1) PoE Input, 802.3 af/at (Pins +1, 2; -3, 6) - Supported Voltage Range: DC: 48V; 48V Mode: 56V to 40V
- Power Supply: External AC/DC Adapter, 48V, 0.5A
- LEDs: PoE (Port 8), Speed/Link/Activity (All Ports)
- Sound Level (Background noise level: 27.5 dBa): 0.7 dBr (Fanless)
- Networking Interfaces: (8) 10/100/1000 Mbps RJ45 Ports
- PoE In Interface (Port 1):
- PoE Mode 1: 802.3af/at (Pins +1, 2; -3, 6)
- PoE Mode 2: 48V (Pins +4, 5; -7, 8) - PoE Out Interface (Port 8):
- PoE Mode 1: 48V (Pins +1, 2; -3, 6)
- PoE Mode 2: Passive 48V (Pins +4, 5; -7, 8)
- DC Input Mode: DC Passthrough (Pins +1, 2; -3, 6) - Management Interface: Ethernet In-Band Management
- ESD/EMP Protection: Air: ± 24 kV, Contact: ± 24 kV
- Operating Temperature: -5 to 45° C (23 to 113° F)
- Operating Humidity: 5 to 95% Noncondensing
- Shock and Vibration: ETSI300-019-1.4 Standard
- Certifications: CE, FCC, IC
