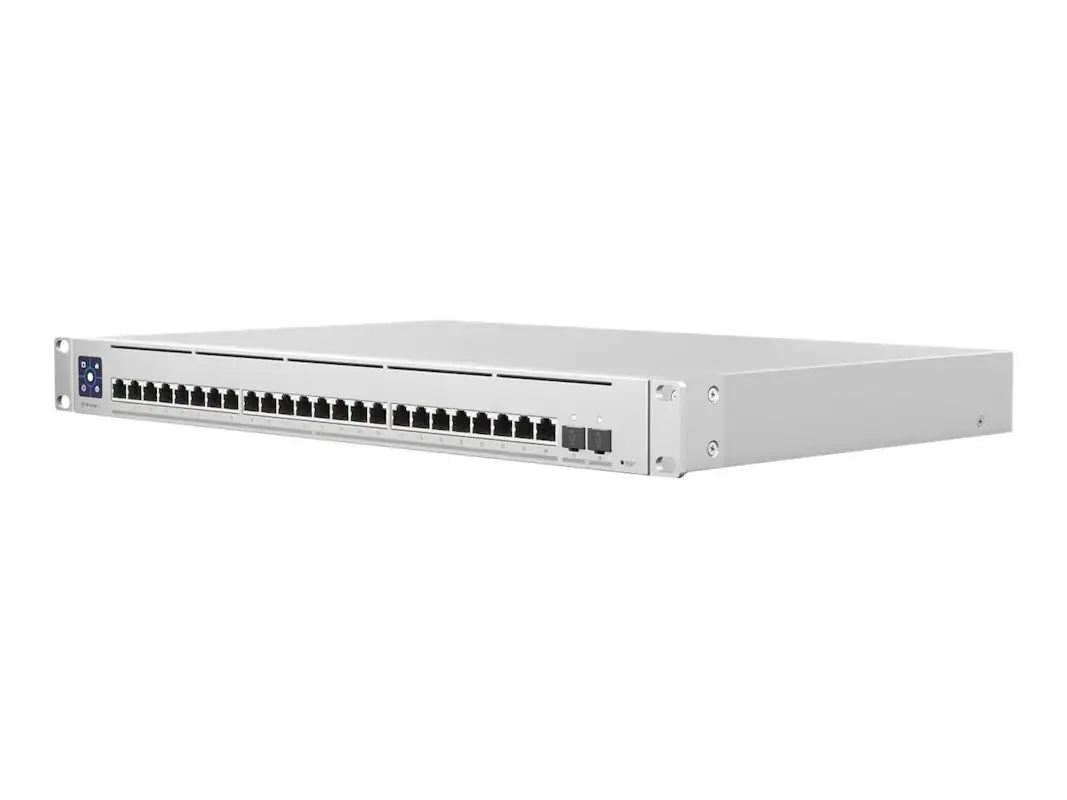

Ubiquiti UniFi Switch Enterprise XG 24 (USW-EnterpriseXG-24)
- Category:ALL PRODUCTS,Best selling products,Intel: Revolutionizing Computing Technology,New products,Ubiquiti,Ubiquiti Switches
The Switch Enterprise XG 24 (USW-EnterpriseXG-24) is a Layer 3 switch with (24) 10GbE RJ45 ports and (2) 25G SFP28 ports that is fully managed.
The USW Enterprise XG 24 also has a 1.3" LCM colour touchscreen that shows key system and connection information in a clear and concise manner. When connected to the SmartPower Redundant Power System, the USW Enterprise XG 24 also provides greater power supply failure protection (USP RPS sold separately). The powerful, intuitive UniFi Network web application and mobile app can be used to monitor and configure this switch from anywhere.
Ubiquiti UniFi Switch USW-EnterpriseXG-24 Key Features
- 1.3" LCM color touchscreen with AR switch management
- 24x 10GbE RJ45 ports
- 2x 25G SFP28 ports
- USP RPS DC input
- Layer 3 switching features
- Single-row RJ45 port layout for easy patch panel cable management
Mechanical
- Dimensions: 442 x 44 x 285 mm (17.4 x 1.7 x 11.2")
- Weight: Without Mount: 4.47 kg (9.85 lb) / With Mount: 4.57 kg (11.02 lb)
- Enclosure Materials: SGCC Steel
- Mount Material: SGCC Steel
Hardware
- Total Non-Blocking Throughput: 290 Gbps
- Switching Capacity: 580 Gbps
- Forwarding Rate: 431.52 Mpps
- Max. Power Consumption: 100W
- Power Method: (1) Universal AC input: 100-240VAC, 2A Max., 50/60 Hz, (1) USP-RPS DC input: 11.5VDC, 8.7A
- Power Supply: AC/DC, Internal, 100W
- Management Interface: Ethernet In-Band
- Networking Interfaces: (24) 100/1,000/2,500/5,000/10,000 Mbps RJ45 Ethernet / SFP28 Interfaces: (2) 1/10/25 Gbps SFP28*
- Services: SMB Layer 3 Gigabit Ethernet Switch
- ESD/EMP Protection Air: ± 16 kV, Contact: ± 12 kV
- LCM Display: 1.3" Touchscreen
- Bootup Animation: Bootup in Progress
- Firmware Upgrade Icon: Firmware Upgrading
- Steady White: Factory Defaults, Awaiting Adoption
- Steady Blue: Device is Adopted
- Button: Factory Reset
- LEDs: White: Link or Activity
- Operating Temperature: -5 to 40° C (23 to 104° F)
- Operating Humidity: 10 - 95% Noncondensing
- Certifications: CE, FCC, IC
*The two SFP28 ports don't support mixed speed at 25Gbps mode. Once one of the SFP28 ports is configured at 25Gbps mode, the others will be limited at 25Gbps too. The SFP28 ports only support mixed speed when all ports are at 1Gbps or 10Gbps.
The Switch Enterprise XG 24 (USW-EnterpriseXG-24) is a Layer 3 switch with (24) 10GbE RJ45 ports and (2) 25G SFP28 ports that is fully managed.
The USW Enterprise XG 24 also has a 1.3" LCM colour touchscreen that shows key system and connection information in a clear and concise manner. When connected to the SmartPower Redundant Power System, the USW Enterprise XG 24 also provides greater power supply failure protection (USP RPS sold separately). The powerful, intuitive UniFi Network web application and mobile app can be used to monitor and configure this switch from anywhere.
Ubiquiti UniFi Switch USW-EnterpriseXG-24 Key Features
- 1.3" LCM color touchscreen with AR switch management
- 24x 10GbE RJ45 ports
- 2x 25G SFP28 ports
- USP RPS DC input
- Layer 3 switching features
- Single-row RJ45 port layout for easy patch panel cable management
Mechanical
- Dimensions: 442 x 44 x 285 mm (17.4 x 1.7 x 11.2")
- Weight: Without Mount: 4.47 kg (9.85 lb) / With Mount: 4.57 kg (11.02 lb)
- Enclosure Materials: SGCC Steel
- Mount Material: SGCC Steel
Hardware
- Total Non-Blocking Throughput: 290 Gbps
- Switching Capacity: 580 Gbps
- Forwarding Rate: 431.52 Mpps
- Max. Power Consumption: 100W
- Power Method: (1) Universal AC input: 100-240VAC, 2A Max., 50/60 Hz, (1) USP-RPS DC input: 11.5VDC, 8.7A
- Power Supply: AC/DC, Internal, 100W
- Management Interface: Ethernet In-Band
- Networking Interfaces: (24) 100/1,000/2,500/5,000/10,000 Mbps RJ45 Ethernet / SFP28 Interfaces: (2) 1/10/25 Gbps SFP28*
- Services: SMB Layer 3 Gigabit Ethernet Switch
- ESD/EMP Protection Air: ± 16 kV, Contact: ± 12 kV
- LCM Display: 1.3" Touchscreen
- Bootup Animation: Bootup in Progress
- Firmware Upgrade Icon: Firmware Upgrading
- Steady White: Factory Defaults, Awaiting Adoption
- Steady Blue: Device is Adopted
- Button: Factory Reset
- LEDs: White: Link or Activity
- Operating Temperature: -5 to 40° C (23 to 104° F)
- Operating Humidity: 10 - 95% Noncondensing
- Certifications: CE, FCC, IC
*The two SFP28 ports don't support mixed speed at 25Gbps mode. Once one of the SFP28 ports is configured at 25Gbps mode, the others will be limited at 25Gbps too. The SFP28 ports only support mixed speed when all ports are at 1Gbps or 10Gbps.
