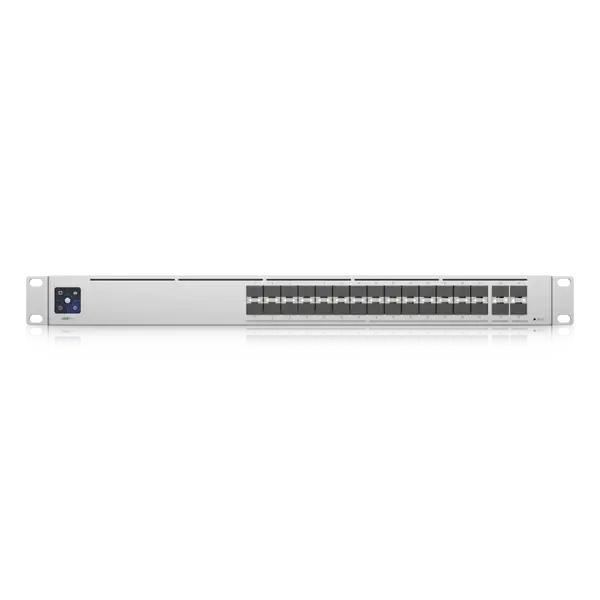

Ubiquiti UniFi Switch Pro Aggregation (USW-Pro-Aggregation)
- Category:ALL PRODUCTS,Best selling products,Intel: Revolutionizing Computing Technology,New products,Ubiquiti,Ubiquiti Switches
Ubiquiti UniFi Switch Pro Aggregation (USW-Pro-Aggregation)
The Switch Pro Aggregation is a fully managed, Layer 3 switch with (28) 10G SFP+ ports and (4) 25G SFP28 ports designed to enhance your network's switching capacity and performance by creating high-bandwidth aggregation links. This rack-mountable switch also offers 760 Gbps switching capacity and features a 1.3" LCM color touchscreen that concisely displays key system and connection insights.
Additionally, the Switch Pro Aggregation offers enhanced power supply failure protection when connected to the SmartPower Redundant Power System (USP RPS sold separately). This switch can be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.
Ubiquiti UniFi Switch Pro Aggregation Key Features
- (1) 1.3” LCM color touchscreen with AR switch management
- (28) 10G SFP+ ports
- (4) 25G SFP28 ports
- (1) USP RPS DC input
- 760 Gbps switching capacity
- Layer 3 switching features
Mechanical
- Dimensions:442 x 325 x 44 mm (17.4 x 12.8 x 1.7")
- Weight: Without Mount: 4.6 kg (10.14 lb)
- Weight With Mount: 4.7 kg (10.36 lb)
- Enclosure Material: SGCC Steel
Hardware
- Total Non-Blocking Throughput: 380 Gbps
- Switching Capacity: 760 Gbps
- Forwarding Rate: 565.44 Mpps
- Max. Power Consumption: 100W
- Power Method: (1) Universal AC input, 100-240VAC, 2A Max, 50/60 Hz
- (1) USP-RPS DC input, 11.5VDC, 8.7A
- Power Supply: AC/DC, Internal, 100W
- Network Interface: (28) 1/10 Gbps SFP+ Ethernet
- (4) 1/10/25 Gbps SFP28 Ethernet*
- LCM Display: (1) 1.3" Touchscreen
- Bootup Animation: Bootup in Progress
- Firmware Upgrade Icon: Firmware Upgrading
- Steady White: Factory Defaults, Awaiting Adoption
- Steady Blue: Device is Adopted
- LEDs: SFP28/SFP+: White, Link and Activity
- Management Interface: Ethernet In-Band
- Modes: SMB Layer 3 10/25 G Fiber Switch
- ESD/EMP Protection: Air: ± 16kV, Contact: ± 12kV
- Operating Temperature: -5 to 40° C (23 to 104° F)
- Operating Humidity: 10 - 90% Noncondensing
- Certifications: CE, FCC, IC
Once one of the SFP28 ports is configured at 25Gbps mode, the others will be limited at 25Gbps too.
The SFP28 ports only support mixed speed when all ports are at 1Gbps or 10Gbps.
Ubiquiti UniFi Switch Pro Aggregation (USW-Pro-Aggregation)
The Switch Pro Aggregation is a fully managed, Layer 3 switch with (28) 10G SFP+ ports and (4) 25G SFP28 ports designed to enhance your network's switching capacity and performance by creating high-bandwidth aggregation links. This rack-mountable switch also offers 760 Gbps switching capacity and features a 1.3" LCM color touchscreen that concisely displays key system and connection insights.
Additionally, the Switch Pro Aggregation offers enhanced power supply failure protection when connected to the SmartPower Redundant Power System (USP RPS sold separately). This switch can be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.
Ubiquiti UniFi Switch Pro Aggregation Key Features
- (1) 1.3” LCM color touchscreen with AR switch management
- (28) 10G SFP+ ports
- (4) 25G SFP28 ports
- (1) USP RPS DC input
- 760 Gbps switching capacity
- Layer 3 switching features
Mechanical
- Dimensions:442 x 325 x 44 mm (17.4 x 12.8 x 1.7")
- Weight: Without Mount: 4.6 kg (10.14 lb)
- Weight With Mount: 4.7 kg (10.36 lb)
- Enclosure Material: SGCC Steel
Hardware
- Total Non-Blocking Throughput: 380 Gbps
- Switching Capacity: 760 Gbps
- Forwarding Rate: 565.44 Mpps
- Max. Power Consumption: 100W
- Power Method: (1) Universal AC input, 100-240VAC, 2A Max, 50/60 Hz
- (1) USP-RPS DC input, 11.5VDC, 8.7A
- Power Supply: AC/DC, Internal, 100W
- Network Interface: (28) 1/10 Gbps SFP+ Ethernet
- (4) 1/10/25 Gbps SFP28 Ethernet*
- LCM Display: (1) 1.3" Touchscreen
- Bootup Animation: Bootup in Progress
- Firmware Upgrade Icon: Firmware Upgrading
- Steady White: Factory Defaults, Awaiting Adoption
- Steady Blue: Device is Adopted
- LEDs: SFP28/SFP+: White, Link and Activity
- Management Interface: Ethernet In-Band
- Modes: SMB Layer 3 10/25 G Fiber Switch
- ESD/EMP Protection: Air: ± 16kV, Contact: ± 12kV
- Operating Temperature: -5 to 40° C (23 to 104° F)
- Operating Humidity: 10 - 90% Noncondensing
- Certifications: CE, FCC, IC
Once one of the SFP28 ports is configured at 25Gbps mode, the others will be limited at 25Gbps too.
The SFP28 ports only support mixed speed when all ports are at 1Gbps or 10Gbps.
