MikroTik RouterBoard RB5009UPr+S+IN: 4-core 1.4GHz CPU, 1GB RAM, 2.5Gbit LAN, PoE

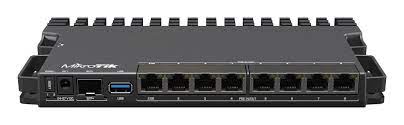

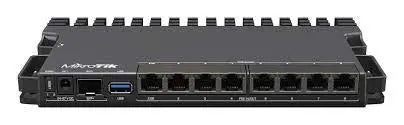

MikroTik RouterBoard RB5009UPr+S+IN
The MikroTik RouterBoard RB5009UPr+S+IN is an enhanced RB5009 router, tailored for small and medium ISPs seeking powerful networking solutions. This iteration boasts the features of its predecessor, including Gigabit Ethernet, 2.5 Gigabit Ethernet, and a 10 Gigabit SFP+ cage for fiber connectivity, but now incorporates PoE-in and PoE-out across its eight Ethernet ports, alongside a 2-pin connector and DC jack, offering ten diverse power delivery methods. The unit supports a voltage range of 24-57V for all power options, with automatic selection of the highest voltage source for PoE-out devices.
MikroTik RouterBoard RB5009UPr+S+IN Key Features:
- Versatile Powering Options
- High-Speed Connectivity
- Power Allocation Control
- Compact and Reliable Design
Each PoE-out port can supply 25W, collectively capped at 130W, and manual specification of power allocation is possible. In case of power source failure, the router gracefully transitions to alternate sources based on voltage priority. This compact model suits various environments and can be rack-mounted, making it adaptable for confined spaces or expansive server rooms. The RB5009 aims to empower small and medium ISPs with an affordable and reliable solution, complementing our GPEN devices and reshaping cost-effective networking solutions.
MikroTik RouterBoard RB5009UPr+S+IN Technical Specifications
General
- Product code RB5009UPr+S+IN
- CPU 88F7040 1.4 GHz
- CPU architecture ARM 64bit
- CPU core count 4
- Size of RAM 1 GB
- RAM type DDR4
- Storage 1 GB, NAND
- Number of 1G Ethernet ports 7
- Number of 2.5G Ethernet ports 1
- Number of 10G SFP+ ports 1
- USB port 1 (3.0 type A)
- Operating system Only v7 RouterOS
- Switch chip model 88E6393
- Dimensions 220 x 125 x 22 mm
- Operating temperature -40°C to +60°C
Powering
- PoE-in 802.3af/at
- PoE-Out Same voltage as supplied, Passive PoE or 802.3af/at
- (requires 44.0–57.0 V input)
- PoE-Out ports Ether1 - Ether8, max out per port output (input < 30 V): 640 mA,
- max out per port output (input > 30 V): 420 mA
- Smart PoE Controller
- Max total out 2.59 A
- Total output power 130 W
- Total output current 2.28 A
- Number of DC inputs 3
- Supported input voltage 24-57 V (PoE in) 24-57 V (DC jack) 24-57 (2-pin terminal)
- Power adapter nominal voltage 48 V
- Power adapter nominal current 2 A
- Max power consumption (without attachments) 15 W
- Max power consumption 150 W
MikroTik RouterBoard RB5009UPr+S+IN
The MikroTik RouterBoard RB5009UPr+S+IN is an enhanced RB5009 router, tailored for small and medium ISPs seeking powerful networking solutions. This iteration boasts the features of its predecessor, including Gigabit Ethernet, 2.5 Gigabit Ethernet, and a 10 Gigabit SFP+ cage for fiber connectivity, but now incorporates PoE-in and PoE-out across its eight Ethernet ports, alongside a 2-pin connector and DC jack, offering ten diverse power delivery methods. The unit supports a voltage range of 24-57V for all power options, with automatic selection of the highest voltage source for PoE-out devices.
MikroTik RouterBoard RB5009UPr+S+IN Key Features:
- Versatile Powering Options
- High-Speed Connectivity
- Power Allocation Control
- Compact and Reliable Design
Each PoE-out port can supply 25W, collectively capped at 130W, and manual specification of power allocation is possible. In case of power source failure, the router gracefully transitions to alternate sources based on voltage priority. This compact model suits various environments and can be rack-mounted, making it adaptable for confined spaces or expansive server rooms. The RB5009 aims to empower small and medium ISPs with an affordable and reliable solution, complementing our GPEN devices and reshaping cost-effective networking solutions.
MikroTik RouterBoard RB5009UPr+S+IN Technical Specifications
General
- Product code RB5009UPr+S+IN
- CPU 88F7040 1.4 GHz
- CPU architecture ARM 64bit
- CPU core count 4
- Size of RAM 1 GB
- RAM type DDR4
- Storage 1 GB, NAND
- Number of 1G Ethernet ports 7
- Number of 2.5G Ethernet ports 1
- Number of 10G SFP+ ports 1
- USB port 1 (3.0 type A)
- Operating system Only v7 RouterOS
- Switch chip model 88E6393
- Dimensions 220 x 125 x 22 mm
- Operating temperature -40°C to +60°C
Powering
- PoE-in 802.3af/at
- PoE-Out Same voltage as supplied, Passive PoE or 802.3af/at
- (requires 44.0–57.0 V input)
- PoE-Out ports Ether1 - Ether8, max out per port output (input < 30 V): 640 mA,
- max out per port output (input > 30 V): 420 mA
- Smart PoE Controller
- Max total out 2.59 A
- Total output power 130 W
- Total output current 2.28 A
- Number of DC inputs 3
- Supported input voltage 24-57 V (PoE in) 24-57 V (DC jack) 24-57 (2-pin terminal)
- Power adapter nominal voltage 48 V
- Power adapter nominal current 2 A
- Max power consumption (without attachments) 15 W
- Max power consumption 150 W
