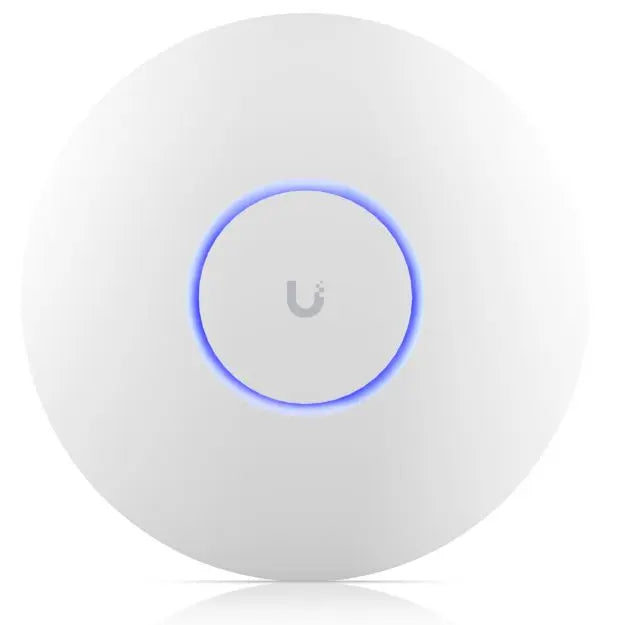

Ubiquiti UniFi U7 Pro Max Access Point (U7-Pro-Max)
Ubiquiti UniFi U7 Pro Max Access Point (U7-Pro-Max)
The Ubiquiti UniFi U7 Pro Max is a ceiling-mounted Wi-Fi 7 access point designed for optimal performance in demanding, large-scale environments. Equipped with support for 6 GHz Wi-Fi and eight spatial streams, it offers unparalleled connectivity for high-demand office spaces. Its real-time spectral scanning engine minimises interference by intelligently selecting the best channels, making it a reliable choice for businesses with extensive networking needs.
U7-Pro-Max Key Features:
- Wi-Fi 7 with 6 GHz support
- 8 spatial streams
- Real-time spectral analysis for enhanced channel selection*
- 160 m² (1,750 ft²) coverage
- 500+ connected devices
- Powered using PoE+
- 2.5 GbE uplink
The U7 Pro Max’s key features include Wi-Fi 7 technology with support for 6 GHz and eight spatial streams, delivering robust connectivity and consistent performance. With a coverage area of 160 square meters (1,750 square feet) and the capacity to support over 500 connected devices, this access point is ideal for offices, conference halls, and other large venues. The PoE+ power option and 2.5 GbE uplink enhance deployment flexibility and network speed, making the U7-Pro-Max a high-performance solution for large enterprises.
U7-Pro-Max Features
In addition to its powerful connectivity, the U7-Pro-Max’s real-time spectral analysis optimises channel selection, ensuring a smooth and interference-free experience for all connected devices. The advanced features and extensive coverage make this access point a valuable asset for managing high-density networks, providing a stable and efficient wireless solution for modern, high-traffic environments.
U7-Pro-Max Deployment
U7-Pro-Max Technical Specifications
Mechanical
- Dimensions: Ø206 x 46 mm (Ø8.1 x 1.8")
- Weight: 680 g (1.5 lb)
- Enclosure material: Polycarbonate, aluminum
- Mount material: Stainless steel (SUS304), galvanized steel (SGCC)
Hardware
- Networking interface: (1) 1/2.5 GbE RJ45 port
- Management interface: Ethernet
- Power method: PoE+
- Power supply: UniFi PoE switch
- Supported voltage range: 44—57V DC
- Max. power consumption: 22W
- Max. TX power
- 2.4 GHz: 23 dBm
- 5 GHz: 29 dBm
- 6 GHz: 23 dBm
- MIMO
- 2.4 GHz: 2 x 2
- 5 GHz: 4 x 4
- 6 GHz: 2 x 2
- Throughput rate
- 2.4 GHz: 688 Mbps
- 5 GHz: 8648 Mbps
- 6 GHz: 5765 Mbps
- Antenna gain
- 2.4 GHz: 4 dBi
- 5 GHz: 6 dBi
- 6 GHz: 5.9 dBi
- LEDs: White/blue
- Button: Factory reset
- Mounting: Wall, ceiling (Included)
- Ambient operating temperature: -30 to 60° C (-22 to 140° F)
- Ambient operating humidity: 5 to 95% noncondensing
- Certifications: CE, FCC, IC
Software
- Wi-Fi standards: 802.11a/b/g/n/ac/ax/be
- Wireless security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
- BSSID: 8 per radio
- VLAN: 802.1Q
- Advanced QoS: Per-user rate limiting
- Guest traffic isolation: Supported
- Concurrent clients: 500+
- Supported Data Rates
- 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
- 802.11b: 1, 2, 5.5, 11 Mbps
- 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
- 802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
- 802.11ac (Wi-Fi 5): 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
- 802.11ax (Wi-Fi 6/6E): 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
- 802.11be (Wi-Fi 7): 7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)
