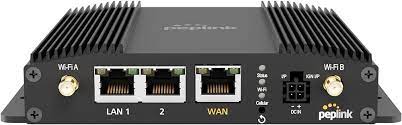

Peplink MAX BR1 Pro 5G (MAX-BR1-PRO-5GD-T-PRM)
Peplink MAX BR1 Pro 5G (MAX-BR1-PRO-5GD-T-PRM)
Pepwave new MAX BR1 now has 5G. This unit comes in Pepwave's new chassis, latest Cat 20 5G ready modem, dual-band wifi 6, WiFi as Wan, and more.
The BR1 5G is a complete mobile internet solution for travelers who are looking to use Cellular data as their primary mode of staying connected. The BR1 5G has two sim slots (nano) allowing you to load this router with multiple sim cards from multiple carriers allowing you to select which sim/carrier is in use by the modem. The signal from your cellular connection is then re-broadcasted wirelessly inside your coach or travel trailer using the unit's high-powered WIFI 6, 2x2 MIMO WiFi antennas. You get powerful 2ghz (long-range) and 5ghz (high speed) wireless connectivity that now takes advantage of the latest WIFI 6 technology with much faster throughput than its predecessor while also getting wired ethernet ports for your most demanding devices like VOIP phones or desktop computer/workstations.
Sonic for a Reason
The 'classic goes sonic', why? The BR1 Pro 5G is integrated with the new generation multi-core CPU ensuring delivery of gigabit speeds. Achieving 800% faster speeds than the original BR1 Classic.
Upgrade to Wi-Fi 6
Experience less interference and connect to multiple devices simultaneously.
Deploy with Confidence
Just like the original BR1 Classic, the BR1 Pro 5G has also been certified to meet the standards of a wide array of deployment criterias.
Peplink MAX BR1 Pro 5G Key Features
- Downlink/Uplink Datarate: 5G: 4 Gbps / 700 Mbps, LTE CAT-20: 2 Gbps / 150 Mbps
- 2x 10/100/1000M LAN Port. 1x 10/100/1000/2500M WAN Port. The WAN port can act as a LAN port if needed. 1x 5G Modem with Redundant SIM Slot
- 1 Gbps router throughput
- Simultaneous Dual-Band 2.4GHz/5GHz, Wi-Fi 6, 2X2 MU-MIMO Wi-Fi WAN and/or AP
- Transmit Power 2.4GHz/5GHz: 21 dBm/22 dBm
- SpeedFusion Features [Hot Failover, WAN Smoothing, Bandwidth Bonding] These features require PrimeCare Subscription, complimentary for the first year
- 2 PepVPN Peers are enabled by default. 5 PepVPN Peers are enabled with PrimeCare Subscription, complimentary for the first year
- Package Content: 1x BR1 Pro 5G, 1x 12V2A Power Supply, 4x LTE/5G Antennas, 2x Wi-Fi Dual Band Antenna, 1x GPS Antenna
- Compatible devices: switch, access point, computer, smartphone
- Verizon, AT&T, T-Mobile, U.S. Cellular certified
Peplink MAX BR1 Pro 5G - Technical Specifications
General
- WAN Interface: 1x 10/100/1000/2500M Ethernet / 1 x Embedded 5G/Cat 20 LTE modem with Redundant 4FF Nano SIM Slots
- Downlink/Uplink Datarate: 5G: 4 Gbps / 700 Mbps / LTE CAT-20: 2 Gbps / 150 Mbps
- LAN Interface: 2x 10/100/1000M Ethernet
- WiFi Interface: Simultaneous Dual-Band (2.4GHz / 5GHz) / Wi-Fi 6, 2X2 MU-MIMO / Wi-Fi WAN and/or AP
- Transmit Power: 2.4Ghz: 21 dBm / 5.0GHz: 22 dBm
- Router Throughput: 1 Gbps
- Recommended Users: 1-150
- Antenna Connectors: 4x SMA Female Cellular Antenna Connectors / 2x RP-SMA Female Wi-Fi Antenna Connectors / 1x SMA Female GPS Antenna Connector
- Power Input: 10 - 30V
- Power Consumption: 8 W (nominal), 19 W (max.)
- Dimensions: 4.93" x 5.79" x 1.14" / 125 x 147 x 23 mm
- Weight: 1.28 pounds / 580 g
- Operating Temperature: -40° – 149°F / -40° – 65°C
- Humidity: 15% – 85% (non-condensing)
- Certifications: FCC, CE
Features
- WAN: Support for PPPoE, Static IP, DHCP / WAN Link Health Check / Bandwidth Allowance Monitor / Support for Dynamic DNS services
- LAN: DHCP Server for LAN Clients / Extended DHCP Option / DHCP Reservation / DNS Proxy for LAN Clients / VLAN on LAN Support
- Load Balancing: Intelligent Failover / Session Persistence / Per-Service Load Distribution
- Multiple Algorithms
- Global Positioning System: Integrated GPS / Device Location Map / Location Tracking Data with InControl 2
- Complete VPN Solution: PepVPN/SpeedFusion Hot Failover
- IPsec VPN (Network-to-Network): X.509 Certificate Support
Networking
- NAT and IP Forwarding
- Static Routes
- Port Forwarding
- Many to One, One to One NAT
- NAT Pool
- SIP ALG, H.323 ALG
- UPnP, NAT-PMP
Security
- 128-bit WEP
- WPA & WPA 2
- Stateful Firewall
- DoS Prevention
- Web Blocking
Advanced QoS
- Individual Bandwidth Limit (per user only)
- Application Prioritisation: SIP, HTTPS, VPN QoS / Custom Application QoS
AP Controller
- AP Controller Support
- Wi-Fi Usage Statistics
- Maximum Number of AP Support: 10
Captive Portal Support
- Support for Wired and Wireless LAN clients
- Support RADIUS Authentication
- Time and Usage Quotas on Open Access Mode
- Built-in Customizable Splash Page
- Social Wi-Fi Hotspot support
- External Captive Portal support
Device Management
- Web Administrative Interface
- Command Line Interface
- InControl Cloud Management
- Email Notification
- Active Client and Session Lists
- Bandwidth Usage Statistics
- Syslog Service
- SNMP v1, v2c and v3
Package Contents
- MAX BR1 Pro 5G
- 1x 12V2A Power Supply (ACW-632)
- 4x LTE/5G Antennas (ACW-234)
- 2x Wi-Fi Dual Band Antenna (ACW-341)
- 1x GPS Antenna (ACW-232)
Peplink MAX BR1 Pro 5G (MAX-BR1-PRO-5GD-T-PRM)
Pepwave new MAX BR1 now has 5G. This unit comes in Pepwave's new chassis, latest Cat 20 5G ready modem, dual-band wifi 6, WiFi as Wan, and more.
The BR1 5G is a complete mobile internet solution for travelers who are looking to use Cellular data as their primary mode of staying connected. The BR1 5G has two sim slots (nano) allowing you to load this router with multiple sim cards from multiple carriers allowing you to select which sim/carrier is in use by the modem. The signal from your cellular connection is then re-broadcasted wirelessly inside your coach or travel trailer using the unit's high-powered WIFI 6, 2x2 MIMO WiFi antennas. You get powerful 2ghz (long-range) and 5ghz (high speed) wireless connectivity that now takes advantage of the latest WIFI 6 technology with much faster throughput than its predecessor while also getting wired ethernet ports for your most demanding devices like VOIP phones or desktop computer/workstations.
Sonic for a Reason
The 'classic goes sonic', why? The BR1 Pro 5G is integrated with the new generation multi-core CPU ensuring delivery of gigabit speeds. Achieving 800% faster speeds than the original BR1 Classic.
Upgrade to Wi-Fi 6
Experience less interference and connect to multiple devices simultaneously.
Deploy with Confidence
Just like the original BR1 Classic, the BR1 Pro 5G has also been certified to meet the standards of a wide array of deployment criterias.
Peplink MAX BR1 Pro 5G Key Features
- Downlink/Uplink Datarate: 5G: 4 Gbps / 700 Mbps, LTE CAT-20: 2 Gbps / 150 Mbps
- 2x 10/100/1000M LAN Port. 1x 10/100/1000/2500M WAN Port. The WAN port can act as a LAN port if needed. 1x 5G Modem with Redundant SIM Slot
- 1 Gbps router throughput
- Simultaneous Dual-Band 2.4GHz/5GHz, Wi-Fi 6, 2X2 MU-MIMO Wi-Fi WAN and/or AP
- Transmit Power 2.4GHz/5GHz: 21 dBm/22 dBm
- SpeedFusion Features [Hot Failover, WAN Smoothing, Bandwidth Bonding] These features require PrimeCare Subscription, complimentary for the first year
- 2 PepVPN Peers are enabled by default. 5 PepVPN Peers are enabled with PrimeCare Subscription, complimentary for the first year
- Package Content: 1x BR1 Pro 5G, 1x 12V2A Power Supply, 4x LTE/5G Antennas, 2x Wi-Fi Dual Band Antenna, 1x GPS Antenna
- Compatible devices: switch, access point, computer, smartphone
- Verizon, AT&T, T-Mobile, U.S. Cellular certified
Peplink MAX BR1 Pro 5G - Technical Specifications
General
- WAN Interface: 1x 10/100/1000/2500M Ethernet / 1 x Embedded 5G/Cat 20 LTE modem with Redundant 4FF Nano SIM Slots
- Downlink/Uplink Datarate: 5G: 4 Gbps / 700 Mbps / LTE CAT-20: 2 Gbps / 150 Mbps
- LAN Interface: 2x 10/100/1000M Ethernet
- WiFi Interface: Simultaneous Dual-Band (2.4GHz / 5GHz) / Wi-Fi 6, 2X2 MU-MIMO / Wi-Fi WAN and/or AP
- Transmit Power: 2.4Ghz: 21 dBm / 5.0GHz: 22 dBm
- Router Throughput: 1 Gbps
- Recommended Users: 1-150
- Antenna Connectors: 4x SMA Female Cellular Antenna Connectors / 2x RP-SMA Female Wi-Fi Antenna Connectors / 1x SMA Female GPS Antenna Connector
- Power Input: 10 - 30V
- Power Consumption: 8 W (nominal), 19 W (max.)
- Dimensions: 4.93" x 5.79" x 1.14" / 125 x 147 x 23 mm
- Weight: 1.28 pounds / 580 g
- Operating Temperature: -40° – 149°F / -40° – 65°C
- Humidity: 15% – 85% (non-condensing)
- Certifications: FCC, CE
Features
- WAN: Support for PPPoE, Static IP, DHCP / WAN Link Health Check / Bandwidth Allowance Monitor / Support for Dynamic DNS services
- LAN: DHCP Server for LAN Clients / Extended DHCP Option / DHCP Reservation / DNS Proxy for LAN Clients / VLAN on LAN Support
- Load Balancing: Intelligent Failover / Session Persistence / Per-Service Load Distribution
- Multiple Algorithms
- Global Positioning System: Integrated GPS / Device Location Map / Location Tracking Data with InControl 2
- Complete VPN Solution: PepVPN/SpeedFusion Hot Failover
- IPsec VPN (Network-to-Network): X.509 Certificate Support
Networking
- NAT and IP Forwarding
- Static Routes
- Port Forwarding
- Many to One, One to One NAT
- NAT Pool
- SIP ALG, H.323 ALG
- UPnP, NAT-PMP
Security
- 128-bit WEP
- WPA & WPA 2
- Stateful Firewall
- DoS Prevention
- Web Blocking
Advanced QoS
- Individual Bandwidth Limit (per user only)
- Application Prioritisation: SIP, HTTPS, VPN QoS / Custom Application QoS
AP Controller
- AP Controller Support
- Wi-Fi Usage Statistics
- Maximum Number of AP Support: 10
Captive Portal Support
- Support for Wired and Wireless LAN clients
- Support RADIUS Authentication
- Time and Usage Quotas on Open Access Mode
- Built-in Customizable Splash Page
- Social Wi-Fi Hotspot support
- External Captive Portal support
Device Management
- Web Administrative Interface
- Command Line Interface
- InControl Cloud Management
- Email Notification
- Active Client and Session Lists
- Bandwidth Usage Statistics
- Syslog Service
- SNMP v1, v2c and v3
Package Contents
- MAX BR1 Pro 5G
- 1x 12V2A Power Supply (ACW-632)
- 4x LTE/5G Antennas (ACW-234)
- 2x Wi-Fi Dual Band Antenna (ACW-341)
- 1x GPS Antenna (ACW-232)
