SA-series Secure Wall Amplifier 100V with UHF Mic + Media Player
SA-series Secure Wall Amplifier 100V with UHF Mic + Media Player

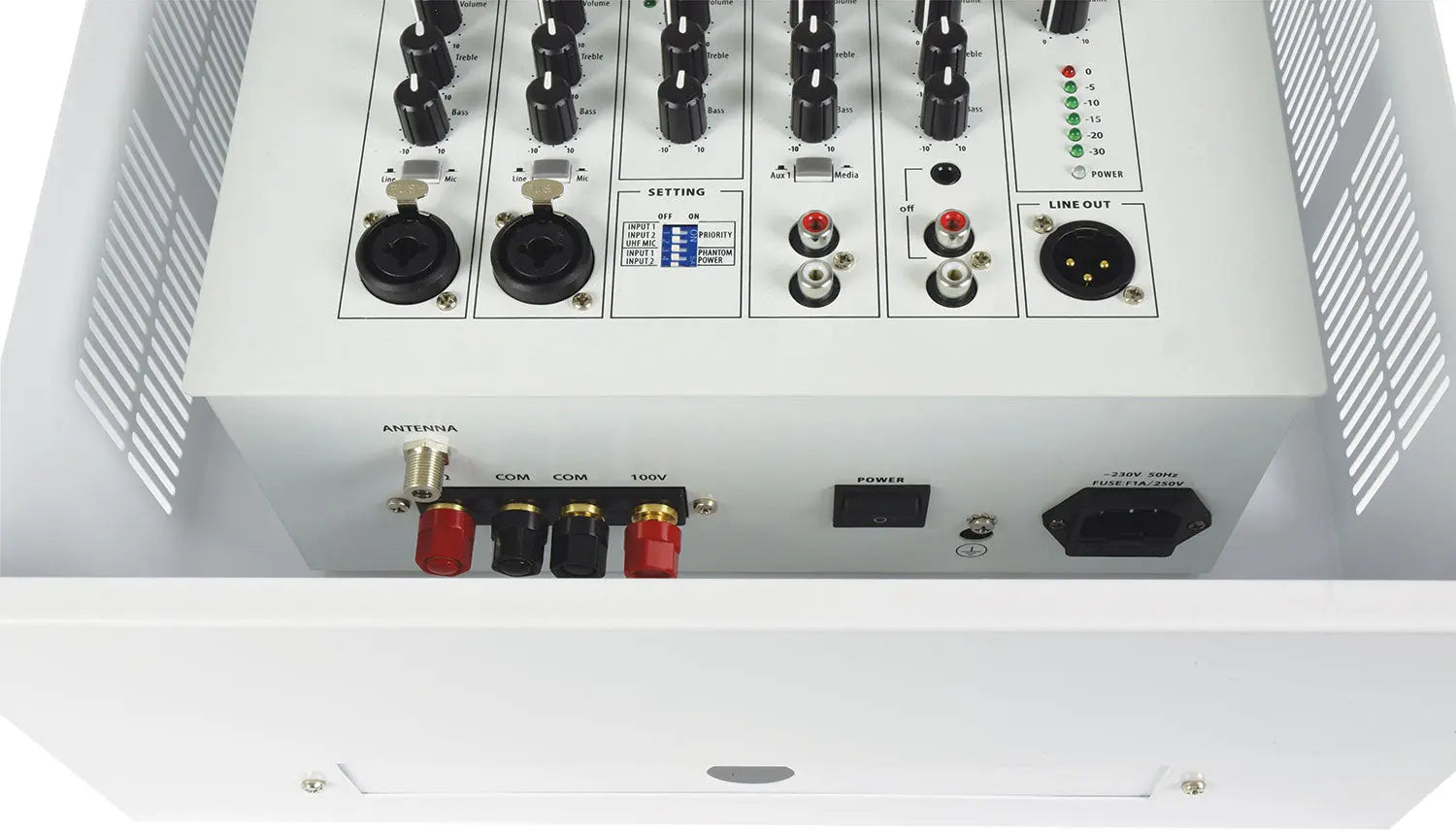

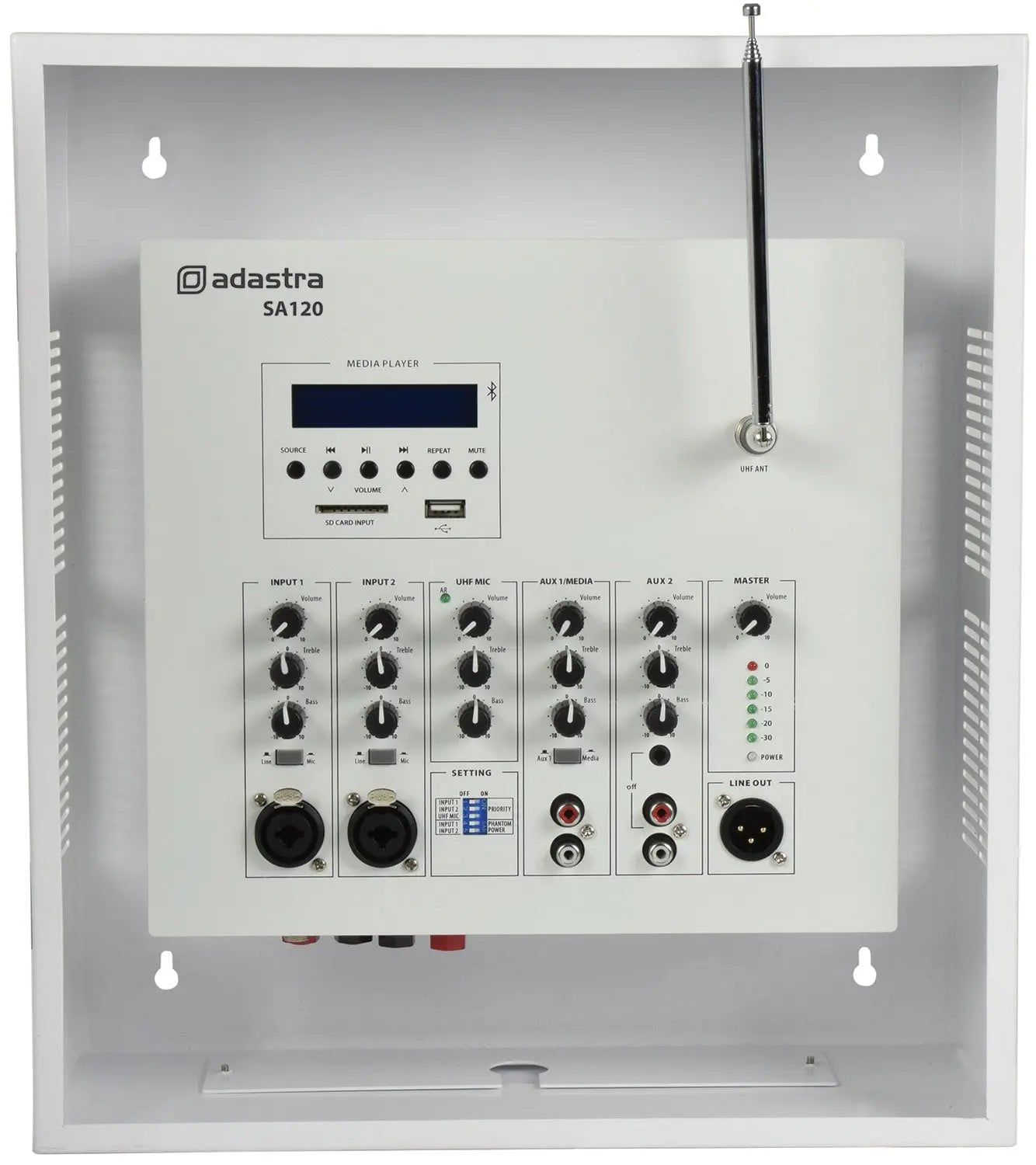

Public address mixer-amplifier built into a surface-mount secure box. A powerful output can drive either 100V line or low impedance speakers from binding post terminals inside the cabinet. The system includes a handheld UHF microphone with an inbuilt receiver and 2 switchable wired mic/line inputs are provided on combo XLR/jack sockets. Each mic input has switchable +48V phantom power and priority override, whch mutes the Aux inputs during voice operation. An internal media player enables playback of audio tracks from USB/SD player, FM tuner or Bluetooth pairing. Alternatively, line inputs can be connected to the Aux 1 RCA sockets or separate Aux 2 RCA/3.5mm jack sockets. The combination of flexible input section and a high efficiency amplifier in a strong, lockable cabinet provides a complete solution for buildings where security and ease of use is essential.
- UHF wireless handheld mic included
- USB/SD media player
- Bluetooth receiver
- 2 switchable mic/line inputs
- Switchable phantom power for condenser mics
- 100V or low impedance operation

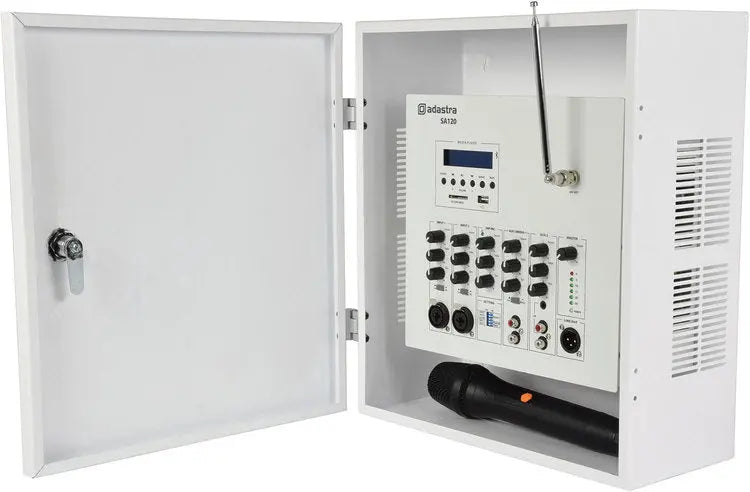

- Secure lockable cabinet
- Weight8.70kg
- FuseF1AL (20x5mm)
- Output power : rms120W
- Power supply170-264Vac, 50Hz (IEC)
- Amplifier : constructionClass-D + output transformer
- Phantom power+20V switchable to each XLR input
- Input impedanceMic: 600 Ohms / Line: 10k Ohms
- Input sensitivityMic: -42dB / Line: -10dB
- Frequency response : mic85Hz-22kHz
- Frequency response : lineLine 1+2: 80Hz-24kHz, Line 3+4: 85Hz-24kHz
- SNRMic: 66dB / Line: 76dB
- THD<0.4% @ 1kHz

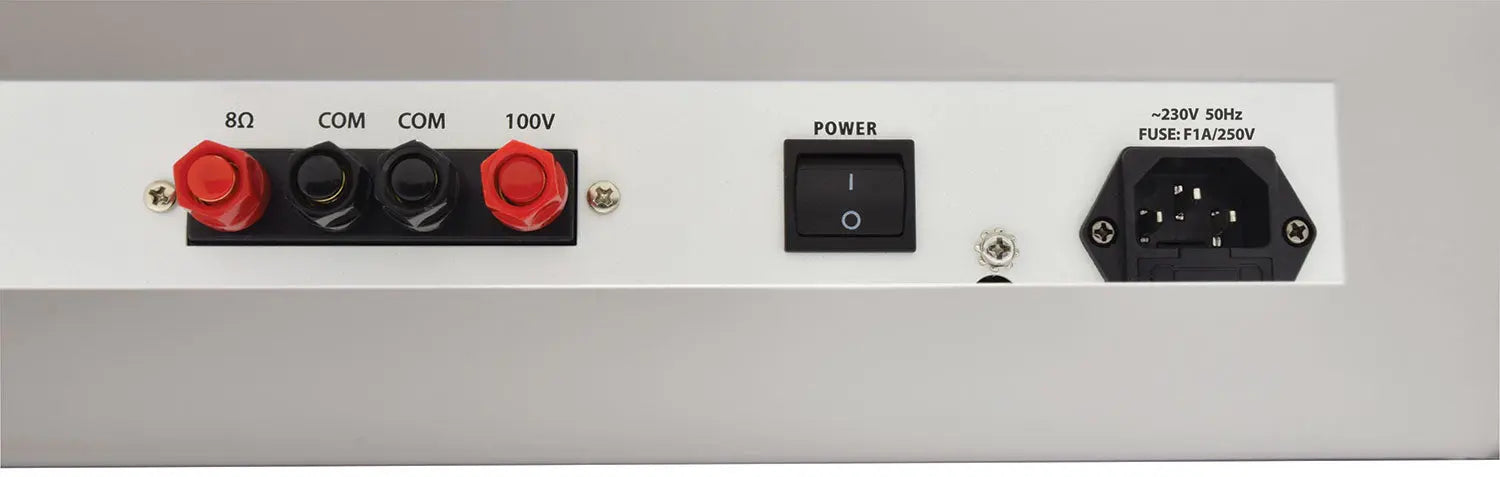

- Speaker outputs8 Ohm / Com / Com / 100V
- Music sourceUSB/SD player, FM tuner, Bluetooth
- Mic/line inputs2 x combo XLR/jack
- Line inputsRCA (Aux 1), RCA or 3.5mm jack (Aux 2)
- Line outputXLR male connector
- EqualizationBass + Treble each channel
- Bluetooth version5.0
- Carrier frequency864.5MHz
- Batteries : handheld transmitter2 x AA (alkaline)
- Wireless range50m (max)
- Dimensions375 x 345 x 160mm
Trade Information
- SKU953.149UK
- Barcode EAN5015972226445
- Tariff code8518500090
- Country of originChina (CN)
- Packaging typeBox Label
- Package dims230 x 450 x 490mm
- Package quantity1 unit
- Nett weight9.4130kg
- Gross weight11.7000kg
- Carton dims230 x 450 x 490mm
- Carton quantity1 unit
- Carton weight11.70kg
SA-series Secure Wall Amplifier 100V with UHF Mic + Media Player
Public address mixer-amplifier built into a surface-mount secure box. A powerful output can drive either 100V line or low impedance speakers from binding post terminals inside the cabinet. The system includes a handheld UHF microphone with an inbuilt receiver and 2 switchable wired mic/line inputs are provided on combo XLR/jack sockets. Each mic input has switchable +48V phantom power and priority override, whch mutes the Aux inputs during voice operation. An internal media player enables playback of audio tracks from USB/SD player, FM tuner or Bluetooth pairing. Alternatively, line inputs can be connected to the Aux 1 RCA sockets or separate Aux 2 RCA/3.5mm jack sockets. The combination of flexible input section and a high efficiency amplifier in a strong, lockable cabinet provides a complete solution for buildings where security and ease of use is essential.
- UHF wireless handheld mic included
- USB/SD media player
- Bluetooth receiver
- 2 switchable mic/line inputs
- Switchable phantom power for condenser mics
- 100V or low impedance operation
- Secure lockable cabinet
- Weight8.70kg
- FuseF1AL (20x5mm)
- Output power : rms120W
- Power supply170-264Vac, 50Hz (IEC)
- Amplifier : constructionClass-D + output transformer
- Phantom power+20V switchable to each XLR input
- Input impedanceMic: 600 Ohms / Line: 10k Ohms
- Input sensitivityMic: -42dB / Line: -10dB
- Frequency response : mic85Hz-22kHz
- Frequency response : lineLine 1+2: 80Hz-24kHz, Line 3+4: 85Hz-24kHz
- SNRMic: 66dB / Line: 76dB
- THD<0.4% @ 1kHz
- Speaker outputs8 Ohm / Com / Com / 100V
- Music sourceUSB/SD player, FM tuner, Bluetooth
- Mic/line inputs2 x combo XLR/jack
- Line inputsRCA (Aux 1), RCA or 3.5mm jack (Aux 2)
- Line outputXLR male connector
- EqualizationBass + Treble each channel
- Bluetooth version5.0
- Carrier frequency864.5MHz
- Batteries : handheld transmitter2 x AA (alkaline)
- Wireless range50m (max)
- Dimensions375 x 345 x 160mm
Trade Information
- SKU953.149UK
- Barcode EAN5015972226445
- Tariff code8518500090
- Country of originChina (CN)
- Packaging typeBox Label
- Package dims230 x 450 x 490mm
- Package quantity1 unit
- Nett weight9.4130kg
- Gross weight11.7000kg
- Carton dims230 x 450 x 490mm
- Carton quantity1 unit
- Carton weight11.70kg
