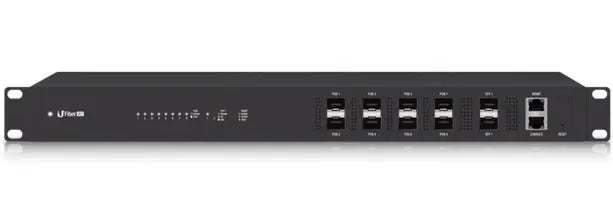

Ubiquiti UFiber OLT GPON Optical Line Terminal (UF‑OLT)
The Ubiquiti UFiber Optical Line Terminal offers eight GPON ports and supports up to 1024 concurrent clients with physical links of up to 20 km in distance. The UFiber OLT distributes high-speed fiber internet to the Nano G units.
Ubiquiti UFiber OLT Features
- Ports: (8) GPON SFP Ports, (2) SFP+ Ports
- Concurrent Clients: 1024 ONUs
- GPON Range: Up to 20 km Link
- GPON Speeds: 2.488 Gbps Upstream (TX), 1.244 Gbps Downstream (RX)
- Wavelengths: 1490 nm Upstream (TX),1310 nm Downstream (RX)
- Max. Power Consumption: 40W
- Power Method: 54VDC PSU Module
- Mounting: 1U Rack-Mountable (Optional)
It has eight ports that each can handle 128 UFiber Nano Gs, supporting a total of 1024 units. Each port provides fast speeds of 2.488 Gbps downstream and 1.244 Gbps upstream. The maximum supported length of the fiber is 20 km through affordable optic cables that have a long lifespan. UFiber OLT is a plug and play solution that works as soon as the cables are plugged in.
General
- Dimensions: 442.4 x 285.6 x 43.7 mm (17.42 x 11.24 x 1.72")
- Weight: 4.40 kg (9.70 lb)
- Weight (with Mount Brackets): 4.495 kg (9.91 lb)
- Networking Interfaces:
- (8) GPON OLT SFP
- (2) 1G/10G SFP+ - Concurrent Clients: 1024 Registered ONUs/ONTs (128 per GPON Port)
- Management Interfaces:
- (1) Ethernet for Out-of-Band Management
- (1) RJ45 Serial Console Port
- (2) Uplink for In-Band Management - GPON Speeds:
- 2.488 Gbps Downstream
- 1.244 Gbps Upstream - Operating Wavelengths:
- 1490 nm TX
- 1310 nm RX - Normal Optical Power Range:
- TX (Class B+): 1.5 to 5 dBm
- RX: -28 to -8 dBm - Max. Fiber Distance: 20 km*
- Power Method:
- 100-240VAC, 100W AC/DC Power Module (Included)
- 38-54VDC, 100W DC/DC Power Module (Optional) - Power Supply: (1) 25V, 100W AC/DC PSU Module (Included)
- Max. Power Consumption: 40W (Excluding SFP Modules)
- Operating Mode: OLT GPON Core and Layer 2 Ethernet Switch
- Advanced QoS: Supports 8 Priority Queues per User Port and Traffic Classification
- Processor Specs: MIPS 1004kc, 880 MHz Dual Core
- Memory Information: 512 MB DDR3, 512 MB NAND
- Operating Temperature: -10 to 45° C (14 to 113° F)
- Operating Humidity: 10 to 90% Noncondensing
- Certifications: CE, FCC, IC
