Ubiquiti UniFi WiFi BaseStationXG UWB-XG - EU-Only

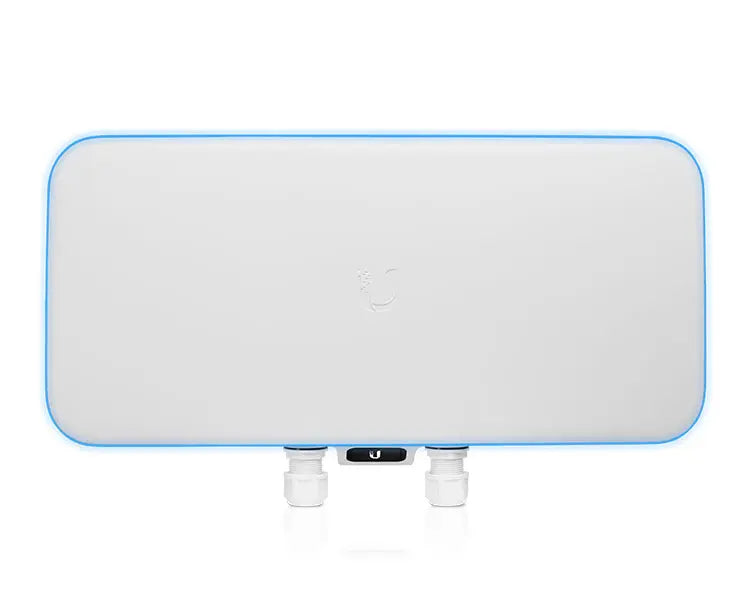

The Ubiquiti UniFi WiFi BaseStationXG features maximum wireless performance combined with wireless security and is ideal for ultra high-density environments such as event venues, festivals, and medium or large-sized stadiums. The UniFi BaseStationXG features the latest in Wi-Fi 802.11ac Wave 2 MU-MIMO technology combined with dedicated security and Bluetooth radios.
Ubiquiti UniFi WiFi BaseStationXG Key Features
- Intuitive UniFi Controller Software
- Dedicated Security Radio with Persistent Threat Management
- Simultaneous 5GHz Tri-Band 4x4 Multi-User MIMO
- Software-Controlled Coverage Patter for Cell-Size Optimisation
The built-in, dedicated security and monitoring radio of the UWB-XG provides visibility into site performance, channel planning, and local interferers.
The UWB-XG is easily accessible through any standard web browser and the UniFi mobile app (iOS or Android). The UniFi Controller software is a powerful software engine ideal for high-density client deployments requiring low latency and high uptime performance.
Ubiquiti UniFi WiFi BaseStationXG Technical Specifications
Overview
- Dimensions (Without Mount): 471.1 x 257.5 x 94.3 mm (18.55 x 10.14 x 3.713")
- Weight (Without Mount): 3.2 kg (7.055 lb)
- Networking Interface:
- (1) 10/100/1000 RJ45 Ethernet Port
- (1) 1/10 Gbps ICM Ethernet Port - Button: Reset
- LED: RGB, Software-Controllable
- Power Method: 802.3bt PoE
- Power Supply: 50VDC, 1.2A Gigabit PoE
- Power Save: Supported
- Beamforming: Supported
- Max. Power Consumption: 31W
- Supported Voltage Range: 44-57VDC
- Max. TX Power: 25 dBm
- MIMO: (3) 4 x 4
- Operating Frequency: 5 GHz
- Antenna: Integrated Dual-Mode Antenna Array
- Antenna Gain:
- Small Cell: 15 dBi
- Large Cell: 10 dBi - Antenna Beamwidth:
- Small Cell: 50°
- Large Cell: 90° - WiFi Standards: 802.11 a/n/r/k/v/ac/ac-wave2
- Wireless Security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES), 802.11w/PMF
- Mounting: VESA-Compatible Mount, Pole/Wall (Brackets Included)
- Operating Temperature: -40 to 70° C (-40 to 158° F)
- Operating Humidity: 5 to 95% Noncondensing
- Dust and Water Resistance: IP67
- Certifications: CE, FCC, IC
Advanced Traffic Management
- VLAN: 802.1Q
- Advanced QoS: Per-User Rate Limiting
- Guest Traffic Isolation: Supported
- WMM: Voice, Video, Best Effort, and Background
- Concurrent Clients: 1500
Supported Data Rates (Mbps)
- Standard: 802.11ac
- Data Rates: 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80), 58 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 160) - Standard: 802.11n
- Data Rates: 6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40) - Standard: 802.11a
- Data Rates: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
