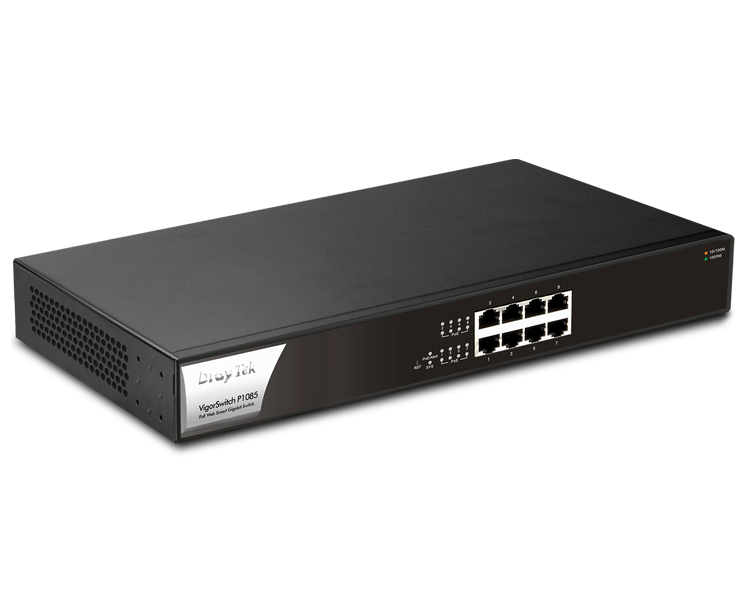

Draytek VigorSwitch P1085 8-Port Web Smart Gigabit PoE+ Switch
Draytek VigorSwitch P1085 8-Port Web Smart Gigabit PoE+ Switch
The Draytek VigorSwitch P1085 is a compact Web Smart Gigabit PoE switch. It has 8x Gigabit Ethernet PoE/PoE+ ports with a PoE power budget of 140 watts. The model offers enterprise-level features to help businesses to improve network security and stability.
Draytek VigorSwitch P1085 Key Features
- 8x PoE GbE PoE/PoE+ Gigabit Ethernet, RJ-45
- 140 watts of PoE Power Budget
- 16 Gbps Switching Capacity
- 11.9 Mpps Forwarding Rate
- PoE (Power over Ethernet)
- PoE Device Check
- Auto Surveillance & Voice VLAN
- QoS (Quality of Service)
- ONVIF-Friendly
- IP Conflict Prevention
- Multiple Admin Accounts
- Central Switch Management
- Energy-Efficient Ethernet
IP Conflict Detection & Prevention
Conflict Detection: VigorSwitch keeps an eye on the environment and notify the administrator of any IP conflicts.
Conflict Prevention: For a more stable network, VigorSwitch can’t only detect but block the misconfigured or malicious IP host.
ONVIF-Friendly
Recognise the ONVIF devices in different VLANs, display surveillance topology, provide UI for video streaming and device maintenance.
ONVIF Snapshot Alert
VigorSwitch keeps pinging on the ONVIF IP cameras and taking snapshots from them periodically, and sends out an email alert with the latest snapshot when a camera not responding.
Interface
- LAN Port: 8x 10/100/1000 Mbps Gigabit Ethernet, RJ-45
- Button: 1 x Factory Reset
PoE
- PoE Capable Ports: 8
- PoE Standards: PoE/PoE+(802.3af/802.3at), Type mode A
- PoE Power Budget: 140 watts
- Power Limit: Yes
- Scheduled On/Off: Yes
- Power Cycle on Port: Manual, Ping Watchdog
Capacity
- Buffer Size: 4.1 Mbit
- Switching Capacity: 16 Gbps
- Forwarding Rate: 11.9 Mpps (64 bytes)
- MAC Address Table: 8k
- Jumbo Frame: Up to 9KB
Networking Standards
- IP Version: IPv4, IPv6
- Ethernet Standards:
- 802.3af PoE
- 802.3at PoE+
- 802.3 10Base-T
- 802.3u 100Base-T
- 802.3ab 1000Base-T
- 802.3x Flow Control
- 802.3 Auto-Negotiation
- 802.1q Tag-based VLAN
- 802.1p Class of Service
- 802.1d STP
- 802.1w RSTP
- 802.3ad LACP
- 802.1x Port Access Control
- 802.1AB LLDP
- 802.3az EEE
VLAN
- Max.Number of VLAN: 256
- VLAN Type:
- 802.1q Tag-based
- MAC-based
- Management VLAN
- Voice VLAN
- Surveillance VLAN - Port Isolation: Yes
ONVIF Surveillance
- Discovery: Yes
- Surveillance Topology: Yes
- Real-Time Video Streaming: Yes
- ONVIF Device Maintenance: Device Info, Reset Factory Default, Time Settings, Reboot
QoS
- Number of QoS Queues: 8
- Queue Scheduling: SPQ, WRR
- CoS (Class of Service): 802.1p CoS, DSCP, CoS-DSCP, IP Precedence
- Rate Limit/Shaping: Yes
Security
- Access Control List: MAC, IPv4, IPv6
- Storm Control: Broadcast, Unknown Multicast, Unknown Unicast
- DoS Defense: Yes
- IP Source Guard: Yes
- IP Conflict Detection: Yes
- IP Conflict Prevention: Yes
- Loop Protection: Yes
Link Aggregation
- Max. Number of Group: 8
- Max. Number of Member in Each Group: 8
- Type: Static, LACP
- Traffic Load Balancing: MAC Address, IP/MAC Address
Multicast
- IGMP Snooping: v2, v3 (BISS)
- IGMP Querier: v2, v3 (BISS)
Management
- Web Interface: HTTP, HTTPS
- Command Line Interface: Telnet, SSH
- OpenVPN Client: Certificate-based authentication
- SNMP: v1, v2, v3
- Mail Alert: Port Status, Port Speed, System Restart, IP Conflict
- LLDP: Yes
- Syslog: Yes
- 2-Level Admin Privilege: Yes
- Multiple Admin Accounts: Yes
- Managed by VigorRouter SWM: Yes
- Managed by VigorConnect: Yes
- Managed by VigorACS 2: Yes
- Config File Export/Import: Yes
- SNTP (Simple Network Time Protocol): Yes
- Diagnostics Tools: Port Mirroring, Ping, Cable Test
Physical
- 19-inch Rack Mountable: Yes, Mouting Kit Included
- Max. Power Consumption: 162 watts
- Dimension: 330mm x 230mm x 44mm
- Weight: 2.27 kg (5 lb)
- Operating Temperature: 0 to 45°C
- Storage Temperature: -20 to 70°C
- Operating Humidity: 10 to 90% non-condensing
- Storage Humidity: 5 to 90% non-condensing
- Certificate: CE FCC
Draytek VigorSwitch P1085 8-Port Web Smart Gigabit PoE+ Switch
The Draytek VigorSwitch P1085 is a compact Web Smart Gigabit PoE switch. It has 8x Gigabit Ethernet PoE/PoE+ ports with a PoE power budget of 140 watts. The model offers enterprise-level features to help businesses to improve network security and stability.
Draytek VigorSwitch P1085 Key Features
- 8x PoE GbE PoE/PoE+ Gigabit Ethernet, RJ-45
- 140 watts of PoE Power Budget
- 16 Gbps Switching Capacity
- 11.9 Mpps Forwarding Rate
- PoE (Power over Ethernet)
- PoE Device Check
- Auto Surveillance & Voice VLAN
- QoS (Quality of Service)
- ONVIF-Friendly
- IP Conflict Prevention
- Multiple Admin Accounts
- Central Switch Management
- Energy-Efficient Ethernet
IP Conflict Detection & Prevention
Conflict Detection: VigorSwitch keeps an eye on the environment and notify the administrator of any IP conflicts.
Conflict Prevention: For a more stable network, VigorSwitch can’t only detect but block the misconfigured or malicious IP host.
ONVIF-Friendly
Recognise the ONVIF devices in different VLANs, display surveillance topology, provide UI for video streaming and device maintenance.
ONVIF Snapshot Alert
VigorSwitch keeps pinging on the ONVIF IP cameras and taking snapshots from them periodically, and sends out an email alert with the latest snapshot when a camera not responding.
Interface
- LAN Port: 8x 10/100/1000 Mbps Gigabit Ethernet, RJ-45
- Button: 1 x Factory Reset
PoE
- PoE Capable Ports: 8
- PoE Standards: PoE/PoE+(802.3af/802.3at), Type mode A
- PoE Power Budget: 140 watts
- Power Limit: Yes
- Scheduled On/Off: Yes
- Power Cycle on Port: Manual, Ping Watchdog
Capacity
- Buffer Size: 4.1 Mbit
- Switching Capacity: 16 Gbps
- Forwarding Rate: 11.9 Mpps (64 bytes)
- MAC Address Table: 8k
- Jumbo Frame: Up to 9KB
Networking Standards
- IP Version: IPv4, IPv6
- Ethernet Standards:
- 802.3af PoE
- 802.3at PoE+
- 802.3 10Base-T
- 802.3u 100Base-T
- 802.3ab 1000Base-T
- 802.3x Flow Control
- 802.3 Auto-Negotiation
- 802.1q Tag-based VLAN
- 802.1p Class of Service
- 802.1d STP
- 802.1w RSTP
- 802.3ad LACP
- 802.1x Port Access Control
- 802.1AB LLDP
- 802.3az EEE
VLAN
- Max.Number of VLAN: 256
- VLAN Type:
- 802.1q Tag-based
- MAC-based
- Management VLAN
- Voice VLAN
- Surveillance VLAN - Port Isolation: Yes
ONVIF Surveillance
- Discovery: Yes
- Surveillance Topology: Yes
- Real-Time Video Streaming: Yes
- ONVIF Device Maintenance: Device Info, Reset Factory Default, Time Settings, Reboot
QoS
- Number of QoS Queues: 8
- Queue Scheduling: SPQ, WRR
- CoS (Class of Service): 802.1p CoS, DSCP, CoS-DSCP, IP Precedence
- Rate Limit/Shaping: Yes
Security
- Access Control List: MAC, IPv4, IPv6
- Storm Control: Broadcast, Unknown Multicast, Unknown Unicast
- DoS Defense: Yes
- IP Source Guard: Yes
- IP Conflict Detection: Yes
- IP Conflict Prevention: Yes
- Loop Protection: Yes
Link Aggregation
- Max. Number of Group: 8
- Max. Number of Member in Each Group: 8
- Type: Static, LACP
- Traffic Load Balancing: MAC Address, IP/MAC Address
Multicast
- IGMP Snooping: v2, v3 (BISS)
- IGMP Querier: v2, v3 (BISS)
Management
- Web Interface: HTTP, HTTPS
- Command Line Interface: Telnet, SSH
- OpenVPN Client: Certificate-based authentication
- SNMP: v1, v2, v3
- Mail Alert: Port Status, Port Speed, System Restart, IP Conflict
- LLDP: Yes
- Syslog: Yes
- 2-Level Admin Privilege: Yes
- Multiple Admin Accounts: Yes
- Managed by VigorRouter SWM: Yes
- Managed by VigorConnect: Yes
- Managed by VigorACS 2: Yes
- Config File Export/Import: Yes
- SNTP (Simple Network Time Protocol): Yes
- Diagnostics Tools: Port Mirroring, Ping, Cable Test
Physical
- 19-inch Rack Mountable: Yes, Mouting Kit Included
- Max. Power Consumption: 162 watts
- Dimension: 330mm x 230mm x 44mm
- Weight: 2.27 kg (5 lb)
- Operating Temperature: 0 to 45°C
- Storage Temperature: -20 to 70°C
- Operating Humidity: 10 to 90% non-condensing
- Storage Humidity: 5 to 90% non-condensing
- Certificate: CE FCC
