Yealink MVC860 Gen 3 Microsoft Teams Rooms System for Medium-to-Large Rooms
- Category:ALL PRODUCTS,Best selling products,IP Video Conferencing,New products,Yealink,Yealink Microsoft Teams Rooms System,Yealink Video Conferencing
Yealink MVC860 Datasheet (PDF)
Yealink MVC860 Gen 3 Microsoft Teams Rooms System for Medium-to-Large Rooms

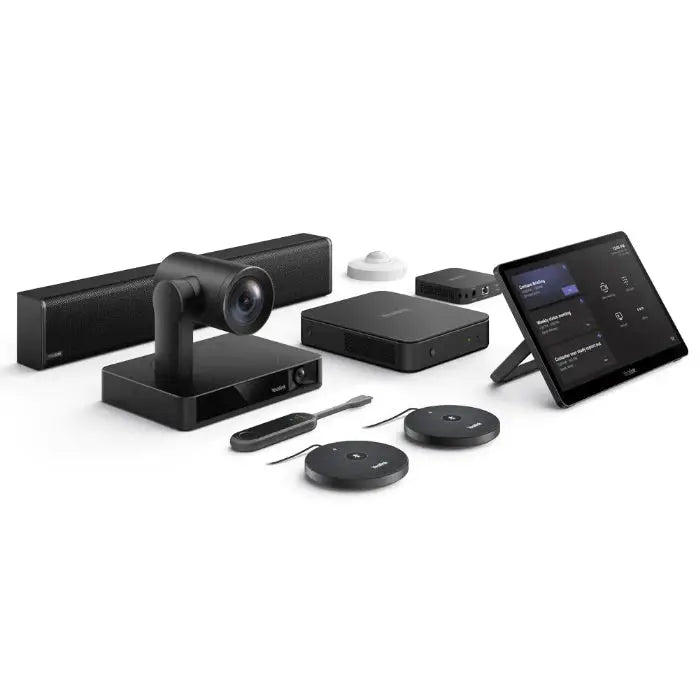

The Yealink MVC860 Microsoft Teams Rooms System (With Audio) is specially crafted for medium and large conference rooms. This next-generation MVC860 (MVC860-C5-713) package includes the MINI-PC MCore Pro, the MTouch Plus touch panel, an intelligent 4K PTZ camera called UVC86, the VCM35 wired microphone, MSpeaker II, WPP30 Wireless Presentation Pod, and the RCH40 Room Cable Hub.
Yealink MVC860 Key Features:
- Comprehensive Hardware Package
- Versatile Connectivity
- High-Quality Video Conferencing
- Designed for Medium and Large Conference Rooms
With the new MINI-PC MCore Pro, you get three HDMI connections with EDID support, ensuring versatility and reliability for conference room setups. The UVC86 camera delivers a 4K, face-to-face, intelligent meeting experience, and you have the flexibility to choose between wired or wireless microphones to meet your specific room requirements. Furthermore, this new Yealink MVC generation boasts a stylish matte black appearance. The Yealink MVC860 Microsoft Teams Rooms System is a comprehensive solution for medium and large conference rooms, offering versatile connectivity, high-quality video conferencing, and a sleek matte black design.
MCORE PRO, GEN-3 MINI-PC
- 11th Gen Intel Core i5
- Memory: 8 GB (2 x 4GB)
- Storage: 128 GB SSD
- 3x HDMI video output with CEC supported
- TPM2.0
- Kernel DMA
- EDID
- Wi-Fi: IEEE 802.11 a/b/g/n/ac/ax
- Bluetooth: BT 5.2
- 1x Yealink MTouch port (RJ45), connect to MTouch Plus / MTouch E2
- 4x USB 3.0 Type-A
- 1x 10/100/1000M Ethernet port
- 1x Power port
- 1x Security lock slot, Integrated cable management
UVC86 USB PTZ CAMERA
- 4K Sensor
- 20.4 HD zoom (12x optical, 1.7x digital)
- Auto-framing
- Speaker tracking
- Presenter tracking, support area Trigger and gesture control
- Multi-Focus
- Picture-in-picture
- Up to 9 preset positions can be set
- Horizontal rotation: 200
- Vertical Rotation: 130
- 1 x HDMI output
- 1 x Yealink microphone port (RJ-45)
- 1 x USB 3.0 Type-B port
- 1 x USB 2.0 Type-A Port
- 1 x Power Port
- 1 x Security Lock
- 1 x Reset Hole
ROOMSENSOR, MEETING ROOM SENSOR
- Detection angle: 120
- Adjustable detection angle: 20
- Operating temperature: 0-40°C
- Operating humidity: 10-95%
- Power: Battery powered, 4-year life
MTOUCH E2, GEN-3 TOUCH PANEL
- 8-inch IPS screen
- 1280x800px resolution
- 10-point capacitive touch screen
- 3.5 mm headset jack
- Angle adjustable bracket (28 -50°)
- 1080P/30FPS FHD for sharing
- Support wired and wireless content sharing
- Built-in Wi-Fi AP for Yealink wireless presentation device
- HDMI/USB-C HD video input
WHAT'S IN THE BOX
- MCore Pro, Gen-3 Mini-PC
- MTouch Plus, Gen-3 touch panel
- UVC86 USB PTZ camera
- RoomSensor
- MSpearker II
- VCM35 Array microphone
- RCH40 Room Cable Hub
- WPP30 wireless presentation pod
- VCM36-W Wi-Fi wireless microphone (Sold Separately)
- VCM38 Ceiling array microphone (Sold Separately)
- CPW65 DECT wireless microphone (Sold Separately)
Yealink MVC860 Datasheet (PDF)
Yealink MVC860 Gen 3 Microsoft Teams Rooms System for Medium-to-Large Rooms
The Yealink MVC860 Microsoft Teams Rooms System (With Audio) is specially crafted for medium and large conference rooms. This next-generation MVC860 (MVC860-C5-713) package includes the MINI-PC MCore Pro, the MTouch Plus touch panel, an intelligent 4K PTZ camera called UVC86, the VCM35 wired microphone, MSpeaker II, WPP30 Wireless Presentation Pod, and the RCH40 Room Cable Hub.
Yealink MVC860 Key Features:
- Comprehensive Hardware Package
- Versatile Connectivity
- High-Quality Video Conferencing
- Designed for Medium and Large Conference Rooms
With the new MINI-PC MCore Pro, you get three HDMI connections with EDID support, ensuring versatility and reliability for conference room setups. The UVC86 camera delivers a 4K, face-to-face, intelligent meeting experience, and you have the flexibility to choose between wired or wireless microphones to meet your specific room requirements. Furthermore, this new Yealink MVC generation boasts a stylish matte black appearance. The Yealink MVC860 Microsoft Teams Rooms System is a comprehensive solution for medium and large conference rooms, offering versatile connectivity, high-quality video conferencing, and a sleek matte black design.
Yealink MVC860 Technical SpecificationsMCORE PRO, GEN-3 MINI-PC
- 11th Gen Intel Core i5
- Memory: 8 GB (2 x 4GB)
- Storage: 128 GB SSD
- 3x HDMI video output with CEC supported
- TPM2.0
- Kernel DMA
- EDID
- Wi-Fi: IEEE 802.11 a/b/g/n/ac/ax
- Bluetooth: BT 5.2
- 1x Yealink MTouch port (RJ45), connect to MTouch Plus / MTouch E2
- 4x USB 3.0 Type-A
- 1x 10/100/1000M Ethernet port
- 1x Power port
- 1x Security lock slot, Integrated cable management
UVC86 USB PTZ CAMERA
- 4K Sensor
- 20.4 HD zoom (12x optical, 1.7x digital)
- Auto-framing
- Speaker tracking
- Presenter tracking, support area Trigger and gesture control
- Multi-Focus
- Picture-in-picture
- Up to 9 preset positions can be set
- Horizontal rotation: 200
- Vertical Rotation: 130
- 1 x HDMI output
- 1 x Yealink microphone port (RJ-45)
- 1 x USB 3.0 Type-B port
- 1 x USB 2.0 Type-A Port
- 1 x Power Port
- 1 x Security Lock
- 1 x Reset Hole
ROOMSENSOR, MEETING ROOM SENSOR
- Detection angle: 120
- Adjustable detection angle: 20
- Operating temperature: 0-40°C
- Operating humidity: 10-95%
- Power: Battery powered, 4-year life
MTOUCH E2, GEN-3 TOUCH PANEL
- 8-inch IPS screen
- 1280x800px resolution
- 10-point capacitive touch screen
- 3.5 mm headset jack
- Angle adjustable bracket (28 -50°)
- 1080P/30FPS FHD for sharing
- Support wired and wireless content sharing
- Built-in Wi-Fi AP for Yealink wireless presentation device
- HDMI/USB-C HD video input
WHAT'S IN THE BOX
- MCore Pro, Gen-3 Mini-PC
- MTouch Plus, Gen-3 touch panel
- UVC86 USB PTZ camera
- RoomSensor
- MSpearker II
- VCM35 Array microphone
- RCH40 Room Cable Hub
- WPP30 wireless presentation pod
- VCM36-W Wi-Fi wireless microphone (Sold Separately)
- VCM38 Ceiling array microphone (Sold Separately)
- CPW65 DECT wireless microphone (Sold Separately)
