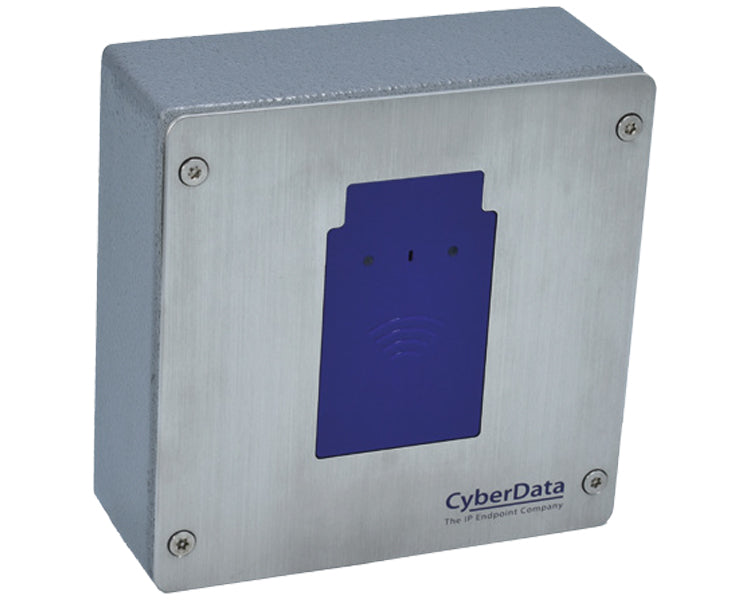

CyberData RFID Secure Access Control Endpoint (011425)
![CyberData RFID Secure Access Control Endpoint (011425)]()
![CyberData RFID Secure Access Control Endpoint (011425)]()
CyberData RFID Secure Access Control Endpoint (011425)
Available:In Stock
- Category:Best selling products,New products
£541.56
CyberData RFID Secure Access Control Endpoint (011425)
The CyberData RFID Secure Access Control Endpoint (011425) uses the existing VoIP or PoE network infrastructure to securely unlock and lock gates or doors. PoE powered and in a secure outdoor-rated case, the RFID Secure Access Control endpoint can store up to 500 access codes. There is a blacklisted code list that when activated, will make a phone call and play a pre-recorded message or can broadcast a multicast message to IP speakers when registered to the VoIP server. Good code and blacklisted code lists can be updated on the web interface or autoprovisioned by a remote server.
This product comes with 5 RFID cards and instructions
CyberData has maintained one of the most comprehensive list of IP PBX servers certified to work with CyberData VoIP products.
CyberData RFID Secure Access Control Endpoint (011425) Key Features
Mifare Plus X 2K/4K cards are supported for a high level of encryption
Alert buzzer
Red/Green lock status lights
Can operate in standalone mode. PBX not required. Future-proof and adaptable when upgrading to new VoIP PBX
Built in time of access scheduler
Local and remote logging with time stamp
NTP time support
Network web management
Blacklisted code alert via dialout and multicast stored message
Network downloadable firmware
Dry contact relay to trigger door lock or unlock gates
Door closure and tamper alert signal
Security Torx screws with driver kit included
CyberData RFID Secure Access Control Endpoint (011425) Technical Specification
Product Specifications
Ethernet I/F: 10/100 Mbps
Protocol: SIP RFC 3261 Compatible
RFID Card Protocol: ISO/IEC 14443 Type A - 13.56 MHz Standard
Power Input: PoE 802.3af compliant or +8 to +12VDC @ 1000mA Regulated Power Supply (not included)
On-Board Relay: 1A @ 30 VDC
Supported RFID cards: Mifare Plus X 2K or 4K
Enrollment Encryption Level: Encrypted to AES 128
Payload Types: G.711 a-law, G.711µ-law, and G.722
IP Rating: IP65
Operating Range:
- Temperature: -40˚ C to 55˚ C (-40˚ F to 131˚ F)
- Humidity: 5-95%, non-condensing
Storage Temperature: -40˚ C to 70˚ C (-40˚ F to 158˚ F)
Storage Altitude: Up to 15,000 ft. (4573 m)
Dimensions:
- 130 mm [5.118 inches] Length
- 57.21 mm [2.252 inches] Width
- 130 mm [5.118 inches] Height
Weight: 0.90 kg [2.0 lbs.]
Boxed Weight: 1.36 kg [3.0 lbs.]
Compliance: CE; EMC Directive – Class A EN 55032 & EN 55024, LV Safety Directive – EN 60950-1, RoHS Compliant, FCC; Part 15 Class A, Industry Canada; ICES-3 Class A, IEEE 802.3 Compliant
Warranty: 2 Years Limited
Part Number: 011425
