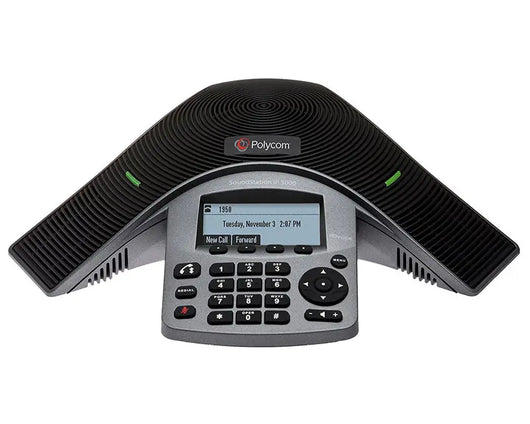

Polycom SoundStation IP5000 IP Conference Phone
Polycom SoundStation IP5000 IP Conference Phone
The Polycom SoundStation IP5000 provides a cost-effective, HD sound quality solution for both small conference rooms and executive offices. The IP5000 features Polycom HD Voice technology, broad SIP interoperability, and a modern design that fits into any office environment.
Polycom IP5000 Key Features
- Polycom HD Voice
- Polycom Acoustic Clarity technology
- 3 sensitive microphones, with 360° coverage
- 7ft microphone pickup for conference rooms with up to 6 participants
- Advanced IP feature support
- Robust interoperability – compatible with most SIP call platforms
With Polycom HD Voice technology, the SoundStation IP5000 conference phone boosts productivity and reduces listener fatigue by turning ordinary conference calls into crystal-clear, interactive conversations. As the IP5000 captures all the frequencies of the human voice, conference calls sound natural without jitter or interference.
Polycom SoundStation IP5000 Conference Phone Technical Specifications
Power
- IEEE 802.3af Power over Ethernet (built in)
- Optional external universal AC power supply kit: 100-240V, 0.4A, 48V/19W
Display
- Size (pixels): 248 x 68 (W x H)
- White LED backlight with custom intensity control
Keypad
- Standard 12-key keypad
- Context-dependent soft keys: 4
- On-hook/Off-hook, redial, mute, volume up/down
- 5-way navigation Menu
Audio Features
- Loudspeaker
- Frequency: 250 – 7,000 HZ
- Volume: Adjustable to peak volume 84 dB at 1/2 meter distance
- Voice activity detection
- Comfort noise fill
- DTMF tone generation / DTMF event RTP payload
- Low-delay audio packet transmission
- Adaptive jitter buffers
- Packet loss concealment
- Acoustic echo cancellation
- Background noise suppression
- Supported Codecs
- G.711 (A-law and µ-law)
- G.729a (Annex A, B)
- G.722
- iLBC
Call Handling Features
- Shared call / bridged line appearance
- Busy Lamp Field (BLF)
- Distinctive incoming call treatment / call waiting
- Call timer
- Call transfer, hold, divert (forward), pickup
- Called, calling, connected party information
- Advanced Local three-way conferencing
- (conference, join, split, hold, resume)
- One-touch speed dial, redial
- Call waiting
- Remote missed call notification
- Automatic off-hook call placement
- Do not disturb function
Other Features
- Local feature-rich GUI
- Time and date display
- Corporate Directory Access (search, dial,
- save to local directory)
- Convenient volume adjustment keys
- User-configurable contact directory and call
- history (missed, placed, and received)
- Customizable call progress tones
- Wav file support for call progress tones
- Unicode UTF-8 character support. Multilingual user interface encompassing Simplified Chinese, Danish, Dutch, English (Canada / US / UK), French, German, Italian, Japanese, Korean,
- Norwegian, Polish, Portuguese, Russian,
- Slovenian, Spanish, Swedish
Network and Provisioning
- Ethernet 10/100 Base-T
- IP Address Configuration: DHCP and Static IP
- Time synchronization with SNTP server
- FTP / TFTP / HTTP / HTTPS server-based central provisioning for mass deployments.
- Provisioning server redundancy supported.
- Web portal for individual unit configuration
- QoS Support -- IEEE 802.1p/Q tagging (VLAN), Layer 3 TOS and DSCP
- Network Address Translation (NAT)
- support - static
- RTCP support (RFC 1889)
- Event logging
- Local dial plan
- Hardware diagnostics
- Status and statistics
- User selectable ringer tones
- Field upgradeable
- Transport Layer Security (TLS)
- Encrypted configuration files
- Digest authentication
- Password login
- Support for URL syntax with password for boot server
- HTTPS secure provisioning
- Support for signed software executables
Safety
- CE Mark
- EN60950-1
- IEC60950-1
- UL60950-1
- CAN/CSA C22.2 No.60950-1-03
- AS/NZS60950-1
- RoHS Compliant
EMC
- FCC Part 15 (CFR 47) Class B
- ICES-003 Class B
- EN55022 Class B
- CISPR22 Class B
- AS/NZS CISPR22 Class B
- VCCI Class B
- EN22024
Protocol Support
IETF SIP (RFC 3261 and companion RFCs)Product Ships With
- Conference Phone Console
- 25 foot Ethernet cable
- Quick Start Guide
Optional AC Power Kit Ships With
- Universal Power Supply
- 7 foot region-specific power cord
- Power Insertion Cable
Environmental Conditions
- Operating temperature: 41 – 104 degrees F
- (5 – 40 degrees C)
- Relative humidity: 20% – 85% (noncondensing)
- Storage temperature: -22 – 131 degrees F
- (-30 – 55 degrees C)
Warranty
1 year
Description
Polycom SoundStation IP5000 IP Conference Phone
The Polycom SoundStation IP5000 provides a cost-effective, HD sound quality solution for both small conference rooms and executive offices. The IP5000 features Polycom HD Voice technology, broad SIP interoperability, and a modern design that fits into any office environment.
Polycom IP5000 Key Features
- Polycom HD Voice
- Polycom Acoustic Clarity technology
- 3 sensitive microphones, with 360° coverage
- 7ft microphone pickup for conference rooms with up to 6 participants
- Advanced IP feature support
- Robust interoperability – compatible with most SIP call platforms
With Polycom HD Voice technology, the SoundStation IP5000 conference phone boosts productivity and reduces listener fatigue by turning ordinary conference calls into crystal-clear, interactive conversations. As the IP5000 captures all the frequencies of the human voice, conference calls sound natural without jitter or interference.
Polycom SoundStation IP5000 Conference Phone Technical Specifications
Power
- IEEE 802.3af Power over Ethernet (built in)
- Optional external universal AC power supply kit: 100-240V, 0.4A, 48V/19W
Display
- Size (pixels): 248 x 68 (W x H)
- White LED backlight with custom intensity control
Keypad
- Standard 12-key keypad
- Context-dependent soft keys: 4
- On-hook/Off-hook, redial, mute, volume up/down
- 5-way navigation Menu
Audio Features
- Loudspeaker
- Frequency: 250 – 7,000 HZ
- Volume: Adjustable to peak volume 84 dB at 1/2 meter distance
- Voice activity detection
- Comfort noise fill
- DTMF tone generation / DTMF event RTP payload
- Low-delay audio packet transmission
- Adaptive jitter buffers
- Packet loss concealment
- Acoustic echo cancellation
- Background noise suppression
- Supported Codecs
- G.711 (A-law and µ-law)
- G.729a (Annex A, B)
- G.722
- iLBC
Call Handling Features
- Shared call / bridged line appearance
- Busy Lamp Field (BLF)
- Distinctive incoming call treatment / call waiting
- Call timer
- Call transfer, hold, divert (forward), pickup
- Called, calling, connected party information
- Advanced Local three-way conferencing
- (conference, join, split, hold, resume)
- One-touch speed dial, redial
- Call waiting
- Remote missed call notification
- Automatic off-hook call placement
- Do not disturb function
Other Features
- Local feature-rich GUI
- Time and date display
- Corporate Directory Access (search, dial,
- save to local directory)
- Convenient volume adjustment keys
- User-configurable contact directory and call
- history (missed, placed, and received)
- Customizable call progress tones
- Wav file support for call progress tones
- Unicode UTF-8 character support. Multilingual user interface encompassing Simplified Chinese, Danish, Dutch, English (Canada / US / UK), French, German, Italian, Japanese, Korean,
- Norwegian, Polish, Portuguese, Russian,
- Slovenian, Spanish, Swedish
Network and Provisioning
- Ethernet 10/100 Base-T
- IP Address Configuration: DHCP and Static IP
- Time synchronization with SNTP server
- FTP / TFTP / HTTP / HTTPS server-based central provisioning for mass deployments.
- Provisioning server redundancy supported.
- Web portal for individual unit configuration
- QoS Support -- IEEE 802.1p/Q tagging (VLAN), Layer 3 TOS and DSCP
- Network Address Translation (NAT)
- support - static
- RTCP support (RFC 1889)
- Event logging
- Local dial plan
- Hardware diagnostics
- Status and statistics
- User selectable ringer tones
- Field upgradeable
- Transport Layer Security (TLS)
- Encrypted configuration files
- Digest authentication
- Password login
- Support for URL syntax with password for boot server
- HTTPS secure provisioning
- Support for signed software executables
Safety
- CE Mark
- EN60950-1
- IEC60950-1
- UL60950-1
- CAN/CSA C22.2 No.60950-1-03
- AS/NZS60950-1
- RoHS Compliant
EMC
- FCC Part 15 (CFR 47) Class B
- ICES-003 Class B
- EN55022 Class B
- CISPR22 Class B
- AS/NZS CISPR22 Class B
- VCCI Class B
- EN22024
Protocol Support
IETF SIP (RFC 3261 and companion RFCs)Product Ships With
- Conference Phone Console
- 25 foot Ethernet cable
- Quick Start Guide
Optional AC Power Kit Ships With
- Universal Power Supply
- 7 foot region-specific power cord
- Power Insertion Cable
Environmental Conditions
- Operating temperature: 41 – 104 degrees F
- (5 – 40 degrees C)
- Relative humidity: 20% – 85% (noncondensing)
- Storage temperature: -22 – 131 degrees F
- (-30 – 55 degrees C)
Warranty
1 year
