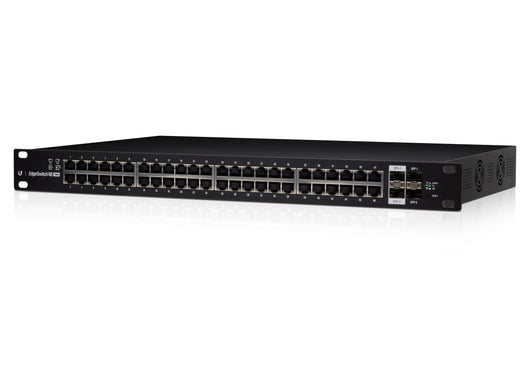

Ubiquiti EdgeSwitch 48 750W Switch (ES-48-750W)

The Ubiquiti EdgeSwitch 48 750W is a 48-Port Layer 2 Gigabit PoE+ Switch that delivers robust performance and intelligent switching for growing networks. The ES-48-750W delivers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.

Ubiquiti EdgeSwitch ES-48-750W Key Features

  • Total Non-Blocking Throughput - 70 Gbps
  • Gigabit RJ45 Ports - 48
  • SFP+ Ports - 2
  • SFP Ports - 2
  • Max. Power Consumption - 750W
  • Supports POE+ IEEE 802.3at/af and 24V Passive PoE
  • Rackmountable
  • Product Model Number: ES-48-750W

The EdgeSwitch 48 750W is a fully managed, PoE+ Gigabit switch, offering an extensive suite of advanced Layer-2 switching features and protocols, along with Layer-3 routing capability.

Enterprise-Class Features

The EdgeSwitch™ supports an extensive suite of advanced Layer-2 switching features and protocols, and also provides Layer-3 routing capability.

Layer3

Optical Fibre Backhaul

Two SFP ports support uplinks of up to 1 Gbps. For high-capacity uplinks, each 48-port model includes two SFP+ ports for uplinks of up to 10 Gbps.

Convenient PoE+ Support

The EdgeSwitch™ features auto-sensing IEEE 802.3af/at and 24V passive PoE to power multiple devices on the network.

GigaPoe

Advanced UI

The comprehensive UI is easy to learn and allows administrators to configure and monitor features in a graphical user interface. For advanced users, a Command-Line Interface (CLI) is available through telnet and SSH.

ES-UI





Deployment Example

Ubiquiti EdgeSwitch ES-48-750W Switch - Technical Specifications

General

  • Dimensions: 485 x 43.7 x 374.6 mm (19.09 x 1.72 x 14.75")
  • Weight: 6.5 kg (14.3 lb)
  • Total Non-Blocking Throughput: 70 Gbps
  • Switching Capacity: 140 Gbps
  • Forwarding Rate: 104.16 Mpps
  • Max. Power Consumption:
    - Includes PoE Output: 750W
    - Excludes PoE Output: 64W
  • Power Method: 100-240VAC/50-60 Hz, Universal Input
  • Power Supply: AC/DC, Internal, 750W DC
  • LEDs Per Port:
    - RJ45 Data Ports: PoE, Speed/Link/Activity
    - SFP+/SFP Data Ports: Speed/Link/Activity
  • Networking Interfaces:
    - (48) 10/100/1000 Mbps RJ45 Ethernet Ports
    - (2) 1/10 Gbps SFP+ Ethernet Ports
    - (2) 1 Gbps SFP Ethernet Ports
  • Management Interface: (1) RJ45 Serial Port, Ethernet In/Out Band
  • Certifications:
    - CE
    - FCC
    - IC
  • Rackmount: Yes, 1U High
  • ESD/EMP Protection: Air: ±24 kV, Contact: ±24 kV
  • Operating Temperature: -5 to 40° C (23 to 104° F)
  • Operating Humidity: 5 to 95% Noncondensing
  • Shock and Vibration: ETSI300-019-1.4 Standard

PoE Per Port

  • PoE Interfaces:
    - POE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)
    - 24VDC Passive PoE (Pins 4, 5+; 7, 8-)
  • Max. PoE+ Wattage per Port by PSE: 34.2W
  • Voltage Range 802.3at Mode: 50–57V
  • Max. Passive PoE Wattage per Port: 17W
  • 24V Passive PoE Voltage Range: 20-27V
