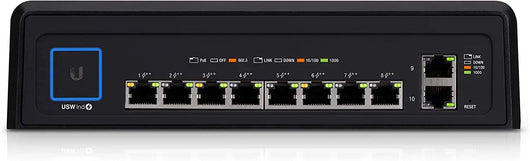

Ubiquiti UniFi Industrial Switch 10-Port (USW-Industrial)

£537.48

The Ubiquiti UniFi Industrial Switch 10-Port (USW-Industrial) is a rugged, fanless Layer 2 managed switch designed for demanding environments. It features 8 auto-sensing 802.3bt PoE++ ports, delivering up to 60W per port, ideal for powering devices like UniFi LED Panels, cameras, and access points. With a total PoE budget of 430W, it ensures reliable power delivery. The plenum-rated, die-cast aluminum enclosure withstands temperatures up to 50°C and offers corrosion resistance. Its compact form factor allows for flexible installation in both horizontal and vertical orientations. Managed via the UniFi Network Controller, it provides centralized control and monitoring for your network

Add to WishlistCompare

apple paygoogle payjcbmasterpaypalvisa
Ask a Question
Vendor: Ubiquiti
SKU: USW-Industrial
Availability: In Stock Pre order Out of stock
Description

Ubiquiti UniFi Industrial Switch 10-Port (USW-Industrial)

The Ubiquiti UniFi USW-Industrial is a managed, plenum-rated, Gigabit Layer 2 switch with auto-sensing 802.3bt PoE++ support.

Ubiquiti UniFi USW-Industrial Key Features

  • Auto-Sensing IEEE 802.3af/at/bt PoE
  • Fanless Industrial-Grade Design
  • Plenum-Rated Form Factor
  • Switching Performance
  • PoE++ Flexibility
  • Ruggedised Industrial Design

PoE++ Flexibility

Eight ports offer auto-sensing 802.3af/at/bt PoE to provide up to 60W of power (per port) to power multiple devices on the network.

PoE++ Flexibility

Ruggedised Industrial Design

The fanless UniFi USW-Industrial is plenum-rated so it can be installed in a horizontal or vertical orientation in plenum spaces. Its die-cast aluminium enclosure has a black, powder coated finish for increased durability and greater resistance to corrosion. It can operate at full 450W power in environments up to 50° C.

rugged industrial design

Compatible Products

The USW-Industrial powers a variety of products, including the UniFi AC Mesh AP, UniFi Video Camera G4 Pro, and multiple UniFi LED Panels, which use 802.3at PoE+.

Compatible Products

Seamless Integration

A single instance of the UniFi Controller running in the cloud can manage multiple UniFi sites within a centralised interface. Each site is logically separated and has its own network monitoring, configuration, maps, statistics, and admin accounts.

seamless integration

Ubiquiti UniFi USW-Industrial Technical Specification

Product Specifications

  • Dimensions: 254 x 235 x 60 mm (10 x 9.25 x 2.36")
  • Weight: 3.85 kg (8.49 lb)
  • Enclosure Characteristics: Die-Cast Aluminium (ADC12) with Black Powder Coated Finish
  • Interfaces:
    - Networking: (8) 10/100/1000 802.3bt PoE RJ45 Ports, (2) 10/100/1000 RJ45 Ports
    - Management: Ethernet In-Band
  • Total Non-Blocking Throughput: 10 Gbps
  • Switching Capacity: 20 Gbps
  • Forwarding Rate: 14.88 Mpps
  • Power Method: 100 - 240 VAC, 50/60 Hz Universal Input
  • Power Supply: AC/DC, Internal, 450W DC
  • Supported Voltage Range: AC Input: 100 to 240VAC, Max. 6A
  • Max. Power Consumption (Excluding PoE Output): 20W
  • LEDs:
    - System: Status
    - RJ45 Ports: PoE, Speed/Link/Activity
  • ESD/EMP Protection: Air: ± 24 kV, Contact: ± 24 kV
  • Shock and Vibration: ETSI300-019-1.4 Standard
  • Operating Temperature:
    - Internal AC/DC @ 450W: -40 to 50° C (-40 to 122° F)
    - Internal AC/DC @ 240W: -40 to 60° C (-40 to 140° F)
  • Operating Humidity: 5 to 95% Noncondensing
  • Certifications: FCC, IC

PoE

  • PoE Interfaces: PoE++ IEEE 802.3bt (Pair A 1, 2+; 3, 6-) (Pair B 4 , 5+; 7, 8-)
  • Max. PoE Wattage per Port by PSE: 802.3bt 60W
  • Voltage Range 802.3 PoE Mode: 50-57V
  • Max. Total PoE Power Budget: 430W
