Ubiquiti UniFi Switch 8 Port - US-8-60W - 5 Pack (PoE on ports 5-8 only) Ubiquiti Switches VoIP Supplies

Ubiquiti UniFi Switch 8 Port - US-8-60W - 5 Pack (PoE on ports 5-8 only)

£519.12

The Ubiquiti UniFi Switch US‑8‑60W (5‑Pack) offers eight Gigabit ports per unit with PoE available on ports 5–8. Ideal for small deployments, it delivers flexible power, easy UniFi integration, and compact reliability

Add to WishlistCompare

apple paygoogle payjcbmasterpaypalvisa
Ask a Question
Vendor: Ubiquiti
SKU: US-8-60W-5
Availability: In Stock Pre order Out of stock
Description
Please Note: Unfortunately due to increasing demand, the Ubiquiti UniFi Switches are facing a global shortage. You can either pre-order today, or check out the Ubiquiti EdgeSwitch Range as an alternative.
Please Note: This product provides 802.3af on ports 5-8 only. No PoE on ports 1-4.
Please Note: If you need a storage cabinet for this product, please select from the Available Product Options above.

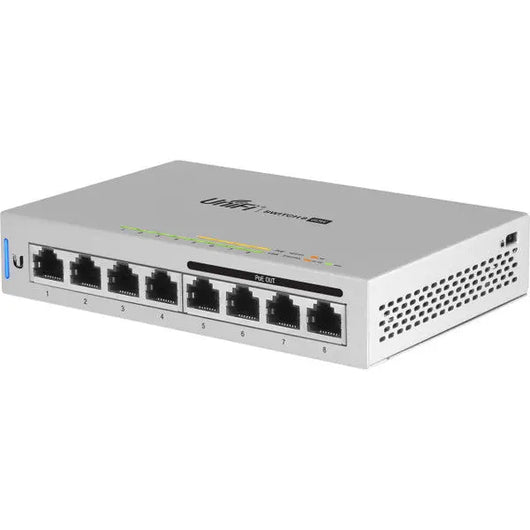

Ubiquiti UniFi Switch 8 Port - US-8-60W - 5 Pack

The Ubiquiti UniFi US-8-60W is an 8-port gigabit switch with four 802.3af PoE ports. The US-8-60W auto-sensing PoE ports deliver up to 15.4W of power per port all in a compact form factor. Alike the other UniFi Switches, the US-8-60W is fully manageable, delivering robust performance for your network.

Ubiquiti US-8 5 Pack Key Features

  • Five units of US-8-60W included
  • (8) Gigabit RJ45 Ports per Switch
  • (4) Auto-Sensing IEEE 802.3af PoE Ports per Switch
  • Non-Blocking Throughput: 8 Gbps
  • Switching Capacity: 16 Gbps
  • Forwarding Rate: 11.9 Mpps
  • Maximum Power Consumption: 12W
  • Power Supply Included

Ubiquiti US-8-60W 5 Pack Technical Specification

General

  • Dimensions
    148.0 x 99.5 x 30.7 mm (5.83 x 3.92 x 1.21")
  • Weight
    432 g (15.24 oz)
  • Enclosure Characteristics
    SGCC Steel
  • Total Non-Blocking Throughput
    8 Gbps
  • Switching Capacity
    16 Gbps
  • Forwarding Rate
    11.9 Mpps
  • Max. Power Consumption
    12W (Excluding PoE Output)
  • Max. PoE Wattage per Port
    15.4W
  • Power Method
    48VDC, Max. 2A
  • Supported Voltage Range
    57VDC to 44VDC
  • Power Supply
    External AC/DC Adapter, 48V, 1.25A
  • LEDs
    PoE (Port 8), Speed/Link/Activity (All Ports)
  • Networking Interfaces
    (8) 10/100/1000 Mbps RJ45 Ports
  • PoE Interfaces
    (4) Ports 5, 6, 7, 8; IEEE802.3af
  • ESD/EMP Protection
    Air: ± 24 kV, Contact: ± 24 kV
  • Operating Temperature
    -5 to 45° C (23 to 113° F)
  • Operating Humidity
    5 to 95% Noncondensing
  • Shock and Vibration
    ETSI300-019-1.4 Standard
  • Certifications
    CE, FCC, ICDatasheet
