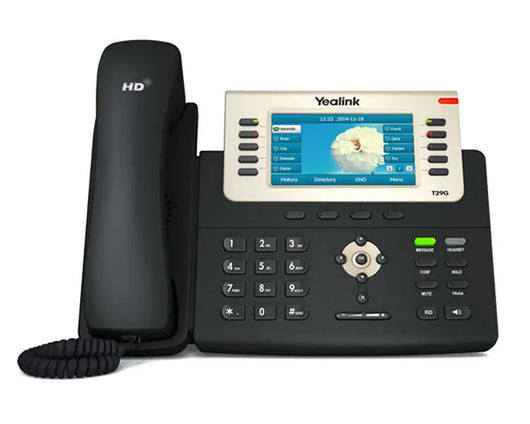

Yealink T29G IP Phone (SIP-T29G)

The Yealink T29G IP Phone is an advanced Gigabit T2x Yealink VoIP Phone, with a 4.3" 480 x 272 -pixel colour display. The T29G has HD voice and features up to 16 SIP accounts.

Yealink T29G Key Features

16 SIP accounts
Yealink Optima HD voice
Dual-port Gigabit Ethernet
4.3" 480 x 272-pixel colour display with backlight
Built-in a USB port, support
Bluetooth headset (Through
USB Dongle)
Paper label free design
PoE support
Headset, EHS support
Integrated stand with 2 adjustable angles
Supports expansion modules
Wall mountable (optional)
Simple, flexible and secure provisioning options

The Yealink T29G supports Gigabit Ethernet, a variety of device connections, including EHS headset and USB. With programmable keys, the T29G IP Phone supports vast productivity-enhancing features.

Yealink T29G VoIP Phone - Technical Specifications

Phone Features

16 SIP accounts
Call hold, mute, DND
One-touch speed dial, hotline
Call forward, call waiting, call transfer
Group listening, SMS, emergency cal
Group listening, SMS
Redial, call return, auto answer
3-way conferencing
Direct IP call without SIP proxy
Ring tone selection/import/delete
Set date time manually or automatically
Dial plan
XML Browser, Action URL/URI

IP PBX features

Busy Lamp Field (BLF)
Bridged Line Apperance(BLA)
Anonymous call, anonymous call rejection
Hot-desking, emergency call
Message Waiting Indicator (MWI)
Voice mail, call park, call pickup
Intercom, paging, music on hold
Call recording

Codecs and Voice Features

HD voice: HD handset, HD speaker
Wideband codec: G.722
Narrowband codec: G.711(A/µ), G.723.1, G.729AB, G.726, GSM, iLBC.
DTMF: In-band, Out-of-band(RFC 2833) and SIP INFO
Full-duplex hands-free speakerphone with AEC
VAD, CNG, AEC, PLC, AJB, AGC

Network Features

SIP v1 (RFC2543), v2 (RFC3261)
Call server redundancy supported
NAT transverse: STUN mode
Proxy mode and peer-to-peer SIP link mode
IP assignment: static/DHCP/PPPoE
HTTP/HTTPS web server
Time and date synchronization using SNTP
UDP/TCP/DNS-SRV(RFC 3263)
QoS: 802.1p/Q tagging (VLAN), Layer 3 ToS DSCP
SRTP for voice
Transport Layer Security (TLS)
HTTPS certificate manager
AES encryption for configuration file
Digest authentication using MD5/MD5-sess
OpenVPN, IEEE802.1X
IPv6

Management

Configuration: browser/phone/auto-provision
Auto provision via FTP/TFTP/HTTP/HTTPS for mass deploy
Auto-provision with PnP
Zero-sp-touch TR-069
Phone lock for personal privacy protection
Reset to factory, reboot
Package tracing export, system log

Physical Features

Stand with 2 adjustable angles
Wall mountable
External universal AC adapter (optional):AC 100~240V input and DC 5V/2A output
Power consumption (PSU): 1.8-5.4W
Power consumption (PoE): 2.1-8.0W
Dimension(W*D*H*T):244mm*213mm*185mm*54mm
Operating humidity: 10~95%
Operating temperature: -10~50°C
