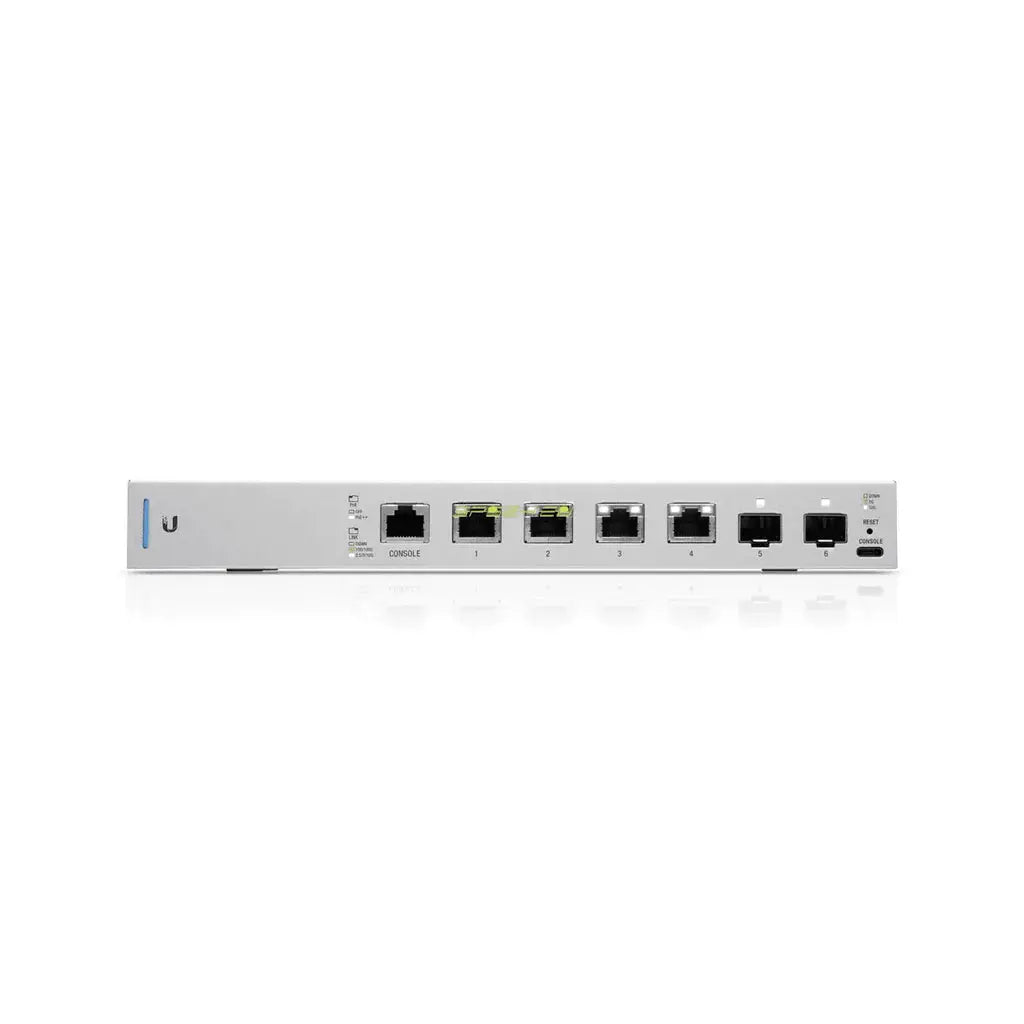

Ubiquiti UniFi XG 10G 6-Port Switch with 802.3bt (US-XG-6POE)
- Category:ALL PRODUCTS,Best selling products,Intel: Revolutionizing Computing Technology,New products,Ubiquiti,Ubiquiti Switches
Ubiquiti UniFi XG 10G 6-Port Switch with 802.3bt (US-XG-6POE)
The Ubiquiti UniFi XG 6PoE is a fully managed, 6-port, 10G switch with 802.3bt PoE++ that allows users to build and expand their network. For deployment versatility, four 10G RJ45 ports offer 802.3bt PoE++ for powering devices, and two SFP+ ports are designed for high‐capacity fibre uplinks.
Ubiquiti UniFi XG 6PoE Key Features
- 4 x 100/1000 Mbps and 2.5/5/10G RJ45 Ports
- 2 x 1/10 SFP+ Ports
- 4 x 802.bt PoE++ Ports
- Non-Blocking Throughput: 60 Gbps
- Switching Capacity: 120 Gbps
- Forwarding Rate: 89.3 Mpps
- Maximum Power Consumption*: 40W
- External 210W AC/DC Adapter (Included)
- DC Input Option (Redundant or Stand-Alone)
802.3bt PoE++
The UniFi Switch XG 6POE offers 802.3bt PoE++ on all four RJ45 ports – up to 60W per port – for devices requiring additional power, such as the UniFi XG APs.
Power Options
The UniFi Switch XG 6POE includes a power adapter and features a DC input with terminal block so you have the option to use a DC power source (not included).
Mounting Versatility
The UniFi Switch XG 6POE can be mounted on a desktop or in a rack (rackmount accessory sold separately).
Deployment Example
General
- Dimensions: 165 x 268.1 x 31.8 mm (6.50 x 10.56 x 1.25")
- Weight: 1.3 kg (2.87 lb)
- Interfaces:
- Networking: 4 x 100/1000 Mbps and 2.5/5/10G RJ45 Ports, 2 x 1/10G SFP+ Ethernet Ports
- Management: Ethernet In-Band, 1 x RJ45 Serial Port Out-of-Band, 1 x USB Type C Port Out-of-Band
- Power Method: 54VDC, 3.88A Power Adapter (Included) or DC Input with Terminal Block
- Power Supply: External AC/DC Adapter (Included) or DC Power Source
- Supported Voltage Range: 44 to 57VDC
- Max. Power Consumption (Excluding PoE Output): 40W
- LEDs
- System: Status
- RJ45 Data Ports: PoE; Speed/Link/Activity
- SFP+ Data Ports: Link/ Activity
- ESD/EMP Protection: Air: ± 18 kV, Contact: ± 12 kV
- Shock and Vibration: ETSI300-019-1.4 Standard
- Operating Temperature: -5 to 45° C (23 to 113° F)
- Operating Humidity: 5 to 95% Noncondensing
- Certifications: CE, FCC, IC
PoE
- PoE Interfaces: PoE++ IEEE 802.3bt (Pair A 1, 2+; 3, 6-) (Pair B 4 , 5+; 7, 8-)
- Max. 802.3bt Wattage per Port by PSE: 60W
- Voltage Range 802.3af Mode: 44-57V
- Voltage Range 802.3at/bt Mode: 50-57V
