Ubiquiti UniFi XG 10G 6-Port Switch with 802.3bt (US-XG-6POE)

Available:In Stock
£624.84

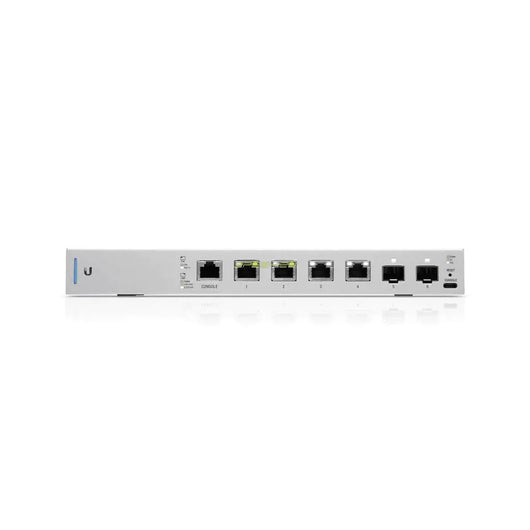

Ubiquiti UniFi XG 10G 6-Port Switch with 802.3bt (US-XG-6POE)

The Ubiquiti UniFi XG 6PoE is a fully managed, 6-port, 10G switch with 802.3bt PoE++ that allows users to build and expand their network. For deployment versatility, four 10G RJ45 ports offer 802.3bt PoE++ for powering devices, and two SFP+ ports are designed for high‐capacity fibre uplinks.

Ubiquiti UniFi XG 6PoE Key Features

  • 4 x 100/1000 Mbps and 2.5/5/10G RJ45 Ports
  • 2 x 1/10 SFP+ Ports
  • 4 x 802.bt PoE++ Ports
  • Non-Blocking Throughput: 60 Gbps
  • Switching Capacity: 120 Gbps
  • Forwarding Rate: 89.3 Mpps
  • Maximum Power Consumption*: 40W
  • External 210W AC/DC Adapter (Included)
  • DC Input Option (Redundant or Stand-Alone)


802.3bt PoE++

The UniFi Switch XG 6POE offers 802.3bt PoE++ on all four RJ45 ports – up to 60W per port – for devices requiring additional power, such as the UniFi XG APs.

Power Options

 The UniFi Switch XG 6POE includes a power adapter and features a DC input with terminal block so you have the option to use a DC power source (not included).

Mounting Versatility

The UniFi Switch XG 6POE can be mounted on a desktop or in a rack (rackmount accessory sold separately).

Deployment Example
Deployment Example

Ubiquiti UniFi XG 6PoE Technical Specifications

General

  • Dimensions: 165 x 268.1 x 31.8 mm (6.50 x 10.56 x 1.25")
  • Weight: 1.3 kg (2.8
