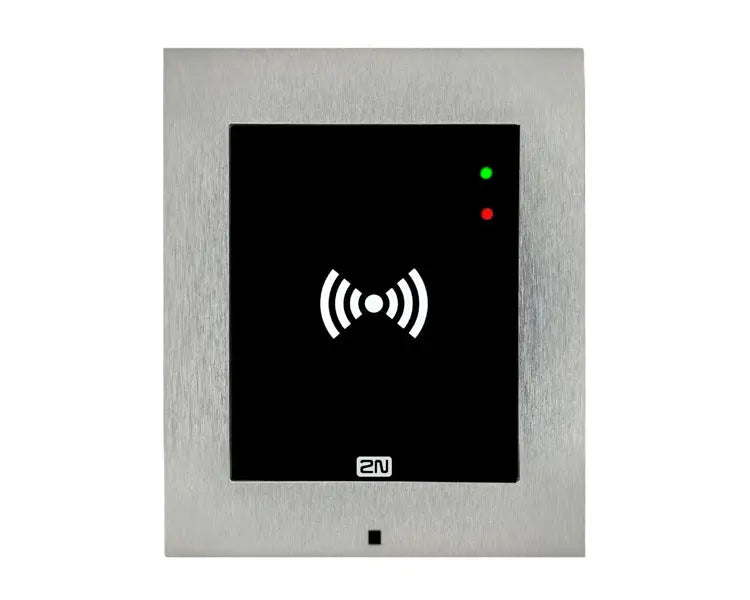

2N Access Unit 2.0 RFID 125kHz (9160341)
- Category:2N Access Unit,2N SIP Door Entry System,ALL PRODUCTS,Best selling products,New products,SIP Door Entry System
2N Access Unit 2.0 RFID 125kHz (9160341)
The 2N Access Unit 2.0 RFID 125kHz is an access control unit based purely on IP technology. It combines the functions of a traditional door controller and RFID reader with 125kHz frequency. Thanks to wireless NFC technology, you can easily open the door using a smartphone with the 2N Mobile Key application installed.
2N Access Unit 2.0 RFID 125kHz Key Features
- Minimum wiring requirements
- Same design as IP intercoms
- NFC support
- Advanced event reporting
- Monitors entrances and exits
- Remote configuration and administration
- Attendance terminal
Interfaces
- Power supply: PoE and/or 12V/1A DC
- PoE: 802.3af (Class 0–12.95W)
- LAN: 10/100BASE-TX with Auto-MDIX, RJ-45 modular jack
- Recommended cabling: Cat-5e or better
- Active switch output: 8 to 12V DC / max 600mA
- Passive switch: NO/NC contacts, up to 30V 1A AC/DC
- Inputs: 2 inputs – in passive / active mode (-30V to + 30V DC)
- Tamper switch: Native part of the 2N Access Unit 2.0
- Audio: Buzzer and microphone
RFID Card Reader
- Frequency: 125kHz
- 125kHz (EM4100, EM4102, Prox)
- reads UID (CSN)
- reads PACs ID (HID iClass cards with SIO object)
Mechanical Properties
- Cover: Robust zinc cast frame with surface finish (nickel and black colour)
- Operating temperature: -40°C to 60°C
- Storage temperature: -40°C to 70°C
- Operating relative humidity: 10%-95% (non-condensing)
- Dimensions (1-module solution):
- Wall (surface) mounting frame: 107 (W) x 130 (H) x 28 (D) mm
- Flush mounting frame: 130 (W) x 153 (H) x 5 (D) mm
- Flush mounting box (minimum hole): 108 (W) x 131 (H) x 45 (D) mm
- Weight: max. 0.8kg - Cover rating: IP54 and IK08
Expansion Modules (not included)
- 2N Access Unit 2.0 supports modules from the 2N® IP Verso intercom: RFID card readers, keypad, fingerprint, Bluetooth, I/O module, Wiegand, etc.
2N Access Unit 2.0 RFID 125kHz (9160341)
The 2N Access Unit 2.0 RFID 125kHz is an access control unit based purely on IP technology. It combines the functions of a traditional door controller and RFID reader with 125kHz frequency. Thanks to wireless NFC technology, you can easily open the door using a smartphone with the 2N Mobile Key application installed.
2N Access Unit 2.0 RFID 125kHz Key Features
- Minimum wiring requirements
- Same design as IP intercoms
- NFC support
- Advanced event reporting
- Monitors entrances and exits
- Remote configuration and administration
- Attendance terminal
Interfaces
- Power supply: PoE and/or 12V/1A DC
- PoE: 802.3af (Class 0–12.95W)
- LAN: 10/100BASE-TX with Auto-MDIX, RJ-45 modular jack
- Recommended cabling: Cat-5e or better
- Active switch output: 8 to 12V DC / max 600mA
- Passive switch: NO/NC contacts, up to 30V 1A AC/DC
- Inputs: 2 inputs – in passive / active mode (-30V to + 30V DC)
- Tamper switch: Native part of the 2N Access Unit 2.0
- Audio: Buzzer and microphone
RFID Card Reader
- Frequency: 125kHz
- 125kHz (EM4100, EM4102, Prox)
- reads UID (CSN)
- reads PACs ID (HID iClass cards with SIO object)
Mechanical Properties
- Cover: Robust zinc cast frame with surface finish (nickel and black colour)
- Operating temperature: -40°C to 60°C
- Storage temperature: -40°C to 70°C
- Operating relative humidity: 10%-95% (non-condensing)
- Dimensions (1-module solution):
- Wall (surface) mounting frame: 107 (W) x 130 (H) x 28 (D) mm
- Flush mounting frame: 130 (W) x 153 (H) x 5 (D) mm
- Flush mounting box (minimum hole): 108 (W) x 131 (H) x 45 (D) mm
- Weight: max. 0.8kg - Cover rating: IP54 and IK08
Expansion Modules (not included)
- 2N Access Unit 2.0 supports modules from the 2N® IP Verso intercom: RFID card readers, keypad, fingerprint, Bluetooth, I/O module, Wiegand, etc.
