Description

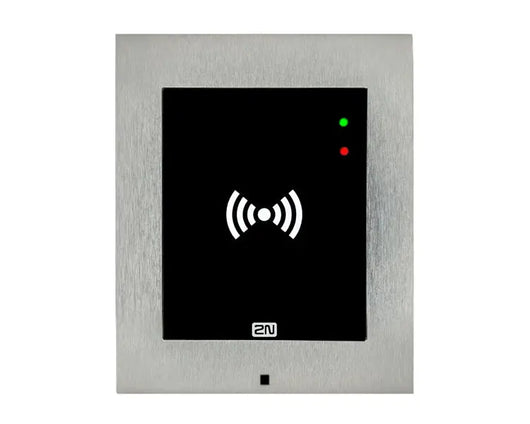

2N Access Unit 2.0 RFID 125kHz (9160341)
The 2N Access Unit 2.0 RFID 125kHz is an access control unit based purely on IP technology. It combines the functions of a traditional door controller and RFID reader with 125kHz frequency. Thanks to wireless NFC technology, you can easily open the door using a smartphone with the 2N Mobile Key application installed.
2N Access Unit 2.0 RFID 125kHz Key Features
- Minimum wiring requirements
- Same design as IP intercoms
- NFC support
- Advanced event reporting
- Monitors entrances and exits
- Remote configuration and administration
- Attendance terminal
2N Access Unit 2.0 RFID 125kHz Technical Specification
Interfaces
- Power supply: PoE and/or 12V/1A DC
- PoE: 802.3af (Class 0–12.95W)
- LAN: 10/100BASE-TX with Auto-MDIX, RJ-45 modular jack
- Recommended cabling: Cat-5e or better
- Active switch output: 8 to 12V DC / max 600mA
- Passive switch: NO/NC contacts, up to 30V 1A AC/DC
- Inputs: 2 inputs – in passive / active mode (-30V to + 30V DC)
- Tamper switch: Native part of the 2N Access Unit 2.0
- Audio: Buzzer and microphone
RFID Card Reader
- Frequency: 125kHz
- 125kHz (EM4100, EM4102, Prox)
- reads UID (CSN)
- reads PACs ID (HID iClass cards with SIO object)
Mechanical Properties
- Cover: Robust zinc cast frame with surface finish (nickel and black colour)
- Operating temperature: -40°C to 60°C
- Storage temperature: -40°C to 70°C
- Operating relative humidity: 10%-95% (non-condensing)
- Dimensions (1-module solution):
- Wall (surface) mounting frame: 107 (W) x 130 (H) x 28 (D) mm
- Flush mounting frame: 130 (W) x 153 (H) x 5 (D) mm
- Flush mounting box (minimum hole): 108 (W) x 131 (H) x 45 (D) mm
- Weight: max. 0.8kg - Cover rating: IP54 and IK08
Expansion Modules (not included)
- 2N Access Unit 2.0 supports modules from the 2N® IP Verso intercom: RFID card readers, keypad, fingerprint, Bluetooth, I/O module, Wiegand, etc.
Download
Download File
2N Access Unit 2.0 RFID 125kHz (9160341)
£607.19
