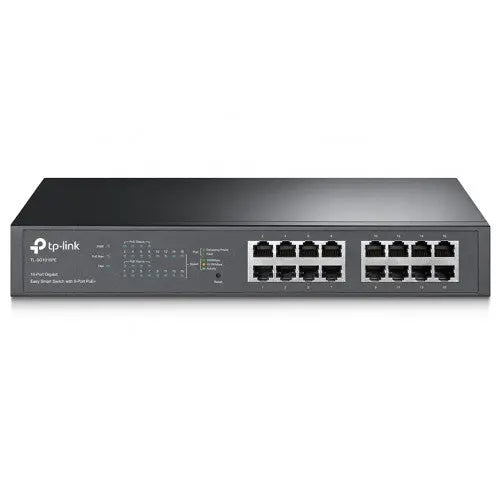

TP-Link 16-Port Gigabit Easy Smart Switch with 8-Port PoE+ (TL-SG1016PE)
TP-Link 16-Port Gigabit Easy Smart Switch with 8-Port PoE+ (TL-SG1016PE)
The TP-Link TL-SG1016PE is an 16-Port Gigabit Desktop/Rack mountable Switch with 8 ports supporting the PoE+ standard. It provides a simple way to expand a wired network by transferring power and data over a single Ethernet Cable. With a total power budget of 150 W*, up to 30 W per port, TL-SG1016PE powers more high-powered devices such as wireless Access Points (APs), IP Cameras or IP Phones. Moreover, with innovative energy-efficient technology, the TL-SG1016PE saves the power consumption, making it an eco-friendly solution for your business network.
TP-Link TL-SG1016PE Key Features
- 16x 10/100/1000Mbps RJ45 ports
- Equipped with 8x PoE+ supported ports to transfer data and power over a single cable
- With a total PoE power budget of 150 W,* up to 30 W per port
- Works with IEEE 802.3af/at compliant devices, expanding home and office networks
- Simple network set-up on top of plug-and-play connectivity
- Web-based user interface and management utility simplify configuration
TP-Link TL-SG1016PE - Technical Specifications
Hardware Features
- Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
- Interface:
- 16x 10/100/1000 Mbps RJ45 Ports
- AUTO Negotiation/AUTO MDI/MDIX - Network Media:
- 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
- EIA/TIA-568 100Ω STP (maximum 100m)
- 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
- EIA/TIA-568 100Ω STP (maximum 100m)
- 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
- EIA/TIA-568 100Ω STP (maximum 100m) - Fan Quantity: 1
- Physical Security Lock: Yes
- PoE Ports (RJ45):
- Standard: 802.3 af/at compliant
- PoE Ports: Port 1 to Port 8- PoE Power Budget: 150 W - Dimensions ( W x D x H ): 11.6x7.1x1.7 in (294x180x44 mm)
- Mounting: Rack Mountable/ Desktop
- Max Power Consumption:
- 8.07 W (110 V/ 60 Hz with no PD connected)
- 177.67 W (110 V/60 Hz with 150 W PD connected) - Max Heat Dissipation:
- 27.52 BTU/h (with no PD connected)
- 605.85 BTU/h (with 150 W PD connected)
Performance
- Switching Capacity: 32 Gbps
- Packet Forwarding Rate: 23.8 Mbps
- MAC Address Table: 8K
- Packet Buffer Memory: 4.1 Mbit
- Jumbo Frame: 10 KB
Software Features
- Quality of Service:
- Support Port-Based/802.1p/DSCP priority
- Support 4 priority queues
- Rate Limit
- Storm Control - L2 Features:
- IGMP Snooping V1/V2/V3
- Static Link Aggregation
- Port Mirroring
- Cable Diagnostics
- Loop Prevention - VLAN:
- Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
- MTU/Port/Tag VLAN - Management:
- Web-based GUI
- Easy Smart Configuration Utility - Transmission Method: Store-And-Forward
Other
- Certification: FCC, CE, RoHS
- Package Contents:
- TL-SG1016PE
- Power Cord
- Installation Guide
- Resource CD
- Rackmount Kit
- Rackmount Kit - System Requirements: MicrosoftR WindowsR for running Utility
- Environment:
- Operating Temperature: 0–50 ℃ (32–122 ℉)
- Storage Temperature: -40–70 ℃ (-40–158 ℉)
- Operating Humidity: 10–90% non-condensing
- Storage Humidity: 5–90% non-condensing
TP-Link 16-Port Gigabit Easy Smart Switch with 8-Port PoE+ (TL-SG1016PE)
The TP-Link TL-SG1016PE is an 16-Port Gigabit Desktop/Rack mountable Switch with 8 ports supporting the PoE+ standard. It provides a simple way to expand a wired network by transferring power and data over a single Ethernet Cable. With a total power budget of 150 W*, up to 30 W per port, TL-SG1016PE powers more high-powered devices such as wireless Access Points (APs), IP Cameras or IP Phones. Moreover, with innovative energy-efficient technology, the TL-SG1016PE saves the power consumption, making it an eco-friendly solution for your business network.
TP-Link TL-SG1016PE Key Features
- 16x 10/100/1000Mbps RJ45 ports
- Equipped with 8x PoE+ supported ports to transfer data and power over a single cable
- With a total PoE power budget of 150 W,* up to 30 W per port
- Works with IEEE 802.3af/at compliant devices, expanding home and office networks
- Simple network set-up on top of plug-and-play connectivity
- Web-based user interface and management utility simplify configuration
TP-Link TL-SG1016PE - Technical Specifications
Hardware Features
- Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
- Interface:
- 16x 10/100/1000 Mbps RJ45 Ports
- AUTO Negotiation/AUTO MDI/MDIX - Network Media:
- 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
- EIA/TIA-568 100Ω STP (maximum 100m)
- 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
- EIA/TIA-568 100Ω STP (maximum 100m)
- 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
- EIA/TIA-568 100Ω STP (maximum 100m) - Fan Quantity: 1
- Physical Security Lock: Yes
- PoE Ports (RJ45):
- Standard: 802.3 af/at compliant
- PoE Ports: Port 1 to Port 8- PoE Power Budget: 150 W - Dimensions ( W x D x H ): 11.6x7.1x1.7 in (294x180x44 mm)
- Mounting: Rack Mountable/ Desktop
- Max Power Consumption:
- 8.07 W (110 V/ 60 Hz with no PD connected)
- 177.67 W (110 V/60 Hz with 150 W PD connected) - Max Heat Dissipation:
- 27.52 BTU/h (with no PD connected)
- 605.85 BTU/h (with 150 W PD connected)
Performance
- Switching Capacity: 32 Gbps
- Packet Forwarding Rate: 23.8 Mbps
- MAC Address Table: 8K
- Packet Buffer Memory: 4.1 Mbit
- Jumbo Frame: 10 KB
Software Features
- Quality of Service:
- Support Port-Based/802.1p/DSCP priority
- Support 4 priority queues
- Rate Limit
- Storm Control - L2 Features:
- IGMP Snooping V1/V2/V3
- Static Link Aggregation
- Port Mirroring
- Cable Diagnostics
- Loop Prevention - VLAN:
- Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
- MTU/Port/Tag VLAN - Management:
- Web-based GUI
- Easy Smart Configuration Utility - Transmission Method: Store-And-Forward
Other
- Certification: FCC, CE, RoHS
- Package Contents:
- TL-SG1016PE
- Power Cord
- Installation Guide
- Resource CD
- Rackmount Kit
- Rackmount Kit - System Requirements: MicrosoftR WindowsR for running Utility
- Environment:
- Operating Temperature: 0–50 ℃ (32–122 ℉)
- Storage Temperature: -40–70 ℃ (-40–158 ℉)
- Operating Humidity: 10–90% non-condensing
- Storage Humidity: 5–90% non-condensing
