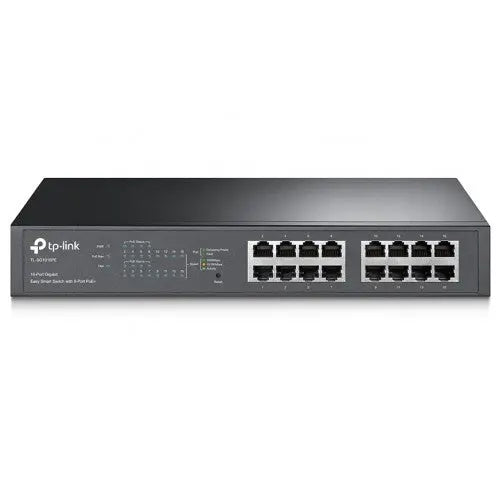

TP-Link 16-Port Gigabit Easy Smart Switch with 8-Port PoE+ (TL-SG1016PE)
Review: 5 - "A masterpiece of literature" by , written on May 4, 20020
Great
Categories

TP-Link 16-Port Gigabit Easy Smart Switch with 8-Port PoE+ (TL-SG1016PE)

Available:In Stock
£150.00

TP-Link 16-Port Gigabit Easy Smart Switch with 8-Port PoE+ (TL-SG1016PE)

The TP-Link TL-SG1016PE is an 16-Port Gigabit Desktop/Rack mountable Switch with 8 ports supporting the PoE+ standard. It provides a simple way to expand a wired network by transferring power and data over a single Ethernet Cable. With a total power budget of 150 W*, up to 30 W per port, TL-SG1016PE powers more high-powered devices such as wireless Access Points (APs), IP Cameras or IP Phones. Moreover, with innovative energy-efficient technology, the TL-SG1016PE saves the power consumption, making it an eco-friendly solution for your business network.

TP-Link TL-SG1016PE Key Features

  • 16x 10/100/1000Mbps RJ45 ports
  • Equipped with 8x PoE+ supported ports to transfer data and power over a single cable
  • With a total PoE power budget of 150 W,* up to 30 W per port
  • Works with IEEE 802.3af/at compliant devices, expanding home and office networks
  • Simple network set-up on top of plug-and-play connectivity
  • Web-based user interface and management utility simplify configuration
8 ports of TL-SG1016PE support Power over Ethernet Plus (PoE+) standard which can automatically detect and supply power to any IEEE 802.3af/at compliant device(s). In this situation, the electrical power is transmitted along with data in a single cable, allowing you to expand your network where there are electrical cables or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones.

TP-Link TL-SG1016PE - Technical Specifications

Hardware Features

  • Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
  • Interface:
    - 16x 10/100/1000 Mbps RJ45 Ports
    - AUTO Negotiation/AUTO MDI/MDIX
  • Network Media:
    - 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
    - EIA/TIA-568 100Ω STP (maximum 100m)
    - 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
    - EIA/TIA-568 100Ω STP (maximum 100m)
    - 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
    - EIA/TIA-568 100Ω STP (maximum 100m)
  • Fan Quantity: 1
  • Physical Security Lock: Yes
  • PoE Ports (RJ45):
    - Standard: 802.3 af/at compliant
    - PoE Ports: Port 1 to Port 8- PoE Power Budget: 150 W
  • Dimensions ( W x D x H ): 11.6x7.1x1.7 in (294x180x44 mm)
  • Mounting: Rack Mountable/ Desktop
  • Max Power Consumption:
    - 8.07 W (110 V/ 60 Hz with no PD connected)
    - 177.67 W (110 V/60 Hz with 150 W PD connected)
  • Max Heat Dissipation:
    - 27.52 BTU/h (with no PD connected)
    - 605.85 BTU/h (with 150 W PD connected)

Performance

  • Switching Capacity: 32 Gbps
  • Packet Forwarding Rate: 23.8 Mbps
  • MAC Address Table: 8K
  • Packet Buffer Memory: 4.1 Mbit
  • Jumbo Frame: 10 KB

Software Features

  • Quality of Service:
    - Support Port-Based/802.1p/DSCP priority
    - Support 4 priority queues
    - Rate Limit
    - Storm Control
  • L2 Features:
    - IGMP Snooping V1/V2/V3
    - Static Link Aggregation
    - Port Mirroring
    - Cable Diagnostics
    - Loop Prevention
  • VLAN:
    - Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
    - MTU/Port/Tag VLAN
  • Management:
    - Web-based GUI
    - Easy Smart Configuration Utility
  • Transmission Method: Store-And-Forward

Other

  • Certification: FCC, CE, RoHS
  • Package Contents:
    TL-SG1016PE
    - Power Cord

    - Installation Guide
    - Resource CD
    - Rackmount Kit
    - Rackmount Kit
  • System Requirements: MicrosoftR WindowsR for running Utility
  • Environment:
    Operating Temperature: 0–50 ℃ (32–122 ℉)
    - Storage Temperature: -40–70 ℃ (-40–158 ℉)
    - Operating Humidity: 10–90% non-condensing
    - Storage Humidity: 5–90% non-condensing
