10-inch Scheduling Panel (Teams-Certified)
- Category:ALL PRODUCTS,Best selling products,Microsoft Teams,Microsoft Teams Conferencing,New products,Yealink,Yealink Voice Conference,Yealink VoIP Conference Phones,Yealink VoIP Wireless DECT Headsets
10-inch Scheduling Panel (Teams-Certified) Datasheet (PDF)
10-inch Scheduling Panel (Teams-Certified)

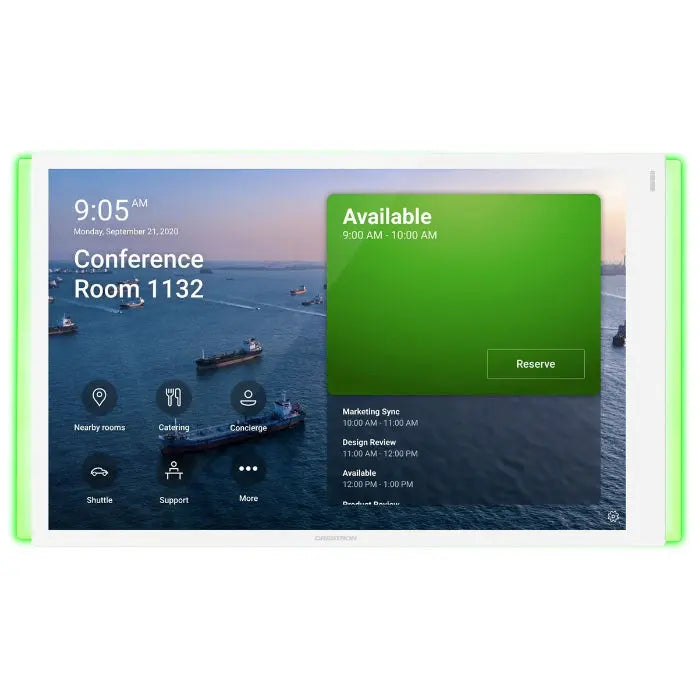

The 10-inch Scheduling Panel is a sleek wall-mounted touch screen solution tailored for seamless Microsoft Teams Panels scheduling. With a 10.1-inch touch screen, it integrates with Microsoft Teams for efficient room scheduling, supported by enterprise-grade security and cloud-based management. Its easy installation, Power over Ethernet (PoE) support, and Bluetooth proximity detection ensure hassle-free setup and usability. Additionally, it can be managed remotely through the XiO Cloud service, making it an ideal choice for modern meeting room management.
10-inch Scheduling Panel Key Features:
- Tailored touch screen for Microsoft Teams® Panels scheduling app.
- Provides a cost-effective superior alternative to consumer tablets.
- 10.1 in. (257 mm) widescreen capacitive touch screen display
- Wi‑Fi® network connectivity
Overall, the Crestron TSS-1070-T-LB KIT offers an advanced and secure room scheduling solution, combining ease of use and remote management, making it a valuable addition to any professional environment.
Basic
- Operating System: Android 11
Power Supply:
- Power over Ethernet (IEEE 802.3af/at)
- DC 12V /1.25A
Display
- Size(in): 10.1″ LCD Panel
- Resolution: 1280x800
- Touch Screen: 10 points capacitive multitouch
- Contrast: 1000:1
- Viewing Angle: ±90°
- Anti-Fingerprints: Anti-fingerprint Coating
Sensors
- Ambient Light Sensor
- TOF Proximity Sensor
Camera
- Pixel: 2 million pixels
Connectivity
- 1 x Fast ethernet port(10/100Mbps)
- Wi-Fi: 802.11a/b/g/n/ac
- Bluetooth: 5.2
- RFID/NFC: 13.56MHz
- USB: 1 x USB-A port
- Button: 1 x Reset pin hole
Audio
- Microphone: 2 x Microphone
- Speaker: 2 x Speaker
Mounting
- Angle: No inclination or 20 degree inclination
- Method: Wall, glass or side mount
- 0° Mount Bracket
- 20° Mount Bracket
- Mullion Mount Bracket
Environmental
- Operating Temperature: 0-40℃
- Operating Humidity: 10-95%, non-condensing
Dimensions
- Weight(g/lb): 627 /1.38
- Size(mm/in): 247.6×166.4×26.5/9.75″ ×6.55″ ×1.04″
10-inch Scheduling Panel (Teams-Certified) Datasheet (PDF)
10-inch Scheduling Panel (Teams-Certified)
The 10-inch Scheduling Panel is a sleek wall-mounted touch screen solution tailored for seamless Microsoft Teams Panels scheduling. With a 10.1-inch touch screen, it integrates with Microsoft Teams for efficient room scheduling, supported by enterprise-grade security and cloud-based management. Its easy installation, Power over Ethernet (PoE) support, and Bluetooth proximity detection ensure hassle-free setup and usability. Additionally, it can be managed remotely through the XiO Cloud service, making it an ideal choice for modern meeting room management.
10-inch Scheduling Panel Key Features:
- Tailored touch screen for Microsoft Teams® Panels scheduling app.
- Provides a cost-effective superior alternative to consumer tablets.
- 10.1 in. (257 mm) widescreen capacitive touch screen display
- Wi‑Fi® network connectivity
Overall, the Crestron TSS-1070-T-LB KIT offers an advanced and secure room scheduling solution, combining ease of use and remote management, making it a valuable addition to any professional environment.
10-inch Scheduling Panel Technical SpecificationsBasic
- Operating System: Android 11
Power Supply:
- Power over Ethernet (IEEE 802.3af/at)
- DC 12V /1.25A
Display
- Size(in): 10.1″ LCD Panel
- Resolution: 1280x800
- Touch Screen: 10 points capacitive multitouch
- Contrast: 1000:1
- Viewing Angle: ±90°
- Anti-Fingerprints: Anti-fingerprint Coating
Sensors
- Ambient Light Sensor
- TOF Proximity Sensor
Camera
- Pixel: 2 million pixels
Connectivity
- 1 x Fast ethernet port(10/100Mbps)
- Wi-Fi: 802.11a/b/g/n/ac
- Bluetooth: 5.2
- RFID/NFC: 13.56MHz
- USB: 1 x USB-A port
- Button: 1 x Reset pin hole
Audio
- Microphone: 2 x Microphone
- Speaker: 2 x Speaker
Mounting
- Angle: No inclination or 20 degree inclination
- Method: Wall, glass or side mount
- 0° Mount Bracket
- 20° Mount Bracket
- Mullion Mount Bracket
Environmental
- Operating Temperature: 0-40℃
- Operating Humidity: 10-95%, non-condensing
Dimensions
- Weight(g/lb): 627 /1.38
- Size(mm/in): 247.6×166.4×26.5/9.75″ ×6.55″ ×1.04″
