10-inch Scheduling Panel (Teams-Certified)

Available:In Stock
£501.24

 10-inch Scheduling Panel (Teams-Certified) Datasheet (PDF)

10-inch Scheduling Panel (Teams-Certified)

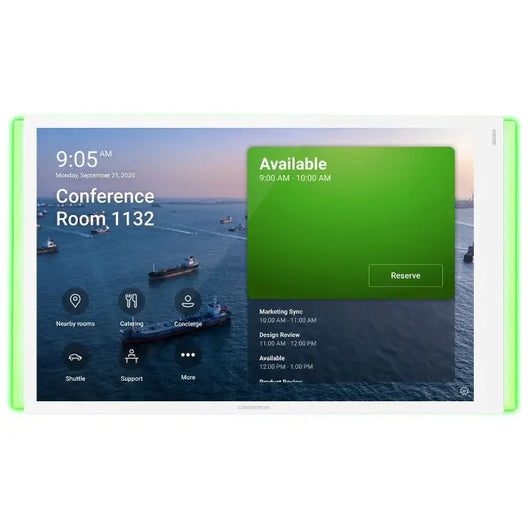

The 10-inch Scheduling Panel is a sleek wall-mounted touch screen solution tailored for seamless Microsoft Teams Panels scheduling. With a 10.1-inch touch screen, it integrates with Microsoft Teams for efficient room scheduling, supported by enterprise-grade security and cloud-based management. Its easy installation, Power over Ethernet (PoE) support, and Bluetooth proximity detection ensure hassle-free setup and usability. Additionally, it can be managed remotely through the XiO Cloud service, making it an ideal choice for modern meeting room management.

10-inch Scheduling Panel Key Features:

  • Tailored touch screen for Microsoft Teams® Panels scheduling app.
  • Provides a cost-effective superior alternative to consumer tablets.
  • 10.1 in. (257 mm) widescreen capacitive touch screen display
  • Wi‑Fi® network connectivity

Overall, the Crestron TSS-1070-T-LB KIT offers an advanced and secure room scheduling solution, combining ease of use and remote management, making it a valuable addition to any professional environment.

10-inch Scheduling Panel Technical Specifications

Basic

  • Operating System: Android 11

Power Supply:

  • Power over Ethernet (IEEE 802.3af/at)
  • DC 12V /1.25A

Display

  • Size(in): 10.1″ LCD Panel
  • Resolution: 1280x800
  • Touch Screen: 10 points capacitive multitouch
  • Contrast: 1000:1
  • Viewing Angle: ±90°
  • Anti-Fingerprints: Anti-fingerprint Coating

Sensors

  • Ambient Light Sensor
  • TOF Proximity Sensor

Camera

  • Pixel: 2 million pixels

Connectivity

  • 1 x Fast ethernet port(10/100Mbps)
  • Wi-Fi: 802.11a/b/g/n/ac
  • Bluetooth: 5.2
  • RFID/NFC: 13.56MHz
  • USB: 1 x USB-A port
  • Button: 1 x Reset pin hole

Audio

  • Microphone: 2 x Microphone
  • Speaker: 2 x Speaker

Mounting

  • Angle: No inclination or 20 degree inclination
  • Method: Wall, glass or side mount
  • 0° Mount Bracket
  • 20° Mount Bracket
  • Mullion Mount Bracket

Environmental

  • Operating Temperature: 0-40℃
  • Operating Humidity: 10-95%, non-condensing

Dimensions

  • Weight(g/lb): 627 /1.38
  • Size(mm/in): 247.6×166.4×26.5/9.75″ ×6.55″ ×1.04″
