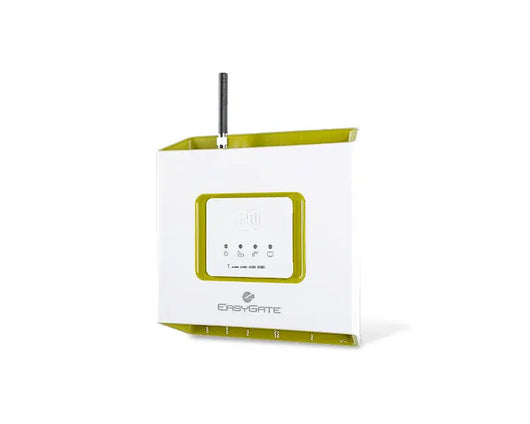

2N EasyGate PRO
The 2N EasyGate PRO is a single-channel analogue GSM / UMTS gateway. It is a solution based on mobile network used for a fixed line replacement. Compared with 2N EasyGate, it can also be equipped with battery backup. This makes it especially suitable for environments requiring resistance against power outages.
2N EasyGate PRO UMTS Advantages and Features
- Significant reduction in call costs
- Landline replacement
- High-speed data connection over UMTS
- Remote supervision and configuration
- Calling and SMS services
Cost savings with the 2N EasyGate PRO UMTS
In this scenario companies connect the UMTS gateway 2N EasyGate PRO UMTS to their existing PBXs with an analogue interface. All calls to mobile networks are routed via the 2N gateways and customers can save up to 70 percent on their calling costs.
2N EasyGate PRO - Technical Specifications
GSM/UMTS
- GSM networks 850/900/1800/1900 MHz
- UMTS networks 900/2100 MHz (EU version)
- SIM card 3V and 1.8V
Telephone exchange
- FXS Line For telephone or external line of the exchange
- Supported dialling DTMF and pulse
Power supply
- Power supply supplied with the gateway (12V/0.5A)
- Option of backup power supply using four AA batteries
USB interface
- Configuration and upgrade with the help of the 2N PC Manager UNI tool
Other
- Dimensions: 163×157×38mm
- Operating temperature: 0°C – 45°C
- Operational status signalling: 4×LED (on, GSM network, line, data)
- LED indicator – signal strength/battery status
Download
Download File
2N EasyGate PRO (5013381E)
£299.16
