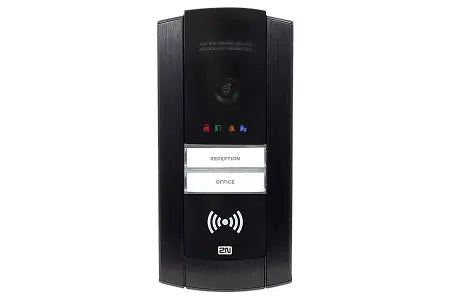

2N IP Base

The 2N IP Base has an integrated HD camera and advanced sound processing with echo-suppression renders sharp images and excellent audibility in all conditions. The base model can also be extended with a 125 kHz or 13.56 MHz RFID card reader module. The installation of the 2N® Helios IP Base is itself extremely simple thanks to its well-designed surface mounting. You will save time and building work costs. The package includes one or two-button options. The intercom also has inputs and outputs ready for connecting to a door lock or to other equipment.

2N Helios IP Base Key Features

Compact IP intercom
Very easy to install
Durable aluminium frame
Expandable with a 125 kHz or 13.56 MHz RFID card reader
Tamper switch
Inputs and outputs for connecting up an electric lock and other equipment
Wide-angle HD camera
Retail & SOHO
Small and Medium Enterprise
Offices
Homes
Home Automation

2N Helios IP Base - Technical Specifications

Signalling protocol

SIP 2.0 (RFC - 3261)

Buttons

Button type: transparent plastic
Number of buttons: 1 or 2 (the pack holds plastic buttons for both 1 or 2 button options)
Numeric keypad: no

Audio

Microphone: built-in microphone
Speaker: 2W
Sound pressure at 1 kHz at 1 m distance: 78 dB

Audio stream

Codecs: G 711, G 722

Camera

HD camera resolution: 1280×960
Viewing angle: 135°horizontal 109° vertical
Night vision: no

Video stream

Codec H.263+, H.263, H.264 only for VoIP calls
MJPEG for http streaming

Interfaces

PoE: PoE 802.3af LAN connector
Connector for expansion module (RFID reader)
Internal tamper switch
IN1 input terminal passive/active mode (-30 V to +30 V DC)
OFF = open contact or UIN > 1.5 V
ON = closed contact or UIN < 1.5 V
Relay output 30 V/1 A AC/DC, output NO/NC
Active switch output: 8 to 12 V DC depending on Power supply (PoE: 10 V; adapter: source voltage minus 2 V), max 400 mA
Input for external power supply: 12 V/2 A DC
