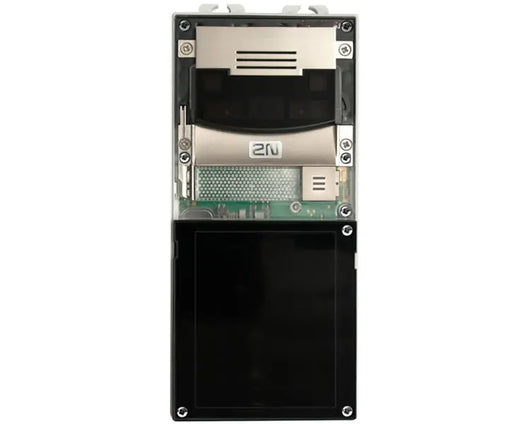

2N IP Verso Basic Unit 1 Button with Camera (9155101C)

£1,149.49

The 2N IP Verso with Camera is a modular security intercom that can be used everywhere a specific function and purpose of use is needed. This 2N Verso 9155101C features a camera and can be easily integrated into an existing camera and monitoring system, and thanks to programmable scripts, the whole system can be used as a security component to protect a building

apple paygoogle payjcbmasterpaypalvisa
SKU: 9155101C
Availability: In Stock Pre order Out of stock
Description

The 2N IP Verso with Camera is a modular security intercom that can be used everywhere a specific function and purpose of use is needed. This 2N Verso 9155101C features a camera and can be easily integrated into an existing camera and monitoring system, and thanks to programmable scripts, the whole system can be used as a security component to protect a building.

2N Verso 9115101C Key Features

    • IP (Internet Protocol) connected Door Entry System
    • 2N Verso Modular Intercom Device allows flexibility of specification
    • HD camera with infrared light and night vision
    • SIP communication protocol
    • Programmable scripts for actions and reactions
    • Integrates within a LAN, WAN, Web Ethernet network system
    • Integration with third-party CCTV systems with ONVIF support
    • Power over Ethernet (PoE) (or 12v power supply)
    • ext Generation html5 web server configuration
    • iPad, iPhone, Smart Phone, Tablet audio & video support
    • Web Interface Administration / Control of all 2N Helios IP devices from one location
    • Stylish, discreet design; robust materials and construction / IP54 protection rating

      Once you have selected your 2N base unit, you can then start to build your customized 2N solution. There are a range of Surface Frames, Back Boxes, and Extending Modules   available for Verso.

      2N Helios Verso Overview

      This Verso 9155101C Unit must be ordered with either a Two Frame Position or Three Frame Position mounting frame; the second (and third) mounting position is available for installation of additional function modules).

      The modularity of the 2N Helios Verso enables for a great number of combinations that can be tailored exactly to the requirements of the deployment.

      2N Helios IP Verso With Camera - Technical Specifications

      Signalling Protocol

      • SIP 2.0 (RFC - 3261)

      Buttons

      • Quick dial buttons
        Transparent, white backlit buttons with easily replaceable name tags
      • Number of buttons
        1 to 146
      • Numeric keypad
        optional

      Audio

      • Microphone
        1 integrated microphones
      • Loudspeaker
        2W

      Audio Stream

      • Codecs
        G.711, G.729

        RFID card reader

        • Supported cards
          Mifare Classic 1k & 4k, DESFire EV1, Mini, Plus S&X, SmartMX, Ultralight, Ultralight C, SLE44R35, my-d move (SLE66Rxx), PayPass, Legic Advant Calypso, CEPAS, Moneo, PicoPass, HID iCLASS

        Interface

        • Power supply
          12V±15%/2A DC or PoE
          PoE
          PoE 802.3af (Class 0 - 12.95W)
          LAN
          10/100BASE-TX with Auto-MDIX, RJ-45
          Relay outputs
          NC/NO contacts, max 30V/1A AC/DC
          Active relay output
          10V/400mA DC

        Mechanical

        • Operating temperature range
          -40°C – 60°C
        • Storage temperature range
          -40°C – 70°C
        • Relative humidity
          10% - 95% (not condensing)
        • Protection level
          IP 54

        Dimensions

        • Wall-mounted 1 modul
          107x130x28 mm
        • Wall-mounted 2 modul
          107x234x28 mm
        • Wall-mounted 3 modul
          107x361x28 mm
        • In-wall 1 modul
          130x153x5 mm
        • In-wall 1 modul
          130x257x5 mm
        • In-wall 1 modul
          130x361x5 mm
