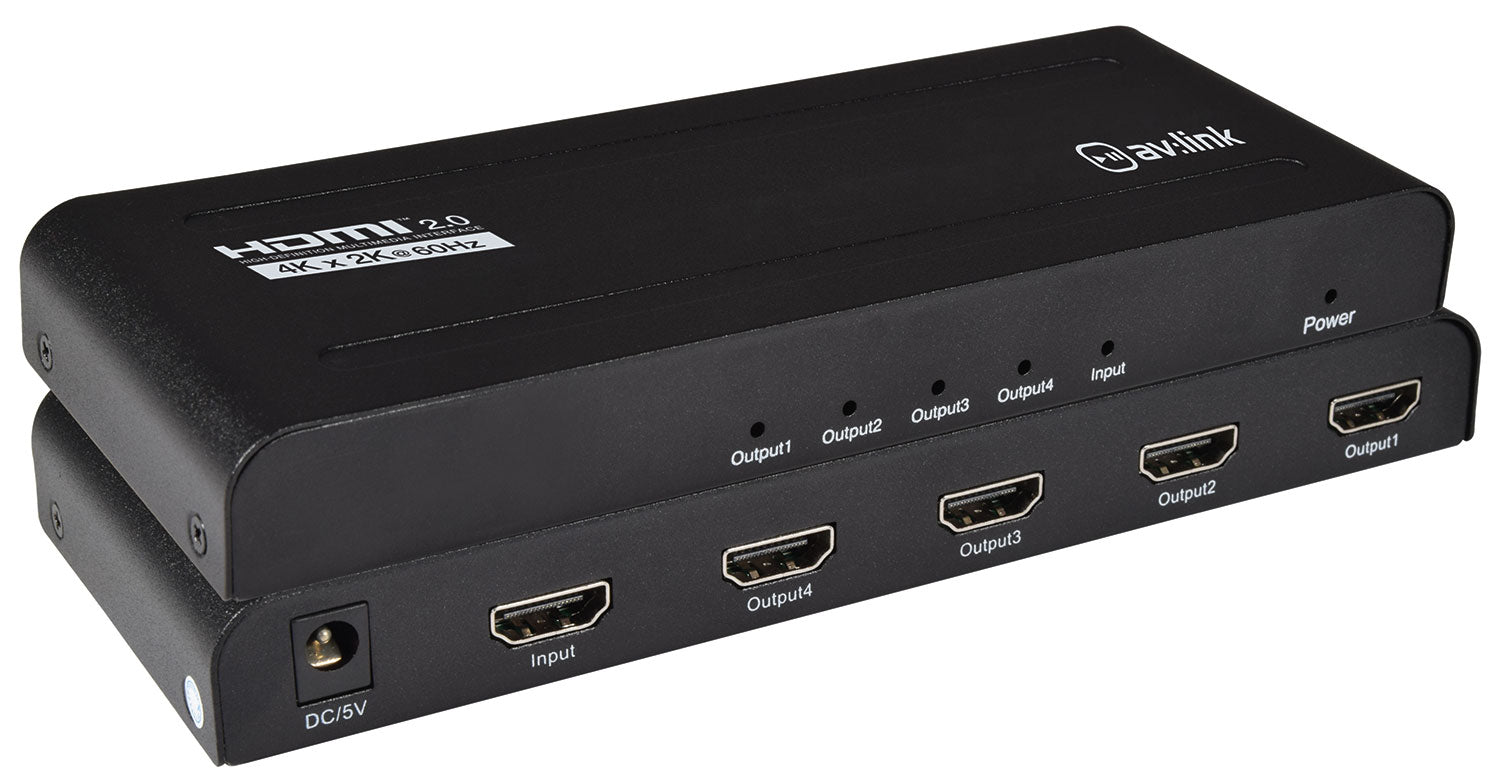

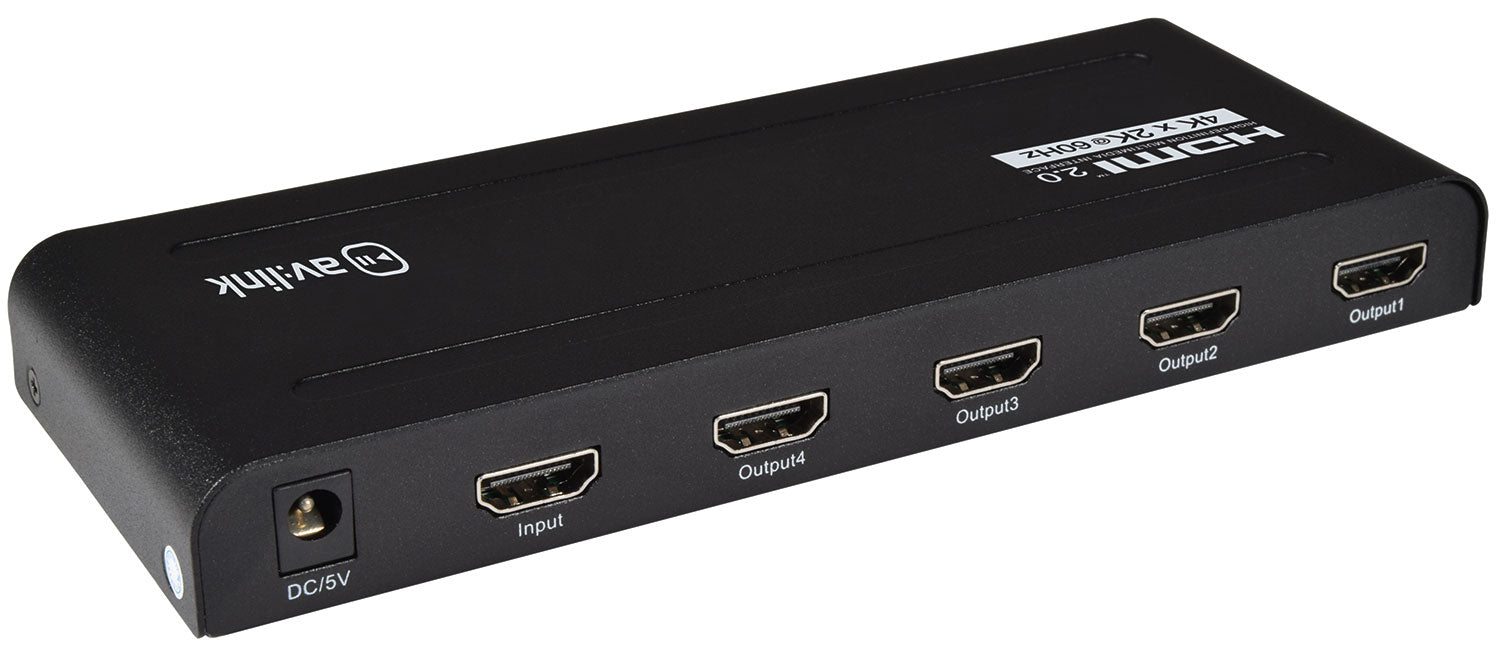

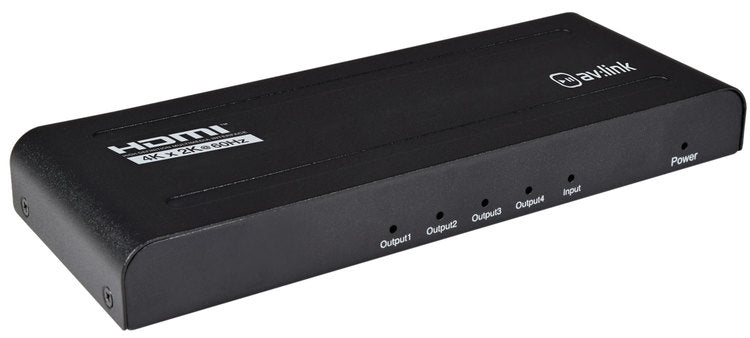

4K HDMI Splitter

4K HDMI Splitter

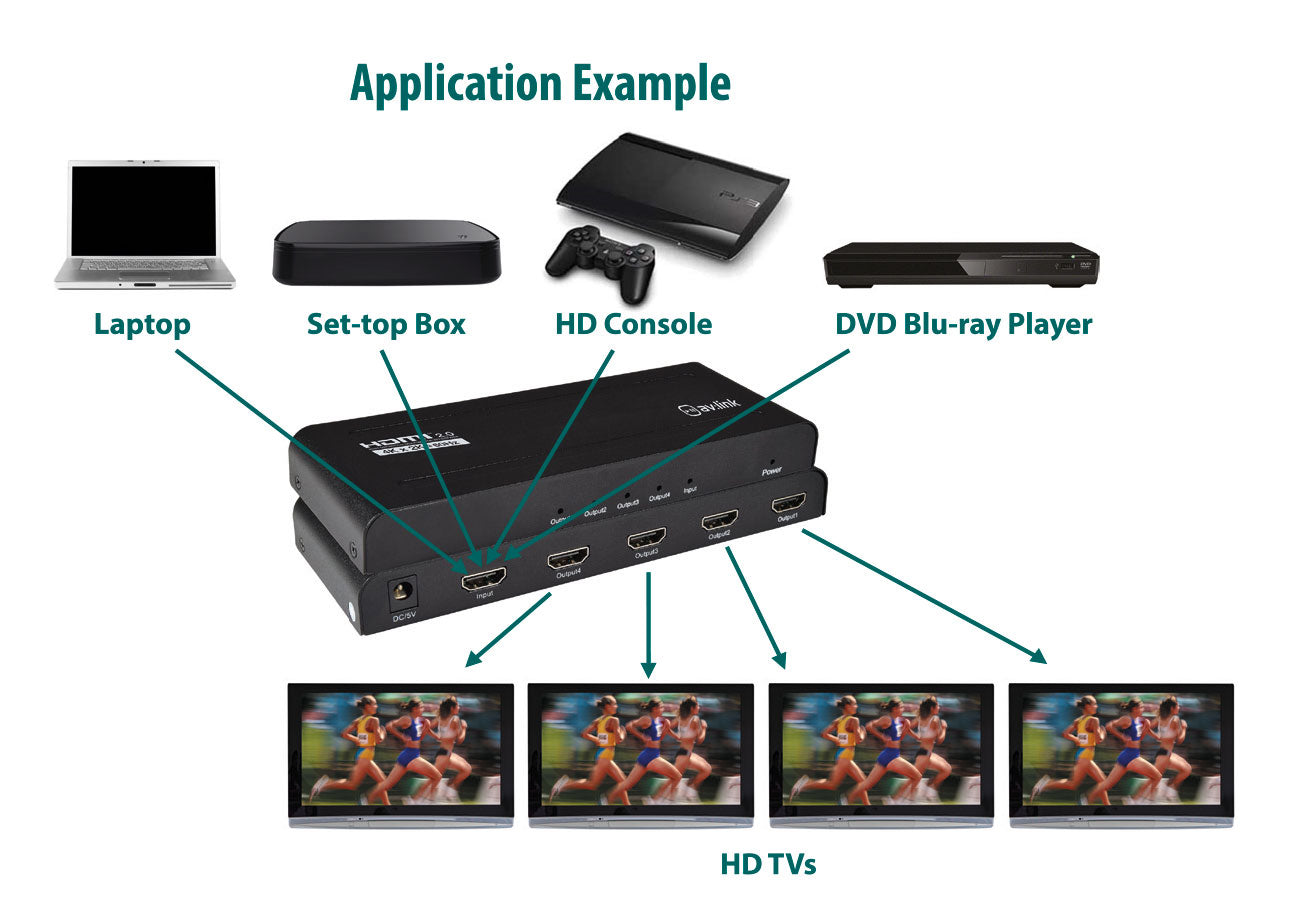

Slimline 4K HDMI splitters to easily connect a single HDMI source to multiple displays at the same time. This updated version will support HDMI resolutions up to 3840 x 2160 @ 60Hz, compatible with the latest digital TV boxes and games consoles.

• Supports HDMI resolutions up to 3840 x 2160 @ 60Hz for compatibility with the latest 4K digital TV boxes and games consoles.
• Simple connection and installation
• Sleek design with tough metal chassis
• Gold plated HDMI connectors for optimum signal transfer
• Supports DTS-HD, Dolby True, DTS, Dolby-AC3 and DSD audio formats
• Ideal for entertainment, hospitality and other commercial venues requiring multiple display feeds from a single HDMI source
• UK power adaptor supplied

• Weight230g
• Dimensions178 x 67 x 23mm
• Power supplyInput: AC (50Hz, 60Hz) 100-240V, Output: DC5V/1A
• Max. working current650mA
• Max. baud rate6Gbps
• Output connections4x HDMI
• Video resolutionUp to 3840 x 2160 @ 60Hz
• Display colours8/10/12bit deep colour
• Audio formatDTS-HD, Dolby True, DTS, Dolby-AC3 and DSD
• HDCP version2.2
• Max. bandwidth600MHz
• Transmission distance35m max 4K @ 30Hz and FHD or 10m max 4K @ 60Hz
• Operating temperature range-15°C to +55°C
