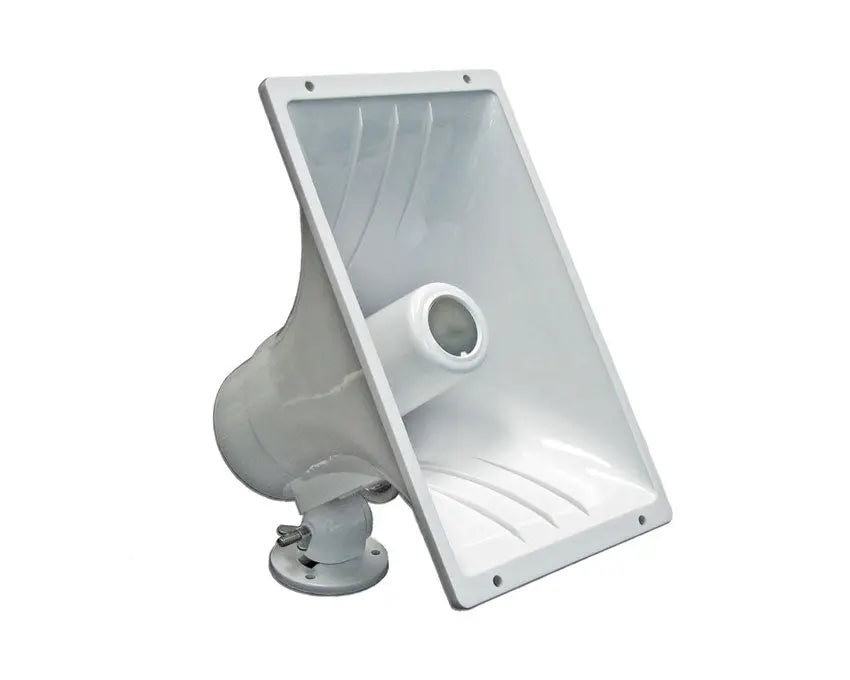

Algo 1186 Paging Horn - Outdoor Rated Horn Speaker for Telephone Loud Ringing, Voice Paging and Notification Alerting

The Algo 1186 is a weatherproof horn for loud ringing and paging. This horn is compatible with Algo's 8180 SIP Audio Alerter and the 1825 Duet Plus Loud Ringer. The Algo 1186 significantly increases the ringing volume of a call alert and is approximately 20 times louder than the average SIP phone.

Features

Rugged weatherproof white plastic enclosure with stainless steel hardware
Suitable for indoor or outdoor installation
Interfaces easily with the 1825 and the 8180 to provide increased ringing or voice notification volume (up to 112 dBA spl at 1m (3.3ft.)
No power supply required - draws power from the 1825 or 8180 devices
Wall-mountable and adjustable ABS plastic base8 ohm speaker rated at 50 watts

This is a great solution for loud, spacious and outdoor environments such as factories, warehouses and outdoor work yards. The Algo 1186 simply connects to the 8180 or 1825 and draws power from the host which means no additional power supply is required.

1186 SIP Horn Speaker Technical Specification

General

Rated Impedance: 8 Ohm +/- 15%
Rated Power: 50W
Maximum Power: 100W
Speaker Type: Re-entrant horn speaker, 11’’ x 6 5/8’’ (28cm x 16.8cm) rectangular.
Material: UV Stable white plastic with metal base
Freq Response: 350 – 9,000 Hz (- 10 dB)
Sensitivity: 107 dBA +/- 3 dB 1m/1W (1 kHz) at 1.3K, 1.6K, 2K, 2.5K Hz-Avg.
Dispersion Angle: 76H x 51V (2 kHz -6dB) Oriented Vertically 11” tall x 65/8” Wide
Environmental: -40 to +122 deg F (-40 to +50 deg C);
Suitable for outdoor and wet environments
Dimensions: 11.8'' x 6.6'' x 10.2'' (30cm x 16.8cm x 25.8cm)
Mounting: Wall or ceiling 3 screw pattern
Wiring: 18” (46cm) wire tail stripped and tinned
Aim Adjustment: Three axis
Weight: 4 lb (1.8 Kg)
