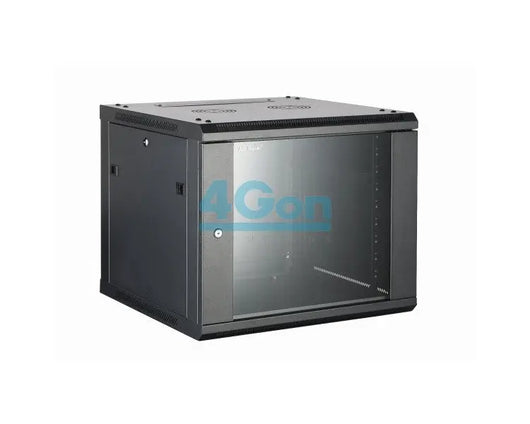

All Rack 18U 550MM Deep Wall Mount Cabinet Black (CAB18WB550BLK)
![Image](http://www.voipsupplies.co.uk/cdn/shop/t/15/assets/in_cart.png?v=160675125674534043661648220846)
All Rack 18U 550MM Deep Wall Mount Cabinet Black (CAB18WB550BLK)
The All Rack CAB18WB550BLK is ideal for small network installations where floor space doesn’t allow for a floor standing Server Cabinet. This product is perfect for a single personinstallation with easy fixing holes. All ALL-RACK wall cabinets have removable and lockable side panels for easy access and security. All cabinets are available in assembled form.
General
- Loading Capacity: 40KG
- Doors: 180 degree opening angle and can be mounted on left & right hand side with simple spring latch
- Security: Lockable doors and side panels
- Ventilation: Optional fan can be fitted if required
- Material: 1.2mm mild steel construction; Toughened glass panel in steel framework door
- Racks: Supplied with depth adjustable heavy-duty steel mounting profiles to take industry standard 19’’ patch panels, switches and other equipment.
- Doors: Lockable, removable glazed front door. Lockable and removable steel side panels
- Ventilation: Side panels vented. The roof has a cutout for 2 fan units top be mounted directly
- Cable Entry: Cable access points on the lid and base of cabinet.
- Colour: RAL9005
Dimensions
- Width: 600mm
- External Depth: 550mm
- Usable Depth: 450mm
- Height: 907mm
- Weight: 29KG
All Rack 18U 550MM Deep Wall Mount Cabinet Black (CAB18WB550BLK)
The All Rack CAB18WB550BLK is ideal for small network installations where floor space doesn’t allow for a floor standing Server Cabinet. This product is perfect for a single personinstallation with easy fixing holes. All ALL-RACK wall cabinets have removable and lockable side panels for easy access and security. All cabinets are available in assembled form.
All Rack CAB18WB550BLK Technical SpecificationsGeneral
- Loading Capacity: 40KG
- Doors: 180 degree opening angle and can be mounted on left & right hand side with simple spring latch
- Security: Lockable doors and side panels
- Ventilation: Optional fan can be fitted if required
- Material: 1.2mm mild steel construction; Toughened glass panel in steel framework door
- Racks: Supplied with depth adjustable heavy-duty steel mounting profiles to take industry standard 19’’ patch panels, switches and other equipment.
- Doors: Lockable, removable glazed front door. Lockable and removable steel side panels
- Ventilation: Side panels vented. The roof has a cutout for 2 fan units top be mounted directly
- Cable Entry: Cable access points on the lid and base of cabinet.
- Colour: RAL9005
Dimensions
- Width: 600mm
- External Depth: 550mm
- Usable Depth: 450mm
- Height: 907mm
- Weight: 29KG
