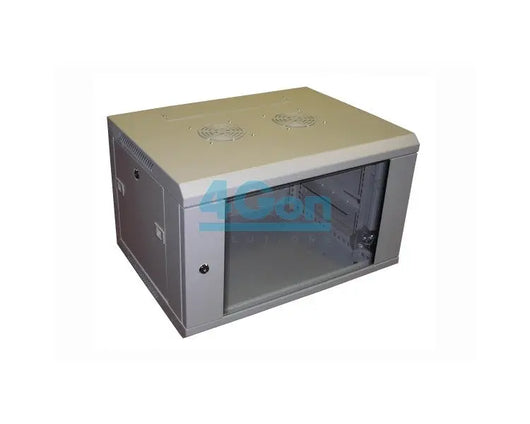

All Rack 6U 550MM Deep Wall Mount Cabinet Grey (CAB6WB550GY)
All Rack 6U 550MM Deep Wall Mount Cabinet Grey (CAB6WB550GY)
The All Rack CAB6WB550GY is ideal for small network installations where floor space doesn’t allow for a floor standing Server Cabinet. This product is perfect for a single personinstallation with easy fixing holes. All ALL-RACK wall cabinets have removable and lockable side panels for easy access and security. All cabinets are available in assembled form.
All Rack CAB6WB550GY Technical Specifications
General
- Partcode: CAB6WB550GY
- Colour: Grey RAL7035
- Loading capacity: 40kg
- Useable Depth: 410mm
- Doors: 180 Degrees opening angle & can be mounted on left or right hand side with simple spring latch.
- Security: Lockable Doors and side Panels
- Ventilation: Optional Fans can be fitted if required
- Cable entry: As standard the cabinets are supplied with blank panels however these can be changed into a brush strip panel as an optional extra
- Installation: The cabinets can be mounted to the wall by using the fixing holes on the back on the cabinet
- Uprights: Front and rear mounting rails are fully adjustable
Dimensions
- Width: 600mm
- External Depth: 550mm
- Usable Depth: 450mm
- Height: 349mm
- Weight: 17KG
Description
All Rack 6U 550MM Deep Wall Mount Cabinet Grey (CAB6WB550GY)
The All Rack CAB6WB550GY is ideal for small network installations where floor space doesn’t allow for a floor standing Server Cabinet. This product is perfect for a single personinstallation with easy fixing holes. All ALL-RACK wall cabinets have removable and lockable side panels for easy access and security. All cabinets are available in assembled form.
All Rack CAB6WB550GY Technical Specifications
General
- Partcode: CAB6WB550GY
- Colour: Grey RAL7035
- Loading capacity: 40kg
- Useable Depth: 410mm
- Doors: 180 Degrees opening angle & can be mounted on left or right hand side with simple spring latch.
- Security: Lockable Doors and side Panels
- Ventilation: Optional Fans can be fitted if required
- Cable entry: As standard the cabinets are supplied with blank panels however these can be changed into a brush strip panel as an optional extra
- Installation: The cabinets can be mounted to the wall by using the fixing holes on the back on the cabinet
- Uprights: Front and rear mounting rails are fully adjustable
Dimensions
- Width: 600mm
- External Depth: 550mm
- Usable Depth: 450mm
- Height: 349mm
- Weight: 17KG
