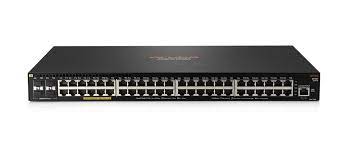

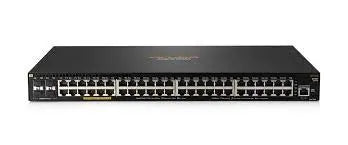

Aruba 2930F 48G PoE+ 4SFP Switch (JL557A)

£2,431.44

Aruba 2930F 48G PoE+ 4SFP Switch (JL557A)

The Aruba 2930F 48G PoE+ 4SFP Network Switch (JL557A) has 48x 10/100/1000 PoE+ ports and 4x 1000/100 SFP transceiver slots for uplink connectivity. PoE+ is supported with a power budget of 740 Watts.

Aruba 2930F 48G PoE+ 4SFP+ Switch (JL557A) Key Features

  • 48 RJ-45 autosensing 10/100/1000 PoE+ ports
  • Four 1000/100 SFP transceiver ports
  • Up to 112 Mpps throughput
  • 176 Gb/s switching capacity
  • 740 W PoE+

The Aruba 2930F Switch Series is designed for digital workplaces that are optimised for mobile users.

These Layer 3 access switches are easy to deploy and manage with advanced security and network management tools like Aruba ClearPass Policy Manager, Aruba AirWave and cloud-based Aruba Central. Virtual Switching Framework (VSF) provides stacking scale and simplicity for enterprise edge, SMB and branch offices. The 2930F switch delivers performance and value with support for RIP routing, Access OSPF, 10GbE uplinks, up to 740W PoE+, robust QoS, and no software licensing is required.



Aruba 2930F 48G PoE+ 4SFP (JL557A) Technical Specification

Type

  • Aruba 2930F 48G PoE+ 4SFP 740W Switch

Ports

  • 48 x RJ-45 autosensing 10/100/1000 PoE+ ports
  • 4 x SFP

Memory and processor

  • Dual Core ARM Coretex A9 @ 1016 MHz
  • 1 GB DDR3 SDRAM
  • Packet buffer size: 12.38 MB 4.5MB Ingress/7.875MB Egress
  • 4 GB eMMC

Management

  • Aruba AirWave
  • Central Network Management
  • IMC - Intelligent Management Center
  • Command-line interface
  • Web browser
  • Configuration menu
  • SNMP manager
  • Telnet
  • RMON1
  • FTP
  • Out-of-band management (serial RS-232C or micro USB)

1000 Mb Latency

  • < 3.8 μs (64-byte packets)

10 Gbps Latency

  • < 1.6 μs (64-byte packets)

Throughput

  • up to 112.0 Mp/s

Switching capacity

  • 176 Gb/s

Dimensions

  • 1.73 x 17.42 x 12.77 in

Weight

  • 10.56 lb

Input voltage

  • 100-127 / 200-240 VAC, rated

Power consumption

  • 980 W (maximum)

Heat dissipation

  • 420.9 BTU/hr (444.1 kJ/hr)
Add to WishlistCompare

apple paygoogle payjcbmasterpaypalvisa
Ask a Question
Vendor: Aruba
SKU: JL557A
Availability: In Stock Pre order Out of stock
Description

Aruba 2930F 48G PoE+ 4SFP Switch (JL557A)

The Aruba 2930F 48G PoE+ 4SFP Network Switch (JL557A) has 48x 10/100/1000 PoE+ ports and 4x 1000/100 SFP transceiver slots for uplink connectivity. PoE+ is supported with a power budget of 740 Watts.

Aruba 2930F 48G PoE+ 4SFP+ Switch (JL557A) Key Features

  • 48 RJ-45 autosensing 10/100/1000 PoE+ ports
  • Four 1000/100 SFP transceiver ports
  • Up to 112 Mpps throughput
  • 176 Gb/s switching capacity
  • 740 W PoE+

The Aruba 2930F Switch Series is designed for digital workplaces that are optimised for mobile users.

These Layer 3 access switches are easy to deploy and manage with advanced security and network management tools like Aruba ClearPass Policy Manager, Aruba AirWave and cloud-based Aruba Central. Virtual Switching Framework (VSF) provides stacking scale and simplicity for enterprise edge, SMB and branch offices. The 2930F switch delivers performance and value with support for RIP routing, Access OSPF, 10GbE uplinks, up to 740W PoE+, robust QoS, and no software licensing is required.



Aruba 2930F 48G PoE+ 4SFP (JL557A) Technical Specification

Type

  • Aruba 2930F 48G PoE+ 4SFP 740W Switch

Ports

  • 48 x RJ-45 autosensing 10/100/1000 PoE+ ports
  • 4 x SFP

Memory and processor

  • Dual Core ARM Coretex A9 @ 1016 MHz
  • 1 GB DDR3 SDRAM
  • Packet buffer size: 12.38 MB 4.5MB Ingress/7.875MB Egress
  • 4 GB eMMC

Management

  • Aruba AirWave
  • Central Network Management
  • IMC - Intelligent Management Center
  • Command-line interface
  • Web browser
  • Configuration menu
  • SNMP manager
  • Telnet
  • RMON1
  • FTP
  • Out-of-band management (serial RS-232C or micro USB)

1000 Mb Latency

  • < 3.8 μs (64-byte packets)

10 Gbps Latency

  • < 1.6 μs (64-byte packets)

Throughput

  • up to 112.0 Mp/s

Switching capacity

  • 176 Gb/s

Dimensions

  • 1.73 x 17.42 x 12.77 in

Weight

  • 10.56 lb

Input voltage

  • 100-127 / 200-240 VAC, rated

Power consumption

  • 980 W (maximum)

Heat dissipation

  • 420.9 BTU/hr (444.1 kJ/hr)
