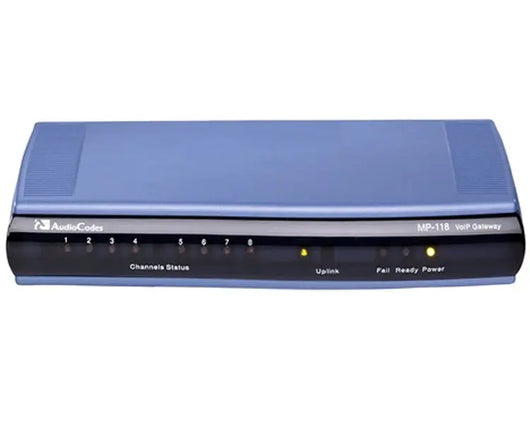

AudioCodes MediaPack 118 Analog VoIP Gateway 4 FXS 4 FXO (MP118/4S/4O/SIP)

The AudioCodes MP118/4S/4O/SIP is an analog VoIP Gateway which is a cost-effective, best-of-breed technology product. These stand-alone analog VoIP Gateways provide superior voice technology for connecting legacy telephones, fax machines and PBX systems with IP-based telephony networks, as well as for integration with IP PBX systems.

AudioCodes MP118/4S/4O/SIP Key Features

  • 8 analog ports
  • T.38 fax compliant
  • 3-way conference with local mixing
  • Call pickup
  • Hunt groups
  • Call forwarding
  • Call hold
  • Call transfer
  • Advanced telephony features such as long-haul, metering tones generation, country dependent MWI and Caller ID for true integration with the existing telephony infrastructure
AudioCodes MP118/4S/4O/SIP Technical Specifications

Interfaces

  • Analog Signaling: 8 ports, FXS, FXO loop-start
  • Network Interface: 10/100 BASE-T, RJ-45

Media Capabilities

  • Voice Coders: G.711 (A-law and µ-law), G.723.1, G.726, G.727, G.729A/B, G.722
  • VoIP Features: G.168-2004 echo cancellation, silence detection and comfort noise generation, dynamic programmable jitter buffer
  • Call Progress Tones: Programmable detection and generation tones, pre-recorded tones generation
  • DTMF: In-band and out-of-band signaling, RFC 2833, SIP INFO/NOTIFY
  • Fax Over IP: Group 3/super G3 fax over IP, T.38 relay, automatic switching to G.711

IP Networking and Telephony Protocols

  • VLAN: 802.1 p/Q VLAN tagging
  • IP Transport: IPV4/IPV6*, DiffServ, TOS
  • Control Protocols: SIP (RFC 3261) over UDP, TCP and TLS (1.2)
  • Media Protocols: RTP (RFC 3550), SRTP (RFC 3711), RTCP (RFC 3550), RTCP-XR (RFC 3611)

Management Protocols

  • OAM&P:
    - Web GUI, SSH/Telnet, SNMP v2/v3, INI file
    - AudioCodes’ One Voice Operation Center
    - User authentication and access control via RADIUS
  • Automatic Configuration:
    - Zero-touch provisioning
    - Configuration/firmware download via HTTP(s), FTP and TFTP
    - DHCP-based provisioning - options 66, 67 and 160
    - VLAN ID discovery using LLDP
  • Voice Menu: Basic configuration using standard touch-tone phone (MP-11x only)

Survivability During Network Failure

  • PSTN Fallback: PSTN fallback upon power failure, IP connection failure, customer-defined IP QoS thresholds (MP-114 and MP-118)
  • Survivability: Stand Alone Survivability (SAS) for 25 SIP users

Analog Telephony Features

  • 3-Way Conference: On-board 3-way conference
  • MWI: Message Waiting Indication: High (neon) and low (LED) voltage, FSK, stutter dial tone
  • Caller ID: Bellcore GR-30-CORE Type 1 using Bell 202 FSK modulation, ETSI Type 1, NTT, Denmark, India, Brazil, United Kingdom and DTMF ETSI CID (ETS 300-659-1)
  • Polarity Reversal/Wink: Immediate or smooth to prevent erroneous ringing
  • Metering Tones: 12/16 KHz sinusoidal bursts, generation on FXS
  • Distinctive Ringing: By frequency (15-100 Hz) and cadence patterns

Subscriber Line Interface

  • Ring Voltage: Sine: 54 VRMS typical (balanced ringing only)
  • Ring Frequency: 25-100Hz
  • Maximum Ringer Load: REN3
  • Loop Impedance: Up to 1,500 ohm for the MP-11x, up to 1,600 ohm for the MP-124 (including phone impedance)
  • Line Current: Up to 32 MA on 4 ports

    Physical

    • Power: 100-240 V AC/50-60 Hz
    • Environmental:
      - Operational: 5 to 40°C (41 to 104°F)
      - Storage: -25 to 85°C (-13 to 185°F)
      - Humidity: 10 to 90% non-condensing
    • Dimensions: 42x172x220 mm
    • Mounting: Table top, wall mount, rack mount (with an optional shelf)
    • Weight: MP-1xx: 0.5 kg (1.1 lbs.) approx.
