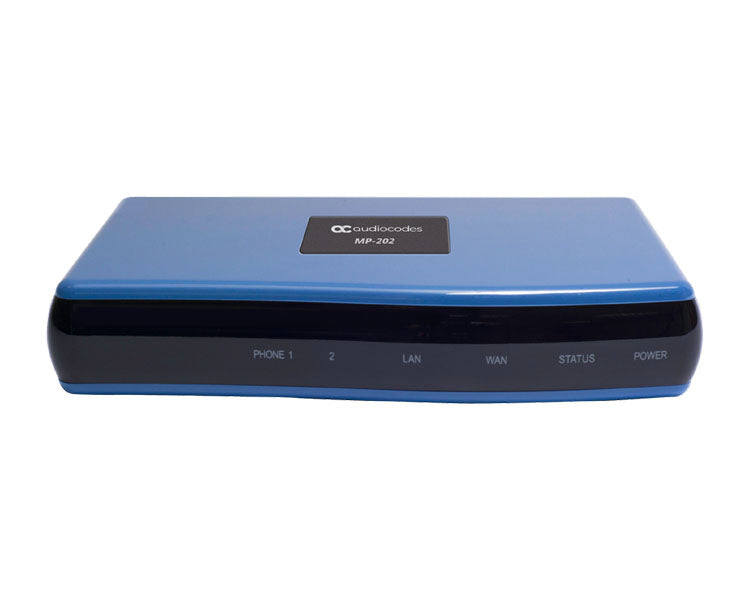

AudioCodes MediaPack 202 Analog Telephony Adapter with 2 FXS ports (MP202B/2S/SIP)
![AudioCodes MediaPack 202 Analog Telephony Adapter with 2 FXS ports (MP202B/2S/SIP)]()
![AudioCodes MediaPack 202 Analog Telephony Adapter with 2 FXS ports (MP202B/2S/SIP)]()
AudioCodes MediaPack 202 Analog Telephony Adapter with 2 FXS ports (MP202B/2S/SIP)
Available:In Stock
£117.48
AudioCodes MediaPack 202 Analog Telephony Adapter with 2 FXS ports (MP202B/2S/SIP)
The AudioCodes MP202B/2S/SIP is an analog telephone adapter that enables cost-effective and rapid migration of legacy analog telephones, fax machines and conference speakerphones to VoIP services. Their enhanced feature set includes support for multiple lines and optional 3G/4G cellular broadband access.
AudioCodes MP202B/2S/SIP Key Features
- Wide versatility
- Enhanced security
- Fax support
- Superior quality
- Easy monitoring
- SOHO telephony 2 port VoIP gateway for Voice over Broadband (VoBB) networks
- 3G/4G access support for broadband access (through USB dongle)
- TR-069 protocol and user-friendly local web wizard for easy remote provisioning
- Certified for BroadSoft’s BroadWorks and BroadCloud
- Supports a rich set of subscriber calling features
- Optional integrated router including firewall and NAT with smart Quality of Service (QoS)
- Media encryption using Secure Real-Time Transfer Protocol (SRTP)
- Optional integration of robust, reliable fax over HTTP application including Fax2Email and Email2Fax
- Optional integrated BroadSoft’s PacketSmart probe
AudioCodes MP202B/2S/SIP Technical Specification
Available Hardware Configurations
- Access: 1 x 10/100
- LAN: 1 x 10/100
- FXS: 2
WAN Access
- Ethernet WAN: 10/100/1000Mbps Ethernet ports, for connection to xDSL/Cable/xPON modems
- Ethernet: 3G/4G WAN access through USB dongle (not supplied with the MP-20x, specific dongles supported)
Optional Data Routing and Security
- Data Protocols:- IPv4, IPV6**, PPPoE, PPPoA, PPTP, DNS proxy, dynamic DNS, DHCP client, server and proxy, IP
- NAT – RFC3022, Application Layer Gateway (ALG), port triggering, UPnP auto-configuration and port-forwarding (IGD) - QoS:
- IEEE 802.1p/Q (QoS & VLAN tagging)
- ToS/Diffserv
- QoS traffic prioritisation and shaping - Data Security and Firewall: SPI firewall, URL filtering, advanced access control, denial-of-service prevention, configuration file encryption, web authentication, HTTPS provisioning
- SIP Security: SIP over TLS 1.2 (SIPS)
Voice over IP
- Signalling Protocols:
- SIP over TCP/UDP/TLS – RFC 3261
- Interoperability with leading softswitches
- Up to 4 individual SIP accounts - Media Processing:
- Voice codecs G.711μ/a-law, G.729A/B, G.723.1
- Media encryption using Secure Real-Time Transfer Protocol (SRTP)
- Analog signaling caller ID (Bellcore, ETSI, DTMF), MWI
- DTMF detection and generation, in-band and out-of-band
- Customised tones generation
- T.38 fax relay, V.34, VBD (voice band data), bypass
Office Services
- Reliable Fax Transmission:
- Fax-to-email - Fax is received as email with PDF attachments
- Automatic fax detection supporting T.38 and T.30 fax protocols, reliable transmission over HTTPS
- Email-to-fax - Send faxes from the company email (office, home or mobile) with attachments (e.g. DOC, PDF, Excel, PowerPoint, images, TXT etc.)
- Administration, management, and diagnostics via simple web-based interface
Management and Configuration
- Auto Provisioning: Automated firmware and configuration upgrade via HTTP/HTTPS/TFTP/FTP
- Administration and Diagnostics:
- Internal web server for configuration and management
- TR-069, TR-104, TR-111
- Integrated SNMP agent
- CLI over Telnet
- Advanced debugging and diagnostics tools
- Optional integrated BroadSoft PacketSmart agent for voice Quality of Experience (QoE) management
Physical Specification
- Dimensions: 167 x 133 x 33 mm
- Weight: 280g
- Power: +12 VDC, 1 A /2 A (R models) external power adaptor, 100-240 VAC/50-60 Hz
- Operating Temperature: 0° to 40°C, Storage Temperature -40° to 66 C
AudioCodes MediaPack 202 Analog Telephony Adapter with 2 FXS ports (MP202B/2S/SIP)
The AudioCodes MP202B/2S/SIP is an analog telephone adapter that enables cost-effective and rapid migration of legacy analog telephones, fax machines and conference speakerphones to VoIP services. Their enhanced feature set includes support for multiple lines and optional 3G/4G cellular broadband access.
AudioCodes MP202B/2S/SIP Key Features
- Wide versatility
- Enhanced security
- Fax support
- Superior quality
- Easy monitoring
- SOHO telephony 2 port VoIP gateway for Voice over Broadband (VoBB) networks
- 3G/4G access support for broadband access (through USB dongle)
- TR-069 protocol and user-friendly local web wizard for easy remote provisioning
- Certified for BroadSoft’s BroadWorks and BroadCloud
- Supports a rich set of subscriber calling features
- Optional integrated router including firewall and NAT with smart Quality of Service (QoS)
- Media encryption using Secure Real-Time Transfer Protocol (SRTP)
- Optional integration of robust, reliable fax over HTTP application including Fax2Email and Email2Fax
- Optional integrated BroadSoft’s PacketSmart probe
Available Hardware Configurations
- Access: 1 x 10/100
- LAN: 1 x 10/100
- FXS: 2
WAN Access
- Ethernet WAN: 10/100/1000Mbps Ethernet ports, for connection to xDSL/Cable/xPON modems
- Ethernet: 3G/4G WAN access through USB dongle (not supplied with the MP-20x, specific dongles supported)
Optional Data Routing and Security
- Data Protocols:- IPv4, IPV6**, PPPoE, PPPoA, PPTP, DNS proxy, dynamic DNS, DHCP client, server and proxy, IP
- NAT – RFC3022, Application Layer Gateway (ALG), port triggering, UPnP auto-configuration and port-forwarding (IGD) - QoS:
- IEEE 802.1p/Q (QoS & VLAN tagging)
- ToS/Diffserv
- QoS traffic prioritisation and shaping - Data Security and Firewall: SPI firewall, URL filtering, advanced access control, denial-of-service prevention, configuration file encryption, web authentication, HTTPS provisioning
- SIP Security: SIP over TLS 1.2 (SIPS)
Voice over IP
- Signalling Protocols:
- SIP over TCP/UDP/TLS – RFC 3261
- Interoperability with leading softswitches
- Up to 4 individual SIP accounts - Media Processing:
- Voice codecs G.711μ/a-law, G.729A/B, G.723.1
- Media encryption using Secure Real-Time Transfer Protocol (SRTP)
- Analog signaling caller ID (Bellcore, ETSI, DTMF), MWI
- DTMF detection and generation, in-band and out-of-band
- Customised tones generation
- T.38 fax relay, V.34, VBD (voice band data), bypass
Office Services
- Reliable Fax Transmission:
- Fax-to-email - Fax is received as email with PDF attachments
- Automatic fax detection supporting T.38 and T.30 fax protocols, reliable transmission over HTTPS
- Email-to-fax - Send faxes from the company email (office, home or mobile) with attachments (e.g. DOC, PDF, Excel, PowerPoint, images, TXT etc.)
- Administration, management, and diagnostics via simple web-based interface
Management and Configuration
- Auto Provisioning: Automated firmware and configuration upgrade via HTTP/HTTPS/TFTP/FTP
- Administration and Diagnostics:
- Internal web server for configuration and management
- TR-069, TR-104, TR-111
- Integrated SNMP agent
- CLI over Telnet
- Advanced debugging and diagnostics tools
- Optional integrated BroadSoft PacketSmart agent for voice Quality of Experience (QoE) management
Physical Specification
- Dimensions: 167 x 133 x 33 mm
- Weight: 280g
- Power: +12 VDC, 1 A /2 A (R models) external power adaptor, 100-240 VAC/50-60 Hz
- Operating Temperature: 0° to 40°C, Storage Temperature -40° to 66 C
