SU20 Compact Dual UHF Microphone Sets

SU20 Compact Dual UHF Microphone Sets

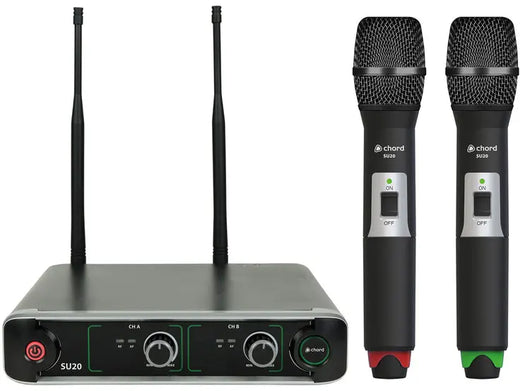

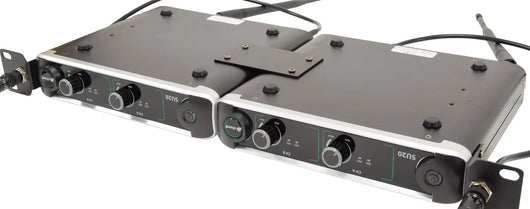

Dual UHF wireless microphone system with a compact receiver, supplied with hardware for mounting 1 or 2 units into a 1U 19" rack space. BNC cables and detachable antennas are provided for rear or front mounting as required. Each transmitter is powered by 2 x AA batteries and the beltpack version is supplied with both neckband and lavalier microphones. Output is provided individually on balanced XLR connectors or mixed to a single 6.3mm jack socket. Providing all the functionality of a dual UHF system in a compact half-rack format.

• Up to 2 sets (4 microphones) can be used together
• Available in handheld or beltpack versions with 2 carrier frequency options

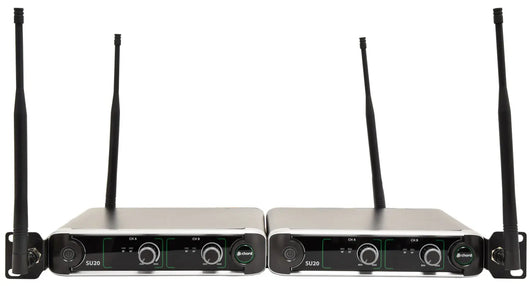

• Front or rear mountable antennas
• Compact half-rack receiver
• Supplied with power adaptor and 4 x AA batteries

• Carrier frequencies863.42MHz (Red) + 864.3MHz (Green)
• Weight : beltpack transmitterN/A
• Dimensions : beltpack transmitterN/A
• Weight : handheld transmitter231g (no battery)
• Dimensions : handheld transmitter250 x 47mmØ
• Power supply14Vdc 350mA (adaptor supplied)
• Antenna connectionBNC
• Batteries4 x AA (2 per transmitter) included
• Range60m
• Microphone : polar patternCardioid (handheld, neckband or lavalier)

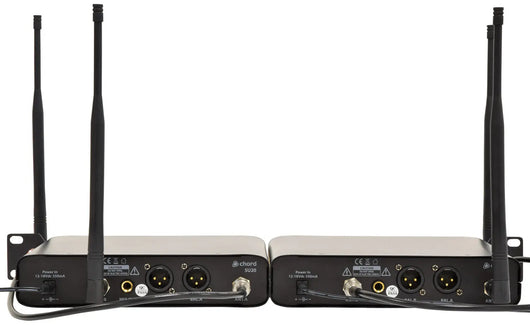

• Output connections2 x balanced XLR, 1 x unbalanced 6.3mm jack
• Output impedance2.2k Ohms
• Output level400mV (balanced), 200mV (unbalanced)
• Frequency response50Hz - 18kHz (±3dB)
• S/N ratio>80dB
• THD<0.5% @ 1kHz
• Dimensions : receiver203 x 187 x 42mm
• Weight : receiver845g
