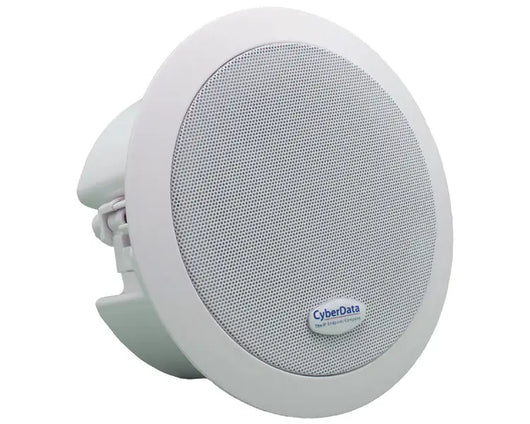

CyberData InformaCast Enabled Ceiling Speaker (011504)

The CyberData InformaCast Enabled Ceiling Speaker (011504) is an economical Power-over-Ethernet (PoE 802.3af) and Voice-over-IP (VoIP) public address product that plays InformaCast and multicast messages. It easily connects to your PoE network with a single Ethernet cable connection. The device's small footprint allows the speaker to be discreetly mounted in your ceilings.

CyberData InformaCast Enabled Ceiling Speaker (011504) Key Features

Capable of receiving Singlewire InformaCast and multicast messages
Supports Singlewire InformaCast High Quality Audio
TLS security for autoprovisioning and web-based configuration
Supports audio prioritisation for 10 multicast paging groups
Network-adjustable speaker volume
User upgradeable firmware via web interface or autoprovisioning
802.11q VLAN tagging
Configurable event generation for device health and status monitoring
High efficiency speaker driver
Small footprint

CyberData InformaCast Enabled Ceiling Speaker (011504) Technical Specification

Product Specifications

Ethernet I/F: 10/100 Mbps
Protocol: RTP
Notification Software: Singlewire InformaCast v4.0 and above
Power Input: PoE 802.3af
Audio Output: 802.3af – SPL 99 dB @ 1 meter
Payload Types: G.711 a-law, G.711µ-law, and G.729
Network Security: TLS/SSL 1.2
Operating Range:
- Temperature: -40˚ C to 55˚ C (-40˚ F to 131˚ F)
- Humidity: 5-95%, non-condensing
Storage Temperature: -40˚ C to 70˚ C (-40˚ F to 158˚ F)
Storage Altitude: Up to 15,000 ft. (4573 m)
Dimensions:
- 201.5 mm [7.93 in.] Grill Diameter
- 170 mm [6.70 in.] Can Diameter
- 89.4 mm [3.52 in.] Can Depth
Weight: 1.09 kg [2.4 lbs]
Boxed Weight: 1.32 kg [2.9 lbs]
Compliance: CE; EMC Directive – Class A EN 55032 & EN 55024, LV Safety Directive – EN 60950-1, RoHS Compliant, FCC; Part 15 Class A, Industry Canada; ICES-3 Class A, IEEE 802.3 Compliant
Warranty: 2 Years Limited
Part Number: 011504
