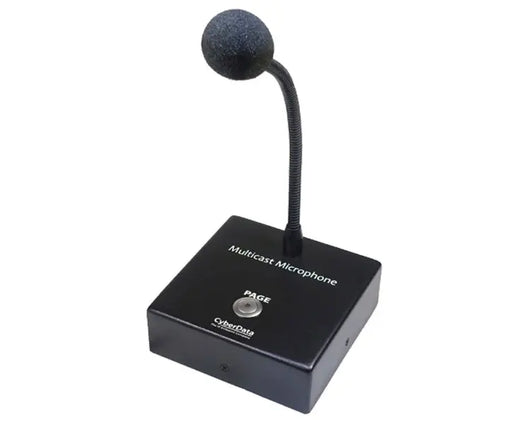

CyberData Multicast VoIP Microphone (011446)

The CyberData Multicast VoIP Microphone (011446) is a device that allows the user, while pressing the “Page” button, to broadcast live or buffered announcements directly to VoIP audio endpoints that support Multicast. This PoE-powered product is perfect for immediate live paging in schools, retail stores and manufacturing environments. In an echo sensitive environment, the delayed page support allows the user to record a message while the page button is depressed. Once the page button is released, the page will be sent. CyberData has maintained one of the most comprehensive list of IP PBX servers certified to work with CyberData VoIP Products.

CyberData Multicast VoIP Microphone (011446) Key Features

Multicast Transmit
Compatible with CyberData endpoints that receive multicast
Page to Multicast-enabled phones
Delayed page support (up to 60 seconds)
Web-based configuration and firmware upload
Autoprovision support
12-inch flexible shaft microphone
Desktop Design
Wall mountable

CyberData Multicast VoIP Microphone (011446) Technical Specification

Product Specifications

Ethernet I/F: 10/100 Mbps
Protocol: Multicast
Power Input: PoE 802.3af compliant or +8 to +12VDC @ 1000mA Regulated Power Supply (not included)
Payload Types: G711, A-law and µ-law
Operating Range:
- Temperature: -40˚ C to 55˚ C (-40˚ F to 131˚ F)
- Humidity: 5-95%, non-condensing
Storage Temperature: -40˚ C to 70˚ C (-40˚ F to 158˚ F)
Storage Altitude: Up to 15,000 ft. (4573 m)
Microphone Length: 304.8 mm [12 inches]
Dimensions (without Microphone Boom):
- 115 mm [4.53 inches] Length
- 38.1 mm [1.50 inches] Width
- 115 mm [4.53 inches] Height
Weight: 0.45 kg [1.0 lbs.]
Boxed Weight: 0.90 kg [2.0 lbs.]
Compliance: CE; EMC Directive – Class A EN 55032 & EN 55024, LV Safety Directive – EN 60950-1, RoHS Compliant, FCC; Part 15 Class A, Industry Canada; ICES-3 Class A, IEEE 802.3 Compliant
Warranty: 2 Years Limited
Part Number: 011446
