Description

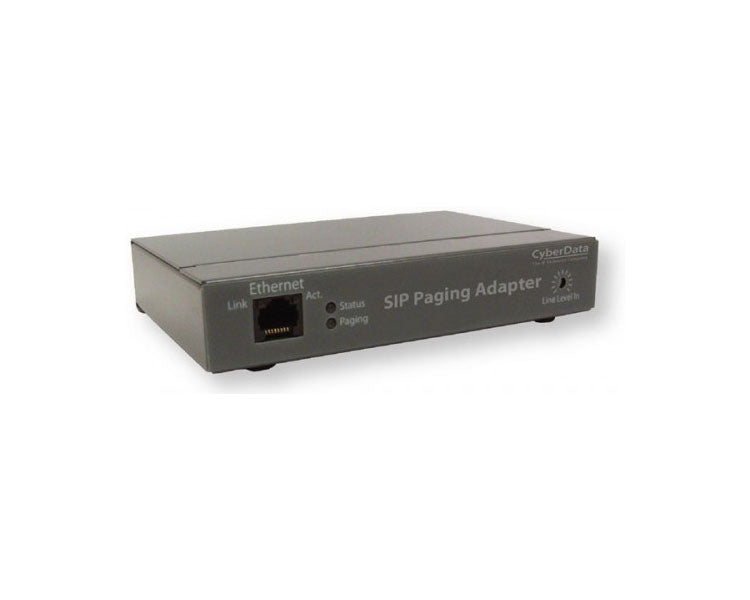

CyberData SIP Paging Adapter 011233
The CyberData SIP Paging Adapter is a VoIP endpoint that interfaces analog paging systems with SIP and Multicast-based audio sources. The SPA (SIP Paging Adapter) can be configured to support two separate SIP extensions.
CyberData SIP Paging Adapter Key Features
Two SIP extensions
Page to Polycom phones
Voice prompt Pass code
User uploadable Page messages
HTTPS status and command interface
10 channel prioritized Multicast ports
HTTPS Web Interface and setup
Built-in diagnostics
SIP extension one passes audio through to the analog output spoken from the caller’s handset. When called, SIP extension two plays a bell audio that can be used as a night ringer when configured in a night ring group. The SPA supports up to 9 user-loadable messages that can be played by a DTMF command. The SPA supports a line-In input for playing music on hold.
During a page or a stored audio file message, this input is muted with its output restored once the page has stopped.
Messages can be played either:
SIP to Analog
Line-in to Analog
Multicast to analog
HTTPS command interface
CyberData SIP Paging Adapter 011233 Additional Features
10k Ohm input for MOH
600 Ohm Balanced audio out
Unbalanced Line-Out
Remote amp fault sensor
DTMF and programmatic controlled Relay
Delayed page support
DTMF pass-through
Cisco SRST
10/100 802.3af PoE
CyberData SIP Paging Adapter 011233 Diagrams
CyberData SIP Paging Adapter 011233 Diagrams
Technical Specifications of CyberData SIP Paging Adapter 011233
General
Protocol: SIP RFC 3261 Compatible
Ethernet I/F: 10/100 Mbps
Power Input: PoE 802.3af or 48VDC
Operating Temperature: -30 to 55 C (-22 to 131 F)
Payload Types: G711
Regulatory Compliance: FCC Class A, UL 60950
Page Port Output: Balanced 600 Ohm 10VPP
Line In:
Input Signal Amplitudes: 2.0 VPP maximum
Input Impedance: 10k Ohm
Line Out:
Output Signal Amplitudes: 2.0 VPP maximum
Output Level: +2dBm nominal
Total Harmonic Distortion: 0.5% maximum
Output Impedance: 10k Ohm
Dimensions: 6.11"L x 4.05"W x 1.15"H
Warranty: 2 years limited
Boxed Weight: 1.8 lbs.
The CyberData SIP Paging Adapter is a VoIP endpoint that interfaces analog paging systems with SIP and Multicast-based audio sources. The SPA (SIP Paging Adapter) can be configured to support two separate SIP extensions.
CyberData SIP Paging Adapter Key Features
Two SIP extensions
Page to Polycom phones
Voice prompt Pass code
User uploadable Page messages
HTTPS status and command interface
10 channel prioritized Multicast ports
HTTPS Web Interface and setup
Built-in diagnostics
SIP extension one passes audio through to the analog output spoken from the caller’s handset. When called, SIP extension two plays a bell audio that can be used as a night ringer when configured in a night ring group. The SPA supports up to 9 user-loadable messages that can be played by a DTMF command. The SPA supports a line-In input for playing music on hold.
During a page or a stored audio file message, this input is muted with its output restored once the page has stopped.
Messages can be played either:
SIP to Analog
Line-in to Analog
Multicast to analog
HTTPS command interface
CyberData SIP Paging Adapter 011233 Additional Features
10k Ohm input for MOH
600 Ohm Balanced audio out
Unbalanced Line-Out
Remote amp fault sensor
DTMF and programmatic controlled Relay
Delayed page support
DTMF pass-through
Cisco SRST
10/100 802.3af PoE
CyberData SIP Paging Adapter 011233 Diagrams
CyberData SIP Paging Adapter 011233 Diagrams
Technical Specifications of CyberData SIP Paging Adapter 011233
General
Protocol: SIP RFC 3261 Compatible
Ethernet I/F: 10/100 Mbps
Power Input: PoE 802.3af or 48VDC
Operating Temperature: -30 to 55 C (-22 to 131 F)
Payload Types: G711
Regulatory Compliance: FCC Class A, UL 60950
Page Port Output: Balanced 600 Ohm 10VPP
Line In:
Input Signal Amplitudes: 2.0 VPP maximum
Input Impedance: 10k Ohm
Line Out:
Output Signal Amplitudes: 2.0 VPP maximum
Output Level: +2dBm nominal
Total Harmonic Distortion: 0.5% maximum
Output Impedance: 10k Ohm
Dimensions: 6.11"L x 4.05"W x 1.15"H
Warranty: 2 years limited
Boxed Weight: 1.8 lbs.
Download
Download File
CyberData SIP Paging Adapter (011233)
£526.44
