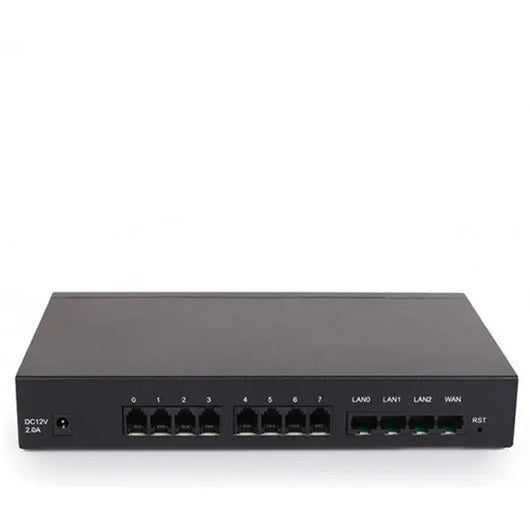

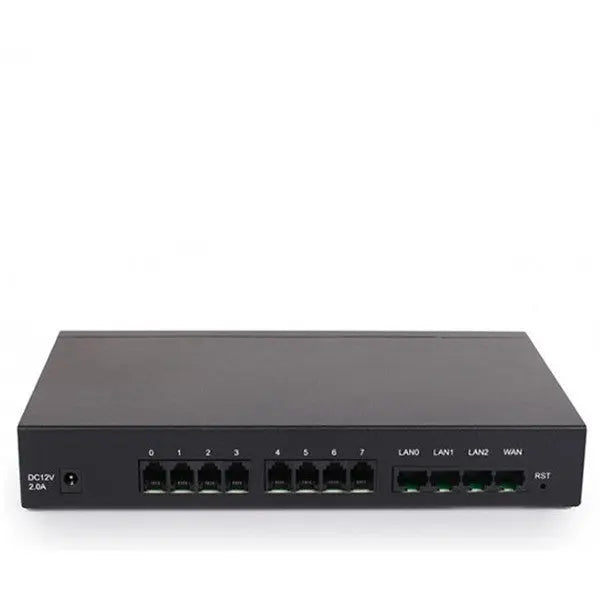

Dinstar DAG1000-8S 8*FXS Gateway (DAG1000-8S)

£186.60

The Dinstar DAG1000‑8S FXS Gateway (8× FXS) is a high‑density gateway with 8 analog FXS ports, bridging legacy phones and fax machines to VoIP systems. It offers reliable, scalable, and secure voice communication for enterprise-grade deployments

Add to WishlistCompare

apple paygoogle payjcbmasterpaypalvisa
Ask a Question
Vendor: Dinstar
SKU: DAG1000-8S
Availability: In Stock Pre order Out of stock
Description

Dinstar DAG1000-8S 8*FXS Gateway (DAG1000-8S)

DAG1000-8S is a multi-functional Analog VoIP Gateway offering seamless connectivity between IP-based telephony networks and legacy telephones (POTS), fax machines and PBX systems. The device offers 8 FXS ports, fax over IP and flexible dial plans. It is ideally suited for small and medium businesses, call centers and multi-location environments that need VoIP services.

Dinstar DAG1000-8S Key Features

    • Supports SIP/MGCP
    • Primary/Backup SIP Servers
    • Flexible Routing and Manipulation
    • Supports Modem/POS
    • Elastix/Broadsoft Certification
    • Supports IPv4 and IPv6
    • Data/ Voice/ Management VLAN
    • Build-in Firewall and Access Rules
    • SNMP/TR069/Provision
    • Cloud-based Management System and Bandwidth Optimization
      Dinstar DAG1000-8S - Technical Specifications

      Key Features

      • Fax over IP (T.38 and Pass-Through), Support IPv4 and IPv6 , TR069 and SNMP, Elastix/Broadsoft Certification, Multiple codecs: G.711A/U, G.723.1, G.729A/B etc, Fully compatible with leading IMS/NGN, SIP based IP telephony system

      Interfaces

        • Telephone Interfaces: 8 FXO, RJ11
        • Ethernet Interfaces: 1* WAN, 3* LAN, 10/100Mbps, RJ-45

          Voice & Fax

          • G.711A/U law, G.723.1, G.729A/B, • Silence Suppression • Comfort Noise Generation(CNG) • Voice Activity Detection(VAD) • Echo Cancellation(G.168), with up to 128ms • Adaptive (Dynamic) Jitter Buffer • Programmable Gain Control • T.38/Pass-through • Modem/POS • DTMF mode: Signal/RFC2833/INBAND • VLAN 802.1P/802.1Q • Layer3 QoS and DiffServ

          FXO

          • Connector: RJ11 • Dial Mode: DTMF/Pulse Dialing • Caller ID: FSK, DTMF • Polarity Reversal • Answer Delay • Busy Tone Detection • No Current Detection

          VoIP

          • Protocol: SIP v2.0 (UDP/TCP), RFC3261 SDP, RTP(RFC2833), RFC3262, 3263, 3264, 3265, 3515, 2976, 3311 • RTP/RTCP, RFC2198, 1889 • RFC4028 Session Timer • RFC3266 IPv6 in SDP • RFC2806 TEL URI • RFC3581 NAT, rport • Primary/Backup SIP Server • Outbound Proxy • DNS SRV/ A Query/NATPR Query • SIP Trunk • Early Media/Early Answer • NAT: STUN, Static/ Dynamic NAT.

          Network Features

          • Static/Dynamic IP • PPPoE • DHCP Client • IPv4/IPv6 • TCP, UDP,TFTP, FTP, ARP, RARP, Ping, NTP, SNTP, HTTP/ HTTPS, DNS • Ping / Tracert • DHCP Option 66, 120, 121

          Maintenance

          • • SNMP v1/ v2/ v3 • TR069 • Auto Provisioning • Web/Telnet • Configuration Backup/Restore • Firmware Upgrade via Web • CDR • Syslog • Network Capture • NTP/Daylight Saving Time • IVR local Maintenance • Cloud-based Management

          Power

          • 20W

          Environmental

          • Operating Temperature: 0 ℃ ~ 45 ℃ Storage. Temperature: -20 ℃ ~80 ℃. Humidity: 10%-90% (Non-Condensing)

          Physical

          • Dimension: 242*152*40mm (LxWxH), Unit Weight- 1 Kg

          Compliance

          • Compliance: CE, FCC
          Download
          Download File
