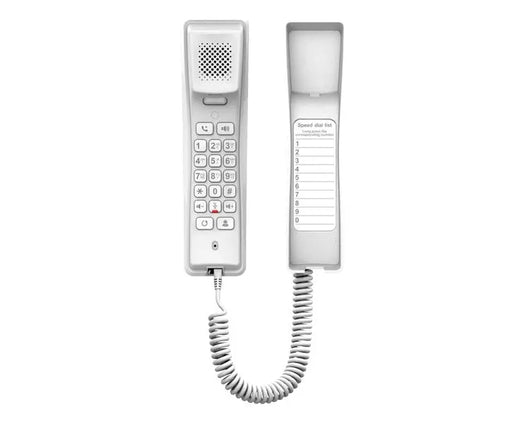

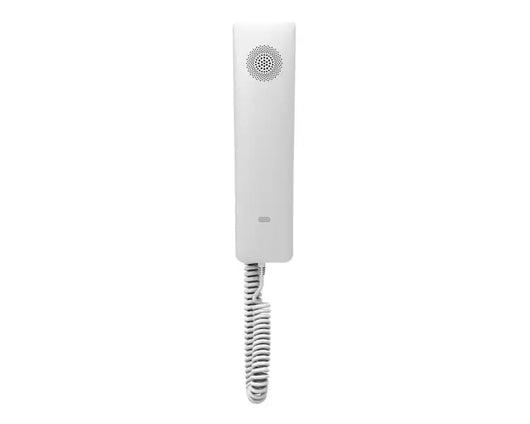

Fanvil H2U Compact IP Phone - White

£39.48

The Fanvil H2U Compact IP Phone - White is a sleek, cost-effective VoIP phone designed specifically for environments where space is limited, and simplicity is key. This white version offers all the same great features as the standard Fanvil H2U, but with a clean, modern aesthetic that can easily fit into a variety of office settings or hospitality environments. Its compact size, reliable performance, and user-friendly features make it an excellent choice for users who need essential communication tools at an affordable price

Conferencing Call: 3 Way

3 Way
Add to WishlistCompare

apple paygoogle payjcbmasterpaypalvisa
Ask a Question
Vendor: Fanvil
SKU: H2U White
Availability: In Stock Pre order Out of stock
Description

Fanvil H2U Datasheet (PDF)

Fanvil H2U Compact IP Phone - White

The Fanvil H2UW possesses brand new features including 2 SIP lines, 10 speed dial keys, 1 programmable DSS key and a HD speaker on handset. Supporting desktop and wall-mounted mode, PoE and power supply charging mode, Fanvil H2UW is more than a hotel phone and also can be applied in multiple scenarios, such as school, hospital, supermarket and residence.

Fanvil H2UW Key Features

  • 2 SIP Lines
  • HD Audio with wideband Codec: G.722, Opus
  • 10 speed dial keys, 1 programmable DSS Key
  • 3-way Conference
  • Desk/wall-mounted mode
  • Handset / Hands-free mode
  • 10/100 Mbps
  • PoE/Power adaptor
  • Exquisite and fashionable product appearance
  • Easy installation and configuration
  • Economical and Environmental friendly product concepts
  • Can store 10 shortcut numbers, long press to achieve speed dial
  • Adaptive 10/100Mbps network port, support POE power supply
  • Compatible with major platforms: Asterisk, Broadsoft, 3CX, Metaswitch, Elastix, Avaya etc.
Considerate Design for Varied Scenarios
Tiny and fully-featured, Fanvil H2UW supports PoE/power supply charging as well as desktop/wall-mounted mode,
which can be applied in different scenarios flexibly.

Varied Scenarios

Customisable Keys, One-click Communication
10 speed dial keys to customise different services, 1 programmable DSS keys for different functions and speed dial list.

Support SIP Hotspot
Fanvil H2UW IP phones can share one number from the server. When a call comes in, each extension phone will ring together to make sure you won’t miss a call.

SIP hotspot
Fanvil H2UW - Technical Specifications

Generic

  • 2 SIP Lines
  • HD Voice
  • PoE Enabled
  • Handset / Hands-free mode
  • Intelligent DSS Keys
  • Desktop/wall mount mode
  • Optional External Power Supply

Phone Functions

  • Call logs (In/Out/Missed, Max support 600 records in the web)
  • Programmable DSS
  • Action URL / Active URI
  • Web dial

Call Functions

  • Call out / Answer
  • Mute / Unmute
  • Hands-free / Cancel hands-free
  • Call Hold / Resume
  • Speed Dial
  • Redial
  • Auto-Answering
  • 3-way Conference
  • Hot Line
  • Hot desking

Audio

  • Narrowband Codec: G.711a/u, G.726, G.729A, iLBC
  • Wideband Codec: G.722, Opus
  • Acoustic Echo Canceller (AEC)
  • Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR)
  • Packet Loss Concealment (PLC)
  • Dynamic Adaptive Jitter Buffer
  • DTMF: In-band, Out-of-Band – DTMF-Relay(RFC2833) / SIP INFO

Network

  • 10/100 Mbps Ethernet
  • IP Mode:IPv4/IPv6/IPv4&IPv6
  • IP Configuration: Static / DHCP / PPPoE
  • Network Access Control: 802.1x
  • VPN: L2TP / OpenVPN
  • VLAN
  • QoS
  • RTCP-XR (RFC3611), VQ-RTCPXR(RFC6035)

Protocols

  • SIP2.0 over UDP/TCP/TLS
  • RTP/RTCP/SRTP
  • STUN
  • DHCP
  • IPv6
  • LLDP
  • PPPoE
  • 802.1x
  • L2TP
  • OpenVPN
  • SNTP
  • FTP/TFTP
  • HTTP/HTTPS
  • TR-069

Deployment & Management

  • Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR-069
  • Web Management Portal
  • Web-based Packet Dump
  • Configuration Export / Import
  • Firmware Upgrade
  • Syslog

Physical Specifications

  • Keypad: 19 keys, including:
    - 12 Standard Phone Digits keys(0-9: Speed dial configuration on webpage)
    - 3 Function keys (Hands-free , Redial ,Hold)
    - 3 Volume Control keys, Up/Down/Mute(with red colour LED)
    - 1 DSS key
  • Status indicator (two-colour LED) x1
  • HD Handset (RJ11) x1
  • Standard RJ11 Handset Cord x1
  • RJ11 Port x1
  • RJ45 Port x1
  • Power: 5V/2A or PoE
  • Power Consumption(PoE): 1.58W~3.47W
  • Power Consumption(Adapter): 0.87~2.23W
  • Working Temperature: 0~45°C
  • Working Humidity: 10~90%
  • Installation: Desktop/wall mount
  • Colour: Black/white
  • Device Dimensions: 55.8 x 215 x 57.8mm
  • Gift Box Dimensions: 224 x 75 x 62 mm
  • Outer CTN Dimensions: 335 x 323 x 243 mm(20 PCS)
